WORKING WITH THE MAGNET
1
3
79C877F9
SYSTEM FUNCTION
MAGNET MODE SWITCH
Press the magnet mode switch (1) on the right console
to enter the magnet mode.
In the magnet mode, the engine speed does not drop
below the minimum speed (*) in the magnet mode and
magnet operation is enabled.
If the machine enters the magnet mode when the
engine speed is below the minimum speed in the
magnet mode, the engine speed will automatically rise
to the minimum speed in the magnet mode.
CHAPTER 5 - OPERATING INSTRUCTIONS
2

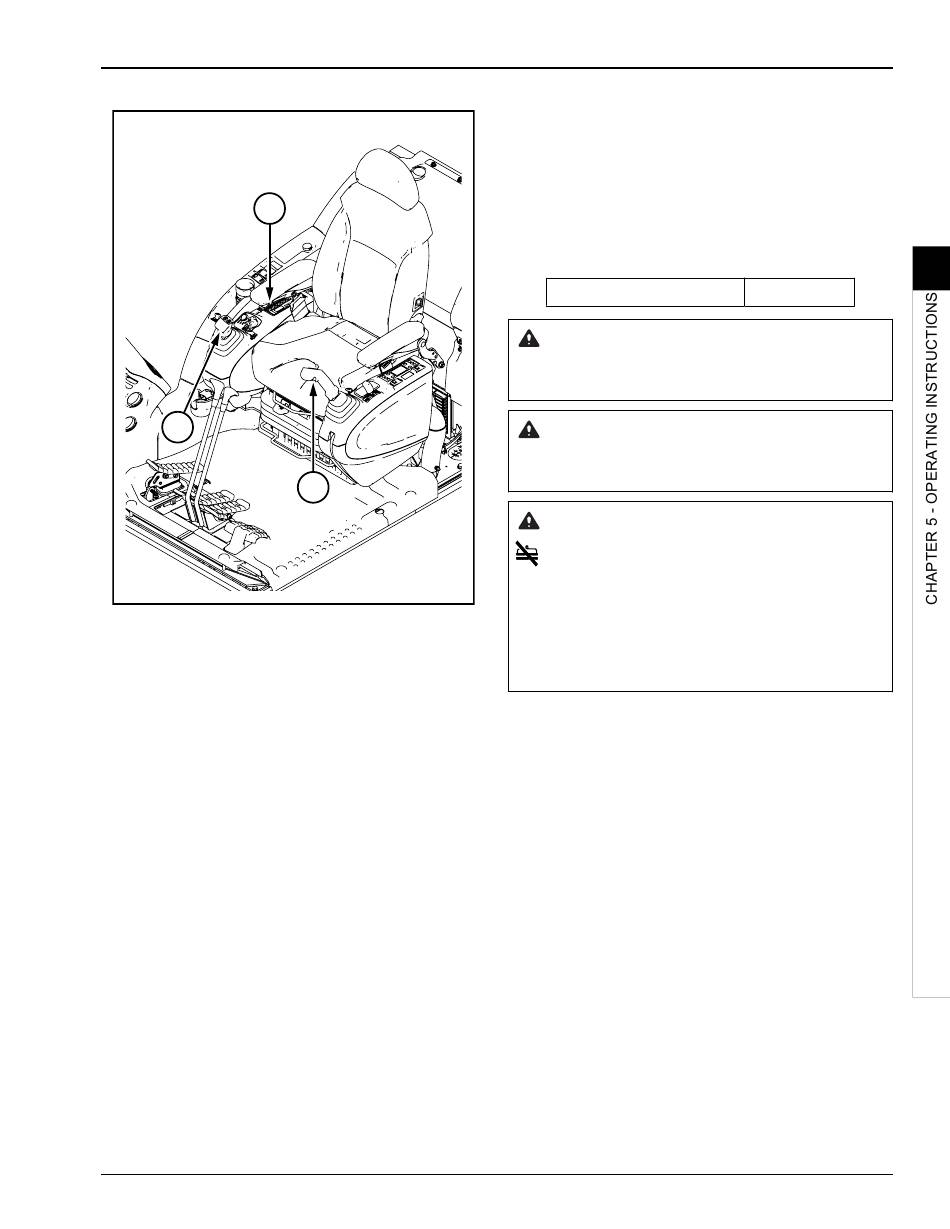

Figure 63
5-41
ADSORPTION/RELEASE SWTICHES
The switches on the right and left operation levers
function as adsorption/release switches in the magnet
mode.
Press the right operation switch (3) to adsorb a load,
and press the left operation switch (2) to release the
load and cut off the power.
* Minimum speed in the magnet mode: Minimum
engine speed needed to generate power
250X4-MH / 250X4-SL
DANGER
Turn off the engine while a load is adsorbed, and the
lifted load will drop.
DANGER
Press the emergency stop switch while a load is
adsorbed, and the lifted load will drop.
DANGER
This icon will be displayed when a serious engine
trouble occurs in the magnet mode. The audible alarm
sound loudly. Immediately lower the lifted load on a
safe place and switch off the magnet mode switch.
Check the message simultaneously displayed with this
icon for the details of the trouble.
-1
1500 min
