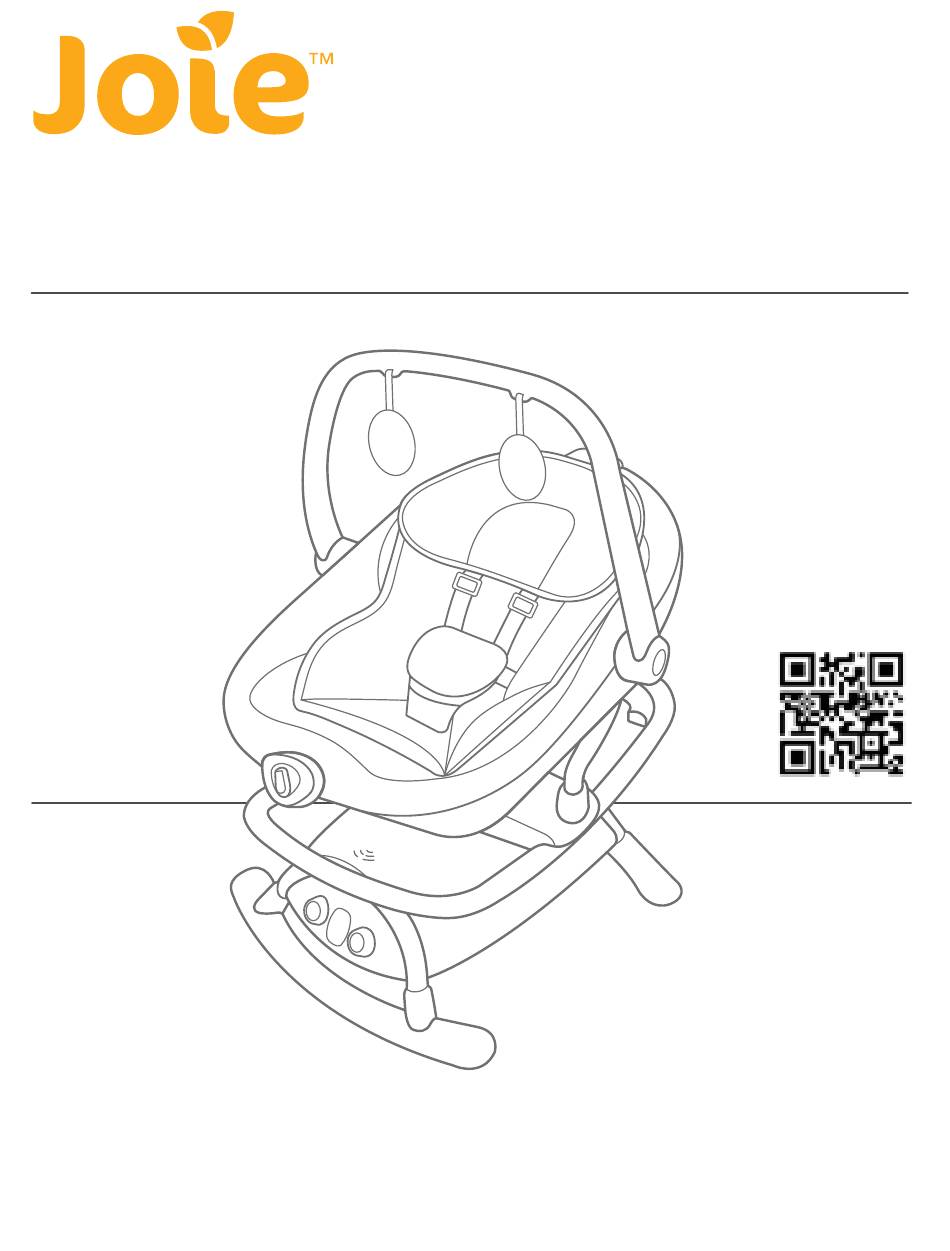

cinnamon
™
2-in-1 glider and rocker
Glider – Weight: birth up to 25 lb. (11.5 kg)
Instruction Manual
Height: birth up to 30 in. (76 cm)
Rocker – Weight: birth up to 20 lb. (9 kg)
Height: birth up to 27 in. (69 cm)
product
guide videos
IMPORTANT!
Read the instructions in this manual before use of the product.
Keep this manual for future use.
Advertisement
Related Manuals for Joie cinnamon
Summary of Contents for Joie cinnamon
- Page 1 ™ 2-in-1 glider and rocker Glider – Weight: birth up to 25 lb. (11.5 kg) Instruction Manual Height: birth up to 30 in. (76 cm) Rocker – Weight: birth up to 20 lb. (9 kg) Height: birth up to 27 in. (69 cm)
- Page 2 Glider – Weight: birth up to 25 lb. (11.5 kg) Contact: Height: birth up to 30 in. (76 cm) Joie Baby USA Consumer Service Contact Info. Rocker – Weight: birth up to 20 lb. (9 kg) Address: 70 Thousand Oaks Blvd., Morgantown, PA 19543 Height: birth up to 27 in.
- Page 3 WARNING WARNING Failure to follow these warnings and instructions Failure to follow these warnings and instructions could result in serious injury or death. could result in serious injury or death. FALL AND • When using as a rocker, stop using the product when child begins trying to sit up, reaches 20 STRANGULATION lb.
- Page 4 WARNING WARNING Failure to follow these warnings and instructions Failure to follow these warnings and instructions could result in serious injury or death. could result in serious injury or death. • Children have STRANGLED in loose or partially • Suffocation Hazard: Young infants have limited buckled harness straps.
- Page 5 CAUTION CAUTION To prevent battery leaks, which can burn the skin To prevent battery leaks, which can burn the skin and eyes: and eyes: Keep the batteries out of children’s reach. Non-rechargeable batteries are not to be • • recharged. •...
- Page 6 CAUTION CAUTION Changes or modifications to this unit not However, there is no guarantee that interference expressly approved by the party responsible will not occur in a particular installation. If this for compliance could void the user authority to equipment does cause harmful interference operate the equipment.
- Page 7 Parts List: Parts List: Before Assembly Please make sure there are no missing parts. Please contact Joie Consumer Service if anything is missing. Head Support Infant Insert Toys Seat Pad Rock-Stop Foot Rocker Base Glider Base AC Adapter After Assembly...
- Page 8 Assembling Glider & Rocker: Before Any Assembly: On the upper frame, find the handle adjustment buttons at base of handle (A). While pushing both buttons in, rotate handle into fully upright position (B). Assembling the Frame: Insert support bar into smaller, lower holes of the upper frame.
- Page 9 Assembling the Rocker: Remove rocker base from glider base. Insert rocker legs into rocker base. Ensure that notches on legs align with notches on base. A “clicking” sound will confirm that the rocker legs are properly locked in place. Insert the previously assembled upper and lower frames into the rocker legs.
- Page 10 Attaching the Seat Pad: Take the seat pad and thread the shoulder harness straps through the shoulder harness slots. Wrap the top of the seat pad around the top of the upper frame. Starting at the vibration module, wrap the bottom of the seat pad around the bottom of the lower frame.
- Page 11 Securing the Seat Pad: To attach the lower straps: Flip the rocker base upside down. Locate the two lower straps without snaps hanging from the underside of the seat pad. Thread the straps all the way through the slots on the rocker base. Pull on the straps to ensure they are securely attached to the rocker base.
- Page 12 Using Buckle: 1 - Release Buckle: Locate the button in the center of the buckle and press it firmly to release the harness straps. 2 - Lock Buckle: Slide the shoulder harness buckle into the lap belt buckle (A). Insert the combined buckles together into the center buckle (B).
- Page 13 Using Waist & Shoulder Harness Straps: IMPORTANT: In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harness straps are at the proper height and length. To adjust the position of the shoulder harness strap, turn the slide adjuster to be level with the harness slot.
- Page 14 Adjusting Recline: Recline can be adjusted to 3 positions. Squeeze recline adjustment button on the back of seat and push down or pull up to adjust the seat back to the desired recline position. IMPORTANT: Ensure that the seat is locked into one of the 3 recline positions.
- Page 15 Using Rock-Stop Foot: Locate rock-stop foot on back of rocker base. Rotate it fully down. This will keep the rocker steady. To allow rocking, rotate rock-stop foot upward fully. Using Vibration: Battery compartment is located behind the vibration module, under the seat pad. Remove battery cover using a flat-head screwdriver.
- Page 16 Using Control Panel: Inserting Batteries: Battery compartment is located on the underside of the glider base. Remove battery cover using a flat-head screwdriver. Insert four “D” alkaline, disposable, 1.5V batteries. NEVER mix battery types. Batteries are not included. Replace battery cover. Control Panel Icons: Main Power OFF/ON Glider Speed UP/DOWN...
- Page 17 Attaching Rocker: Place rocker onto glider mount. Rocker can be placed and used in 4 different positions as a glider.
- Page 18 Using AC Adapter: Find AC adapter jack on rear of glider base. Plug in small end of AC adapter cord. Plug the other end into your home’s wall outlet. IMPORTANT: Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off. DO NOT place the product near water or moisture.
- Page 19 Using Toys: To attach toys, thread the toy straps through the slots at the top of the handle. Using Infant Insert: To release the buckle, locate the button in the center of the buckle and press it firmly to release the harness straps.
- Page 20 Using Head Support: To release buckle, locate the button in the center of the buckle and press it firmly to release the harness straps. To attach head support, thread the shoulder harness straps through the loops on the back. Removing Softgoods: To release the buckle, locate the button in the center of the buckle and press it firmly to release the harness straps.
- Page 21 Removing the Seat Pad: Thread lower straps back through their slots in rocker base. Unhook seat pad from support bar. Flip seat over. First, remove seat pad from around vibration module. Then, tug back of seat pad to slowly release it from the lower frame.
- Page 22 It may cause damage to the product. DO NOT use bleach. Maintenance: Worn parts: Replace any worn or damaged parts. Use only Joie replacement parts. Torn material or stitching: Repair or replace torn fabric or stitching. Use only Joie replacement fabrics.
- Page 23 IM-001509C...
