Summary of Contents for Fox 883-26-109

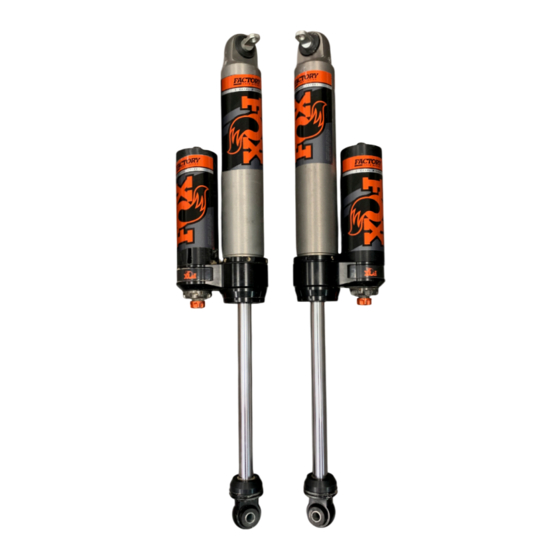

- Page 1 DIRECT-REPLACEMENT INSTALLATION GUIDE JEEP JK (2011-2018) 883-26-109 - Kit: 11-18 Jeep JK, Front, Internal Bypass, 2.5 FRS, R/R, 2.5-4” Lift, DSC 883-26-110 - Kit: 11-18 Jeep JK, Rear, Internal Bypass, 2.5 FRS, R/R, 2.5-4” Lift, DSC 605-01-322 REV 1...
- Page 2 To achieve the best performance and product longevity, periodic service and maintenance is required. Please refer to the Service and Upgrades section for more information. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 3 018-05-071 WASHER: 1/2” 233-00-371 SPACER: 1.5” *Hardware Reference is used throughout the installation manual to provide notation of the supplied kit. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 4 SERIOUS INJURY or DEATH. Do not attempt to modify, puncture or incinerate a FOX direct-replacement shock absorber. • Any attempt to misuse, misapply, modify, or tamper with any FOX product voids any warranty and may result in SERIOUS INJURY or DEATH.
- Page 5 Group C screws. Drill the remaining two pilot holes and install two Group C screws (Figure 1). Figure 1: Install the supplied reservoir brackets, Group A and Group B. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 6 6. Use a 3/8” bit to drill a hole on the coil spring perch (Figure 3). Figure 3: Drill a hole on the coil perch. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 7 Figure 4: Torque to 35 ft-lbs. 8. Connect the FOX front shock to the upper vehicle mount with a stem bushing and washer on the bottom and top. Hand tighten the nut to allow the shock to be maneuvered into position (Figure 5).
- Page 8 9. Connect the FOX front shock to the Group E or F bracket using the Group J hardwear. Install the Group J1 spacer in the stock mount location. 10. Torque the upper and lower front shock hardware to factory specifications (Figure 6).
- Page 9 14. For maximum performance, FOX recommends your new Internal Bypass Shocks show between 4.5” to 6.0” of the shaft at ride height. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 10 2. Remove rear wheels from vehicle. 3. Identify which FOX shock goes on the correct side (Figure 9). Figure 9: Left side and right side shocks. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 11 4. Remove rear stock shocks. 5. Orient the FOX shock with the reservoir pointing toward the rear of the vehicle (Figure 10 & 11). Figure 10: Right side orientation. Figure 11: Right side orientation. 6. Reuse the factory bolts and hand tighten the upper FOX shock (Figure 12).
- Page 12 11. For maximum performance, FOX recommends your new Internal Bypass Shocks show between 4.7” to 6.2” of the shaft at ride height. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 13 FOX FACTORY DUAL SPEED COMPRESSION (DSC) ADJUSTER SETTINGS DSC HIGH SPEED 12 CLICKS DSC LOW SPEED 10 CLICKS A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
- Page 14 FOX. This warranty is only applicable to FOX suspensions purchased new from an authorized FOX source and is made only to the original retail owner of the new FOX suspension product and is not transferable to subsequent owners. This warranty is void if the FOX suspension product is subjected to abuse, neglect, improper or unauthorized repair, improper or unauthorized service or maintenance, alteration, modification, accident or other abnormal, excessive, or improper use.
- Page 15 YOU SET UP YOUR SERVICE AND/OR SERVICE MENUS & PRICING UPGRADES YOU WILL RECEIVE A VISIT RIDEFOX.COM/ORSERVICE RETURN AUTHORIZATION NUMBER SHIPPING INSTRUCTIONS. A DIVISION OF FOX FACTORY INC. // 1.800.FOX.SHOX // RIDEFOX.COM // 6634 HWY 53. BRASELTON, GA 30517 USA...
