Summary of Contents for Fox FACTORY RACE 2.0 Series

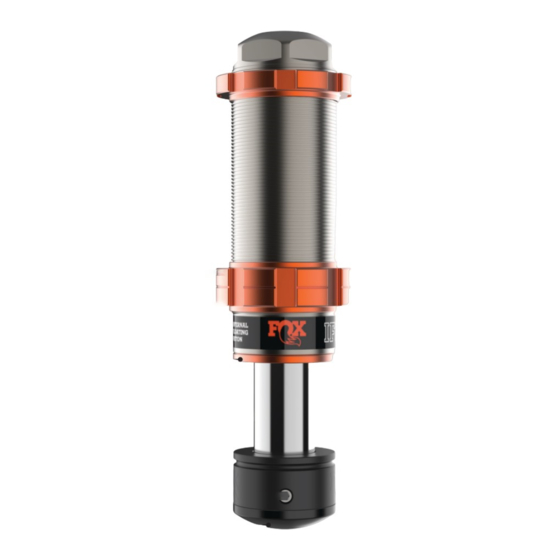

- Page 1 BUMP STOP KIT INSTALLATION GUIDE JEEP JL (2018-ON) JEEP JT (2020-ON) BUMP STOP 2.0 SERIES 883-02-167 - Kit: 18-ON Jeep JL & 20-On Jeep Gladiator Front, Gen2, Bump Stop 2.0 Series, IFP, 2.00” Travel, 10.00” EXT 605-01-278 REV B...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION SHOCK DIAGRAM SAFETY INSTRUCTIONS INSTALLATION GUIDELINES BUMP STOP INSTALLATION WARRANTY INFORMATION SHOCKS NEED LOVE TOO... -
Page 3: Introduction
FOX recommends that you become completely familiar with the handling characteristics of your modified vehicle before operating it under rigorous conditions, helping to avoid potential rollover situations and other loss of control events. FOX further recommends that you use appropriate protective equipment at all times when operating your vehicle. -
Page 4: Shock Diagram
SHOCK DIAGRAM BUMP STOP PART NO. NAME PART NO. NAME Lock ring Shock body Shaft Set screw Bearing cap Bumper 605-01-278... -
Page 5: Safety Instructions
FOX direct-replacement shocks are gas-charged and are highly pressurized. Placing shocks in a vise or clamp, applying heat, or attempting to open or service the shock without the proper tools and training can result in SERIOUS INJURY or DEATH. Do not attempt to modify, puncture or incinerate a FOX direct-replacement shock absorber. -
Page 6: Installation Guidelines
• DO NOT install any FOX product without the necessary special tools, expertise and chassis lift or you will subject yourself to the risk of SERIOUS INJURY or DEATH. If you elect to not use a chassis lift... -
Page 7: Bump Stop Installation
5. Remove factory bump stop by prying it free from the bump stop holder. FOX BUMP STOP PREPARATION 6. Use painters tape and mark the cut line 2.75” above the bottom of the OEM bump stop holder (Fig. - Page 8 Cut below the tape line. (Fig 2a).Make sure the cut surface is square and free of any sharp edges or burrs. An uneven surface may cause issues when the new FOX bump stop is secured. NOTICE: Some applications may require additional cutting and trimming to attain proper jounce tube length.
- Page 9 11. Use the 3 supplied lock rings to install the bump stop. The orange bump stop bearing cap must protrude at least 1.75” from the cut line. Ensure the 1.75” lip on the lock ring goes into the OEM bump stop tube (Fig.
-
Page 10: Warranty Information
Should it be determined by FOX in its sole and final discretion, that a FOX suspension product is covered by this warranty, it will be repaired or replaced, by a comparable model, at FOX’s sole option, which will be conclusive and binding. THIS IS THE EXCLUSIVE REMEDY UNDER THIS WARRANTY. ANY AND ALL OTHER REMEDIES AND DAMAGES THAT MAY OTHERWISE BE APPLICABLE ARE EXCLUDED, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR PUNITIVE DAMAGES. -
Page 11: Shocks Need Love Too
NEED LOVE TOO FOX SERVICE AND UPGRADES HAVE YOUR FOX SHOCKS SERVICED BY FOX TECHNICIANS. CALL OUR OFF-ROAD AND TRUCK SERVICE CENTER AT 619.768.1800 TO GO OVER THE SERVICE AND UPGRADE OPTIONS AVAILABLE FOR YOUR PROD- UCT. ONCE YOU’VE SETUP YOUR SERVICE AND/OR UPGRADES YOU WILL RECEIVE A RETURN AUTHORIZATION NUMBER AND SHIPPING INSTRUCTIONS.
