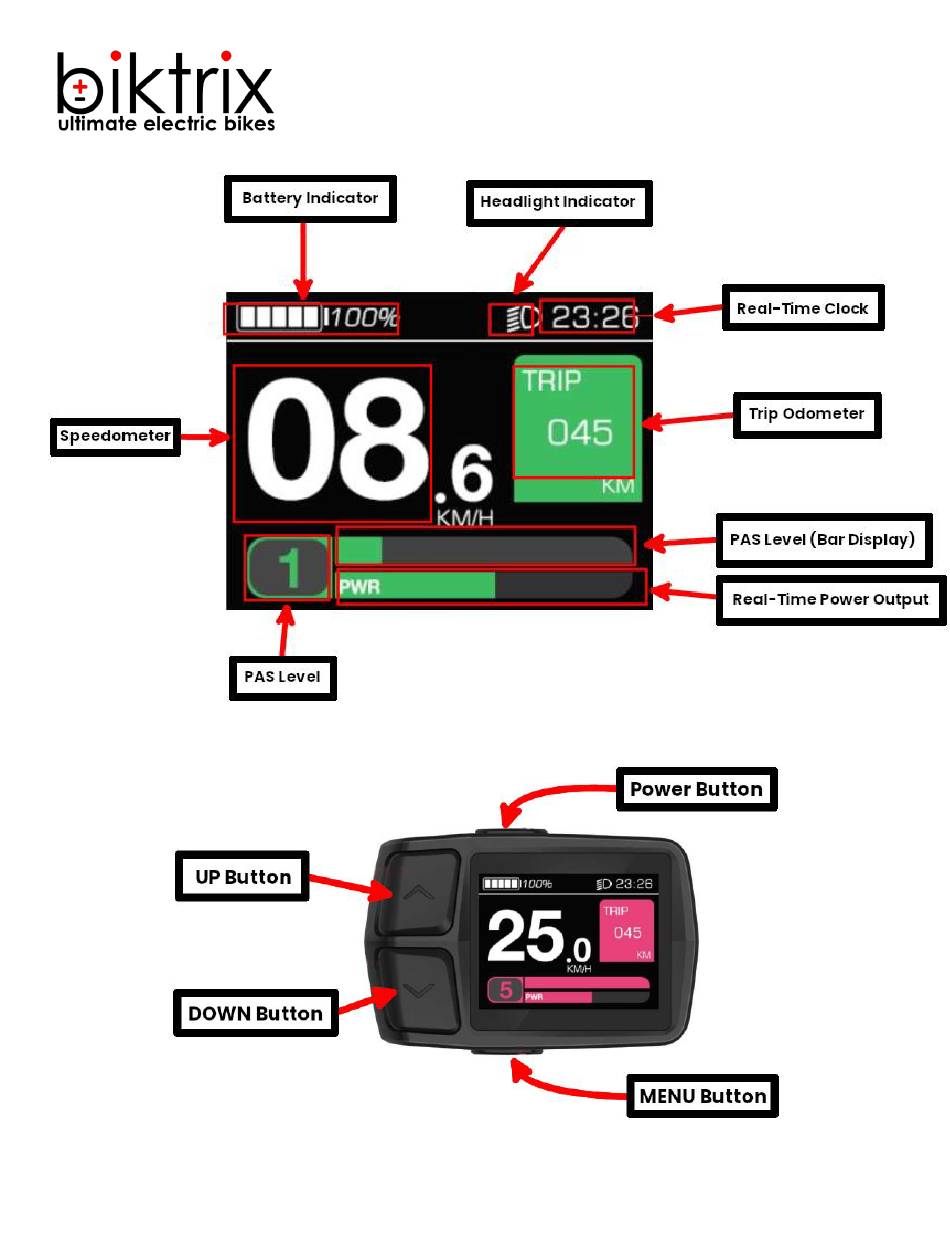

- Page 1 DM07 eBike Display User Guide Biktrix Version Display Interface Control Pad Button Definition...
- Page 2 Normal Operation Power On/Off Press and hold the POWER BUTTON to turn on the bike’s display. This will power up the bike and let you use the electronics such as the motor. To turn off the electronics press and hold the POWER BUTTON again.
- Page 3 Headlight Operation Press and hold the UP Button for ~2 seconds to turn on the headlight. The Headlight Indicator on the display will appear and the light will turn on. To turn off the headlight press and hold the UP Button for ~2 seconds –...
- Page 4 Charge Level Battery Display Indicator 100%-80% 80%-60% 60%-40% 40%-20% 20%-10% 10%-5% 5%-0% - Indicator will also blink Settings Menu Note: This menu can only be entered within 10 seconds of turning on the display. If you have been riding and wish to enter this menu, you will need to power the display off and back on to enter this menu and make any changes.
- Page 5 Basic Settings Menu In this menu you will find basic information to change such as speed and distance units, clock time setting and auto shutoff time. Unit Setting This is used to change the units shown on the display for speed and distance. These can be changed between Metric (km) or Imperial (Miles).
- Page 6 Maintenance Reminder This can be used to display a reminder to perform any routine maintenance such as chain replacement, brake pad cleaning, tire changes, etc. By default, it is set to 5000 – this cannot be changed. Use the UP Button and DOWN Button to select “Off” or to select the maintenance interval alert.
- Page 7 This screen will show information relating to the display such as hardware version and firmware version. Hold the MENU Button to exit this screen. Battery Information This screen will not show any information on Biktrix eBikes. Hold the MENU Button to exit this screen.
- Page 8 Controller Information This screen will not show and information on Biktrix eBikes. Hold the MENU Button to exit this screen. Advanced Settings Menu This menu contains some advanced settings such as wheel size, speed limit and number of PAS Levels.
- Page 9 Speed Limit Setting This will set the speed limit of the motor of the bike. Whatever this value is set to, the motor will not provide any extra assistance above this speed. This can be set between 5km/h and 99km/h. Press the UP Button and DOWN Button to select your desired value.
- Page 10 Battery Temperature Sensor Error Check Battery – stop motor operation until battery cools Motor Controller Sensor Temperature Error Check Motor and Controller Speed Sensor Error Contact Biktrix Support BMS Communication Error Contact Biktrix Support Motor Communications Error Check Motor Controller and Umbilical Connection...
