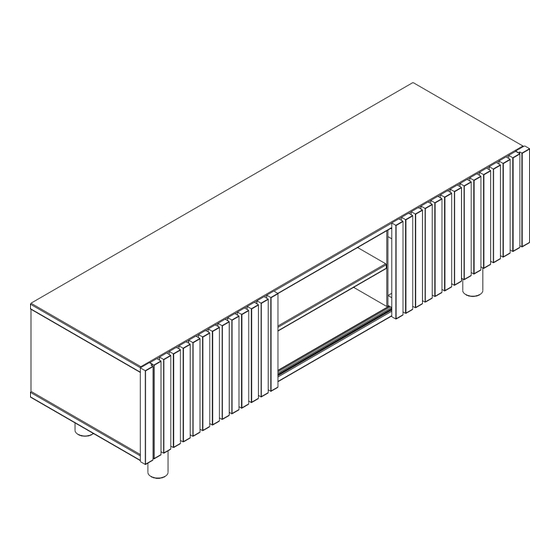

Walker Edison KARM1F Assembly Instruction Manual
  1. Manuals
  2. Brands
  3. Walker Edison Manuals
  4. Indoor Furnishing
  5. KARM1F
  6. Assembly instruction manual

Walker Edison KARM1F Assembly Instruction Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Item #: KARM1F
Assembly Instruction
Revised 09/2022
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KARM1F and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison KARM1F

Summary of Contents for Walker Edison KARM1F

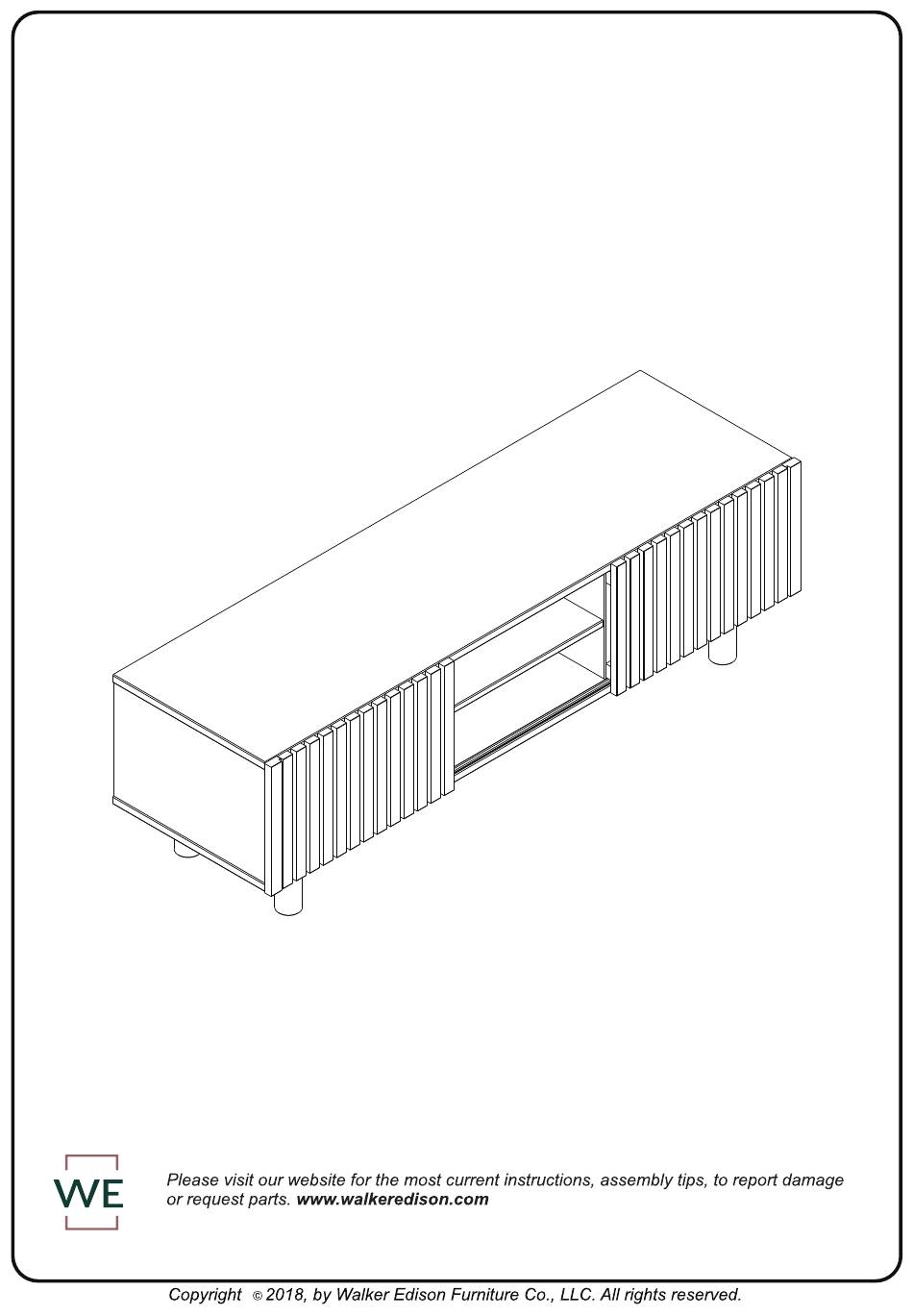

  • Page 1 Item #: KARM1F Assembly Instruction Revised 09/2022...
  • Page 2 A Phillips head screwdriver and a Hammer is required for the assembly of this product.
  • Page 3 Part# Description Top panel 01 pcs Right side panel 01 pcs Left side panel 01 pcs Center panel 02 pcs Base 01 pcs Front side panel 02 pcs Door 02 pcs Feet 04 pcs Shelf 0 pcs Back panel 01 pcs...

  • Page 4: Hardware List

    Hardware List Ø5,5x28mm Cam Bolt 14 pcs Ø14x14mm Cam Lock 14 pcs Ø7,0x50mm Bolt 04 pcs Ø4,0x40mm 10 pcs Ø3,5x16mm 19 pcs 28 pcs Ø8,0x30 mm Plastic Support 12 pcs Wall anchor 01 pcs Hex key 01 pcs Adhesive felt 04 pcs Ø3,5x30mm 01 pcs...
  • Page 5 Step 1 Insert wood dowel ( F ) into parts (2),(3) and (4). (2x) Ø 8,0x30 mm Step 2 Attach minifix Cam Bolt (A) to parts (1) and (6) with the phillips head screwdriver. (2x) 5,5x28 Ø...
  • Page 6 Secure part (1) to parts (2), (3) and (4). Step 3 Insert cam lock (B) into part (2), (3) and (4) with a phillips head screwdriver. PLEASE ASSEMBLE IN A CLEAN SURFACE! Step 4 Secure part (6) to part (2) and (3) with cam lock (B) and phillips head screwdriver. PLEASE ASSEMBLE IN A CLEAN SURFACE!
  • Page 7 Step 5 Join the part (8) to part (5) with bolt (C) and hex key (I). Place the Adhesive felt (J) into parts (8). Ø 7,0x50 mm Adhesive felt Insert part (7) into the top rail of part (1), with the help of one more person Step 6 insert part (5) and fit part (7) into the bottom rail before finishing fitting part (5).
  • Page 8 Step 7 Insert plastic support into part (2), (3) and (4). Step 8 Insert the part (9) above the supports. Step 9 Insert the part (10) and attach with the screw (E) and phillips head screwdriver. 25lbs (11,4Kg) TELEVISION MAXIMUM LOAD 25LBS ACORDING TO UL 1678 PRODUCT WEIGHING 31LBS MAXIMUM KARM1FNPWS...

  • Page 9: Back Panel

    Step 10 WARNING Serious or fatal crushing injuries can occur from tip-over. To help prevent tip-over, install tip restraints per instructions. If using to support a television or monitor:  For use with televisions weighing 25lbs (11Kg) or less and no wider than this product. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury.
