Federal Signal Corporation 450E Manual

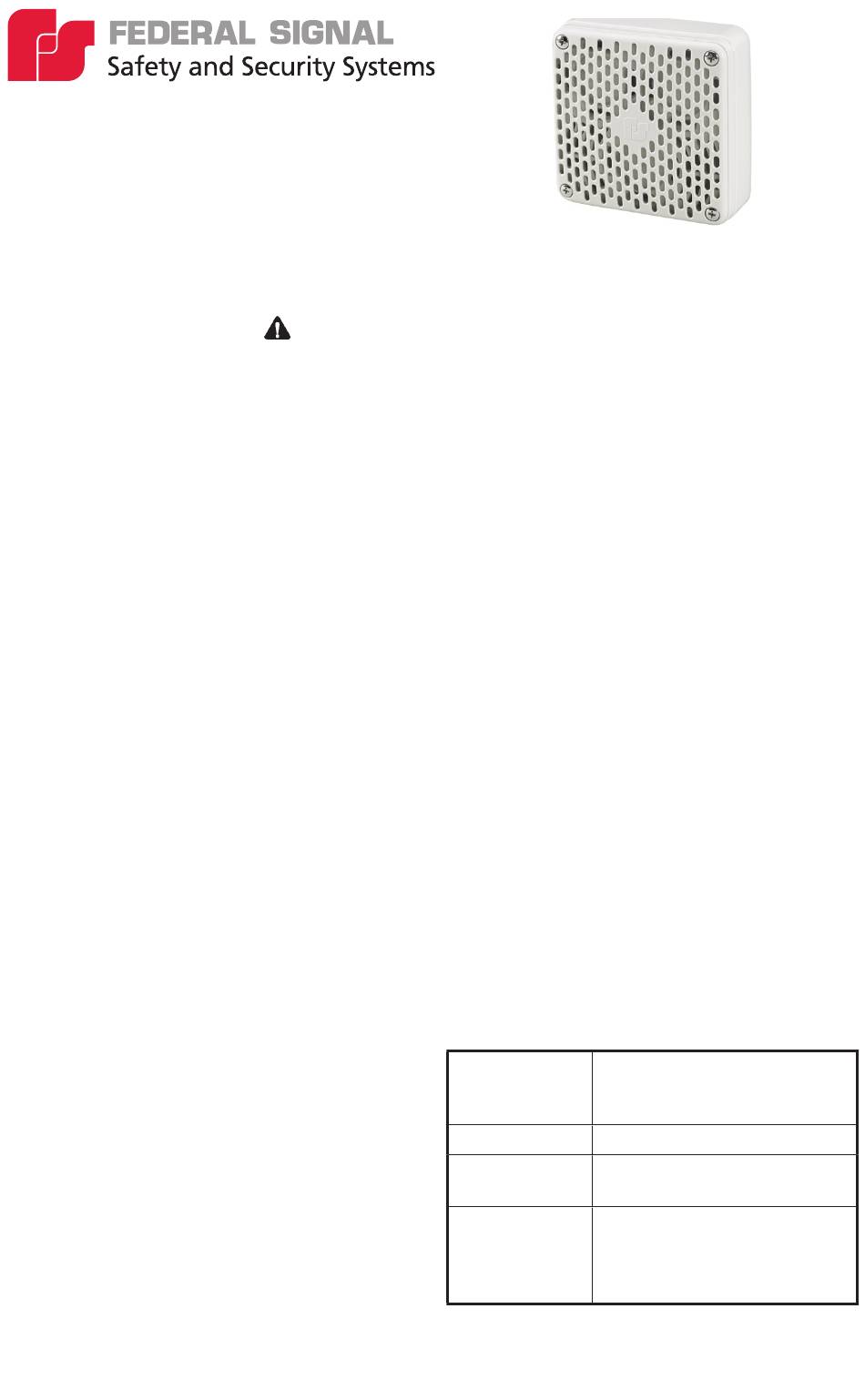

Model 450E
Electric Horn
25500096 Rev A5 1221
Limited Warranty: This product's limited warranty can
be found at www.fedsig.com/SSG-Warranty.
Messages to Installers and Users
should be installed to code by a licensed electrician
and follow all safety instructions. Failure to do so may
result in property damage, serious injury, or death.
The selection of the mounting location for this horn,
its controls, and the routing of the wiring are to be
accomplished under the direction of the Facilities
Engineer and the Safety Engineer. Listed below
are some other important safety instructions and
precautions you should follow:
• Read and understand all instructions before
installing, operating, or maintaining this
equipment.
• Do not connect this unit to the system when
power is on.
• Optimum sound distribution will be severely
reduced if any objects are in front of the horn.
You should ensure that the front of the horn is
clear of any obstructions.
• All effective warning horns produce loud
sounds, which may cause, in certain situations,
permanent hearing loss. The device should be
installed far enough away from potential listeners
to limit their exposure while still maintaining
its effectiveness. The OSHA Code of Federal
Regulations 1910.95 Noise Standard provides
guidelines for permissible noise exposure levels.
• After installation, ensure that all mounting
screws are tightened.
• Establish a procedure to routinely check
the signal system for proper activation and
operation.
• Any maintenance to the unit MUST be performed
by a trained electrician in accordance with NEC
Guidelines and local codes.
• Never alter the unit in any manner.
•
This product
Failure to follow all safety precautions and
instructions may result in property damage, serious
injury, or death.
Unpacking the Device: After unpacking the device,
examine it for damage and verify the parts. If a part
is missing or appears damaged, do not attempt to
install. Contact Federal Signal Customer Support at
+1 708-587-3587 or iordersup@fedsig.com.
SOUND RESTRICTION: Do not paint the horn. No
finish or coating is required. Paint may obstruct the
sound output, reducing the effectiveness of the horn.
Failure to heed this warning may cause serious injury
or death.
Overview: The Model 450E is a polarized, high-output,
continuous duty, indoor/outdoor-rated, electronic horn
suitable for use in fire alarm systems in public mode
applications. It is capable of reproducing coded blasts
or sustained tones.
In addition to fire alarm system applications, the
Federal Signal 450E horn is excellent for general
alarm, start and dismissal, coded paging, and process
control signaling in areas of high ambient noise levels.
Meets Type 4X and IP66 requirements when used with
separately purchased Model WB or WB-NM mounting
accessories.
Operating Voltage Fire Alarm Use: Regulated 24 Vdc
Current
Inrush Current
Audibility Rating
The nameplate should NOT be obscured, as it
contains cautionary and/or other information of
importance to maintenance personnel.
Table 1 Specifications
(16-33 Vdc)
General Signaling Use: 12-24 Vdc
0.25 A
764 mA
window
89 dB per UL Reverberation Room.
98 dBA per ULC Anechoic Chamber.
For directional characteristics, refer
to Figure 1.
over a 16.7 ms time
RMS
