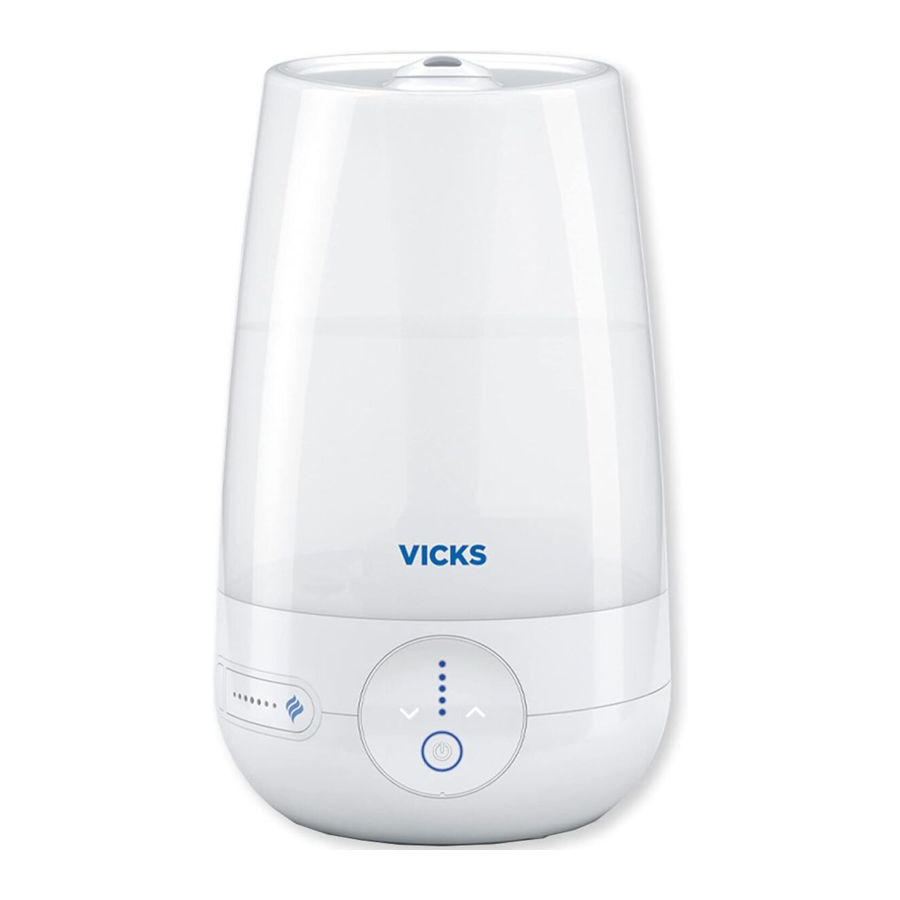

Vicks Cool Mist VUL565E, VUL565E4 Manual

Also See for Cool Mist:

User instructions (46 pages)

Table of Contents

Contents

1 COMPONENTS
2 FIRST TIME OF USE
3 OPERATING INSTRUCTIONS
4 VAPOPAD HEATER DIRECTIONS FOR USE
5 CARE AND CLEANING INSTRUCTIONS
6 TROUBLE SHOOTING
7 PERFORMANCE SPECIFICATION
8 IMPORTANT SAFETY INSTRUCTIONS
9 Documents / Resources
- 9.1 Download manual

Vicks Cool Mist VUL565E, VUL565E4 Manual

COMPONENTS

Carrying handle
180° mist nozzle
Water tank
Tank cap
Base
Power switch and intensity control
Pilot light
Cleaning indicator
VapoPad heater
Power cord

FIRST TIME OF USE

Before using the unit for the first time, you should note the following points:

Remove all packing material from the unit.
It is recommended that you disinfect your humidifier prior to first use. See cleaning Instructions.
Select a firm, level location at least 15 cm from any walls for proper airflow.
Place the humidifier on a water resistant surface.

OPERATING INSTRUCTIONS

FILLING
Remove the Water Tank by grasping handle and pulling straight up. Set aside (1).

Turn the Water Tank upside down so that the Tank Cap is facing up; unlock the Tank Cap by turning it counterclockwise and set aside (2).
Fill the Water Tank with clean, cool, tap water (3).
Replace the Tank Cap by turning clockwise (4). Turn the Water Tank upright and check the Tank Cap for leaks. If any water drips from the Tank Cap, remove it and re-tighten. Use of very cold water may temporarily reduce the mist output. Never fill the humidifier with hot or warm water as this could cause damage and void your warranty.
NOTE: When carrying the filled Water Tank, please use the handle and place your other hand under the tank for additional support.
Position the Water Tank in the humidifier and push into place. Some water will empty into the Base (5).
Once the filled tank has been positioned, do not attempt to move the humidifier. If it has to be moved, unplug the humidifier and remove the Water Tank first.
NOTE: Everytime you switch the device on or every 3 days when the sound and light go on, press the indicator to acknowledge that the water tank has been cleaned. The 3 days reminder to clean the device will then reset.

POWER

DO NOT PLUG IN THE HUMIDIFIER WITH WET HANDS AS AN ELECTRICAL SHOCK COULD OCCUR.

With the power switch in the OFF position, plug the filled humidifier into an outlet (1).
Press the Power Button to turn the device on. Pilot Light will illuminate (2).
The cleaning light and sound will go on when you switch the device on. Press the cleaning button to acknowledge that the water tank is cleaned, the sound and light to clean will turn off (3).
Set your desired mist output by pressing the arrows up or down. To operate on HIGH, press the arrow up to the highest setting (4).
Mist will not appear immediately; allow a few minutes for the water to fill the reservoir.
When a comfortable humidity level is reached turn Power Switch to a lower setting. A comfortable humidity level is between 40-60%. To monitor your humidity level use a hygrometer such as the Vicks V70 2-in-1 Hygrometer & Thermometer (5).
The unit will shut off when it is out of water. Cleaning affects the time it takes for the auto shut-off to work. When dirty – time delay for auto shut-off takes longer When clean – works appropriately.
Turn the humidifier off before removing and refilling the Water Tank. When the Water Tank is empty and the water level in the base gets too low, the fan and nebulizer turn off.

VAPOPAD HEATER DIRECTIONS FOR USE

Turn off and unplug your humidifier (1).
Open VapoPad door located below the power switch by pushing the button (2).
Insert VapoPad all the way in with angled end facing towards the product in the slot (3). Be careful not to touch the VapoPad with your hands (4). If your hands do come in contact with the pad, wash them thoroughly, as essential oils can be irritant to the skin.
Close the door, plug the unit back in and turn it on (5).Note: As long as your humidifier is on, the VapoPad heater will also be activated. This area can be warm to the touch. NEVER add essential oils or VapoPads directly into the water tank as this can result in degradation to the material.

Pad may present a choking hazard. Keep out of reach of children and pets. H317 May cause an allergic skin reaction. P102 Keep out of reach of children. P302 + P352 IF ON SKIN: wash with plenty of soap and water. P333 + P313 If skin irritation or rash occurs: Get medical advice / attention. P501 – Dispose of contents and container to an approved waste disposal plant Hazardous Ingredients: Eucalyptus Oil, Cedar leaf oil.

1 menthol VapoPad included.
Do not use for babies less than 36 month old, for more than 16 hours in a 24 hour period and/or not more than 2 pads in a 24 hour period.

CARE AND CLEANING INSTRUCTIONS

EVERY 3 DAYS CLEANING

Each time the device is switched on or every 3 days, the cleaning feature will illuminate and beep every 5 seconds to remind the user of the required cleaning. Press the cleaning indicator to acknowledge that the water tank is cleaned, the reminder to clean the device will reset. The light and the beep sound will turn off. If you do not acknowledge your cleaning, the light will stay on and the beep will sound every 5 seconds until the cleaning indicator is pressed, whilst the unit will operate normally.
Disconnect from the mains before cleaning (1).
Every third day, lift the Water Tank from the Base (2) and empty all water from the reservoir (3). Before refilling, clean it with fresh tap water or cleaning agents if required (4). Remove any scale, deposits, or film that has formed on the sides of the tank or on interior surfaces (5), and wipe all surfaces dry (6).
DO NOT leave water in the Water Tank or reservoir when the unit is not in use as it may result in the buildup of mineral deposits and bacteria that can inhibit the output efficiency of the humidifier. Please note that if water remains in the Water Tank for more than a day or two, bacteria growth is possible.
To fill and power ON, refer to Operating Instructions.

WEEKLY SCALE REMOVAL

Disconnect from the mains before cleaning (1).
Lift the Water Tank from the Base (2) and empty all water from the reservoir (3). Remove the Tank Cap and drain any water from the Water Tank (4). Wipe it clean with a soft, damp cloth. Rinse the Water Tank with lukewarm water after each use.
Add 0.5 liter of undiluted distilled white vinegar to Water Tank. Replace Tank Cap and swish vinegar solution around in Tank. Place Tank on Base. Vinegar solution will drain into Water Reservoir and loosen mineral buildup (scale) on Nebulizer and Float as they soak in the solution. It will also loosen scale on bottom of Water Tank (5).
Soak for 15-20 minutes (6).
After soaking, unlock Tank Cap and pour solution out in sink. Pour solution from Water Reservoir out in sink (7).
Wipe Nebulizer and Float with soft cloth to remove loosened mineral deposits (8).
Rinse Water Reservoir and Water Tank until smell of vinegar is gone. Make sure water does not enter the fan opening (vented opening in back of base) or Power Switch.
DO NOT immerse the Base in water. Gently wipe the reservoir with a soft, clean, wet cloth.
DO NOT use detergent to clean any water-containing parts of the humidifier. Detergents and the film they leave behind can affect the output of the humidifier. DO NOT use abrasive cleansers or brushes.
To fill and power ON, refer to Operating Instructions.

WEEKLY DISINFECTING

Disconnect from the mains before cleaning (1).
Lift the Water Tank from the Base (2) and empty all water from the reservoir (3). Remove the Tank Cap and drain any water from the Water Tank (4).
If accessories are installed, remove accessories and set aside. DO NOT clean accessories. This will damage the accessories.
Thoroughly clean humidifier every week using a solution of bleach and water (5ml of bleach in 1.8 liters of water). Fill the water tank partially with this solution (5).
Let stand twenty (20) minutes (6), shaking vigorously every few minutes. Drain and rinse with clean water until the bleach smell is gone (7).
Wipe the reservoir with a soft cloth dampened in the solution. Rinse area thoroughly before proceeding (8).
If mineral deposits are evident around the Nebulizer, clean the surface with a soft, clean cloth and a small amount of undiluted white vinegar. If necessary for removal of mineral deposits, mix a solution of 50% white vinegar and 50% water and fill the Base with enough solution to cover the Nebulizer. Rinse out the reservoir and wipe clean.
Do not touch Nebulizer or the Water Sensor with bare fingers as any fingerprints or residue can reduce mist output. Do not immerse the Base in water.
To fill and power ON, refer to Operating Instructions.

STORAGE
Follow cleaning instruction and dry product thoroughly.

TROUBLE SHOOTING

PROBLEM	POSSIBLE CAUSE	CORRECTIVE ACTION
Power Button is switched on and Power Light is off	Unit not plugged in	Plug unit in.
Power Button is switched on and Power Light is off	No power at outlet	Check circuits, fuses, try a different outlet.
Little or no mist is produced	No water in tank	Fill Water Tank.
	Unit is not level	Place on a level surface.
	Mineral deposits on Nebulizer	Clean Nebulizer per instructions.
	Water Tank was washed with detergent	Rinse thoroughly with clean water. Wipe dry.
	Water level too low	Add water to Water Tank.
	Nebulizer or fan not functioning	See Guarantee.
Condensation forms around humidifier or windows	Mist intensity is set too high for room size or preexisting humidity level	Reduce output level or shut off humidifier.
Mineral residue ("White Dust") Accumulation	Hard water used	Use distilled water.
The Cleaning indicator and sound are always on	It is normal for the sound and light to activate every time the unit is powered to indicate that the humidifier must be regularly cleaned	Following the guidance in the owner manual, please undertake thorough cleaning every 3 days, press the cleaning button to clear the notifications.

PERFORMANCE SPECIFICATION

Tank capacity (liter): 4.5L
Duration - Full tank at minimum setting (hour): 40h
Ideal for Rooms (square meter): 35m²

Clean the water tank every three days

IMPORTANT SAFETY INSTRUCTIONS

warning Read through all the instructions before starting to use the appliance. Keep this manual in a safe place for future reference.
These instructions are also available on our website. Please visit www.helenoftroy.com/emea-en

Do not add essential oils to the tank.

Unplug the appliance during filling and cleaning.
Read all instructions before using this humidifier.
Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
Place this humidifier in an area where it is not accessible to children.
Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
Do not use the humidifier outdoors.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of this appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
Do not direct moisture flow directly at individuals, walls or furniture.
When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.
Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity reading use a hygrometer, which is available in many hardware and department stores, or by ordering one from the manufacturer.
Do not place the product directly on wood furniture or other surfaces that could be damaged by water or liquids. The manufacturer will not accept responsibility for property damage caused by spillage or leaking.
Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days.
Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
Never leave water in the reservoir when the appliance is not in use.
Empty and clean the humidifier before storage. Clean the humidifier before next use.
This appliance must only be used with the power supply unit provided with the appliance.
The appliance is only to be used with the recommended vaporizing medium. The use of other substances may give rise to a toxic or fire risk.
