Vicks Cool Moisture Humidifier V3700 Manual

StarryNight V3700 Series


For the most effective and safe use of your humidifier, please read and save these instructions.

IMPORTANT SAFETY INSTRUCTIONS

warning READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING This humidifier

WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:

  1. The humidifier should always be placed on a firm, flat, waterproof surface at least 1.2 metres away from bedside, 15 centimetres from the wall and out of reach of patient, children and pets. Be sure the humidifier is in a stable position and the power cord is away from heated surfaces and out of the way to prevent the humidifier from being tipped over.
  2. This humidifier is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the humidifier by a person responsible for their safety. Children should be supervised to ensure that they do not play with the humidifier.
  3. The humidifier should not be left unattended in a closed room since air could become saturated and leave condensation on walls and furniture. Leave room door partly open. Do not aim mist vent directly at children, walls or furniture.
  4. Before using the humidifier, extend the cord and inspect for any signs of damage. Do not use the unit if the cord has been damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  5. To avoid fire or shock hazard, plug the humidifier directly into a 240V AC electrical outlet.
  6. The humidifier should always be unplugged and emptied when not in operation or while being cleaned. Shut off and unplug humidifier before moving. Do not move or tilt humidifier while it is in operation. Plug and unplug unit with dry hands. Never pull by cord.
  7. Do not operate the humidifier without water. Turn off and unplug humidifier when tank is empty. Unplug the humidifier during filling and cleaning.

  8. To avoid the risk of fire, shock or personal injury, do not use an extension cord.
  9. Humidifier requires regular cleaning. Refer to and follow cleaning instructions.
  10. Do not operate outdoors; this humidifier is intended for indoor use.
  11. Do not cover or insert objects into any openings on the humidifier.
  12. Do not attempt to repair or adjust any electrical or mechanical functions on this humidifier. Doing so will void your warranty.
  13. Care should be taken when using the humidifier due to the emission of hot water vapour.
  14. For residential use only.

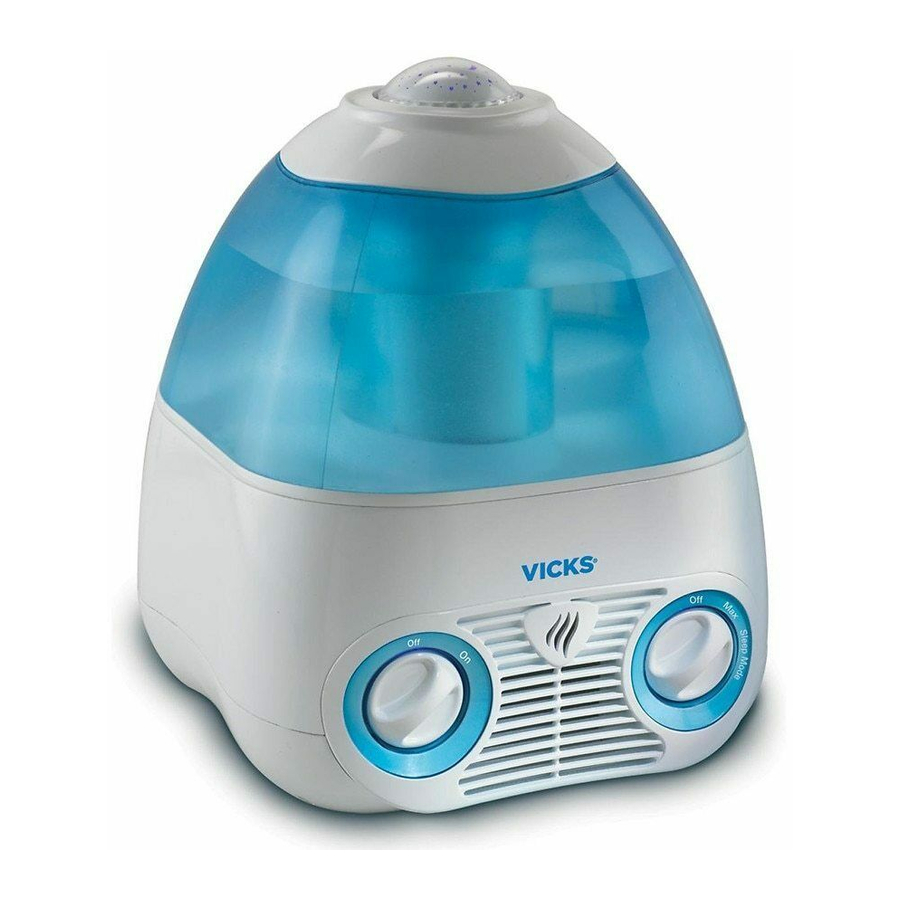

VICKS® STARRY NIGHT COOL MOISTURE HUMIDIFIER (V3700 Series)

VICkS® STARRY NIGHT COOl MOISTURE HUMIDIFIER (V3700 Series)

SETTING UP YOUR HUMIDIFIER

Placement

  1. Select a firm, level location at least 6" (15cm) from any walls for proper airflow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring.
    Placement

Kaz will not accept responsibility for property damage caused by water spillage.

Soak Filter

  1. Remove tank and set aside. Remove filter from humidifier and soak the filter in cool water. DO NOT wring filter.
    Soak Filter Step 1
  2. Remove filter tray from unit before installing the wet filter.
    Soak Filter Step 2
  3. Fold filter flat. Insert wet filter into filter tray. Place filter tray back in humidifier.
    Soak Filter Step 3

Scent Pad

  1. Remove tank and locate Scent Pad slot.
    Scent Pad Step 1
  2. If there is a used scent pad in the slot carefully remove it. Replace with a new scent pad. Carefully open scent pad bag taking care to hold pad using bag. Use care not to come in direct contact with new scent pad.
    Scent Pad Step 2
  3. Insert scent pad with angled side facing downward into the scent pad slot. You can use the bag as a holder during insertion.
    Scent Pad Step 3

Vicks Scent Pads work with heat to gradually release soothing aromatic vapors. One complimentary menthol vapor scent pad is included with your unit.

Recommended Usage for the Vicks Menthol Scent Pad (VSP-19):

  • Not recommended for infants under 4.5 kg.
  • For children between 4.5-10 kg do not use more than 2 pads in a 24 hour period.

Scent pad


Do not rub face or eyes after touching scent pad. Do not put fingers in mouth after touching scent pad. oils in the pad could act as an irritant to eyes.


As long as your humidifier is on, the scent pad heater will also be activated. This area can be warm to the touch.

INGRIDIENTS: Eucalyptus Oil, Menthol, Glycol, Cedar Leaf Oil & Others

NOTE: Replace with Vicks Scent Pads, models VSP-19

Fill Tank

  1. Turn tank upside-down. Remove tank cap by turning counter-clockwise .
    Fill Tank Step 1
  2. Fill tank with cool tap water. Replace tank cap. Tighten by turning clockwise . Place tank back on humidifier.
    Fill Tank Step 2
  3. Once the filled water tank has been placed on the base do not move humidifier. Doing so could cause leakage and spills.
    Fill Tank Step 3

Do not use hot water when filling humidifier

OPERATING YOUR HUMIDIFIER

Power

  1. With the power switch in the OFF position, plug the filled humidifier into a polarized 240V outlet. DO NOT plug in humidifier with wet hands to avoid electric shock.
    Power

Output

  1. Set fan speed to desired output:
    Max () Max Moisture
    Sleep Mode () Night time sound sleep mode
    Output

Starry Night Projector

  1. Turn the power switch to the on position to activate the starry night projector.
    Note: Projector can be operated independently of the humidifier.
    Starry Night Projector

CHANGING YOUR FILTER

NOTE: it is recommended that all maintenance be done in the kitchen or bathroom on a water resistant surface. Remove water tank from unit before moving.

The filter should be changed every 1-3 months depending on your water quality. Keep in mind, depending on your water quality, mineral deposits can still clog or discolor the filter, affecting its life and that of the humidifier.

To change the filter:

  1. Uses replacement filter WF2.
    CHANGING YOUR FILTER Step 1
  2. Turn off and unplug your humidifier.
    CHANGING YOUR FILTER Step 2
  3. Remove the water tank and filter tray.
    CHANGING YOUR FILTER Step 3
  4. Remove filter tray from unit. Discard old filter and set filter tray aside.
    CHANGING YOUR FILTER Step 4
  5. Soak new filter in cool water.
    CHANGING YOUR FILTER Step 5
  6. DO NOT wring filter.
    CHANGING YOUR FILTER Step 6
  7. Insert new filter into filter tray. Place filter tray back in humidifier. NOTE: For best fit and performance remove filter tray from the humidifier and insert presoaked new filter.
    CHANGING YOUR FILTER Step 7
  8. Replace the water tank.
    CHANGING YOUR FILTER Step 8

FILTER MAINTENANCE

Filter performance will diminish depending on the mineral content of the water and the amount of airborne dust in the environment.


CHECK WICKING FILTER REGULARLY. Any of the following conditions indicate that it is time to replace the Wicking Filter.

  • A buildup of impurities and minerals on the Wicking Filter (evidenced by discoloration of the Wicking Filter)
  • An appreciable decrease in humidifier output
  • The top of the Wicking Filter is not moist to the touch
  • The Wicking Filter has large holes or tears

The Wicking Filter should be replaced at least one or two times during the season, depending on usage, mineral content of the water and the environment. We encourage you to only use a Kaz Model WF2 Replacement Wicking Filter. The use of other Wicking Filters may lead to substandard performance.

CLEANING

Cleaning involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these in the proper order to avoid harmful chemical interactions.

NOTE: REMOVE FILTER BEFORE CLEANING. Failure to remove filter during cleaning will destroy the filter

SCALE REMOVAL (Recommend this process be performed on a weekly basis)

  1. Turn off and unplug your humidifier.
    SCALE REMOVAL Step 1
  2. Remove and empty water tank.
    SCALE REMOVAL Step 2
  3. Remove filter and set aside.
    SCALE REMOVAL Step 3
  4. Remove Filter Tray and fill filter tray and water tank with undiluted vinegar and soak for 10-15 minutes.
    SCALE REMOVAL Step 4
  5. Using undilluted vinegar wipe base thoroughly.
    SCALE REMOVAL Step 5
  6. Rinse water tank, filter tray and base thoroughly with water to remove scale.
    SCALE REMOVAL Step 6

DISINFECTING (Recommend this process be performed on a weekly basis)

  1. Turn off and unplug your humidifier.
    DISINFECTING Step 1
  2. Remove and empty water tank.
    DISINFECTING Step 2
  3. Remove filter and set aside. Dilute 1 tablespoon (TBS) of bleach in 1 gallon of cool water.
    DISINFECTING Step 3
  4. Fill water tank with water and bleach solution. Remove water tray from unit and fill with the remaining water and bleach solution. Wipe base with the same solution.
    DISINFECTING Step 4
  5. Let stand for 20 minutes.
    DISINFECTING Step 5
  6. Rinse water tray and water tank thoroughly with water until the smell of bleach is gone.
    DISINFECTING Step 6

NOTES: The use of other water treatment products and chemicals may cause deterioration of the filter or damage the humidifier, thereby hindering the humidifier's effectiveness.

END-OF-SEASON CARE AND STORAGE

  • Follow the CLEANING instructions when the humidifier will not be used for at least one week or more, or at the end of the season.
  • At the end of the season, remove and throw away the filter; do not store with a used filter.
  • Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
  • Pack the unit in its original carton and store in a cool, dry location.
  • Before next use, remember to clean your humidifier and install a new filter.

ELECTRICAL RATINGS

The Vicks® models are rated at 240V, 50 Hz.

NOTE: DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO WILL VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLESHOOTING

Q: I hear the fan turning, but I don't see any mist. Is my humidifier operating properly?

A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no "mist" emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your Tank/Base. If you notice a decrease in the Water Tank over 24 hours then the unit is operating normally.

Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing.

A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the Base and gently rinse under cool water. Reposition wet filter in the Base. You may also want to note the current moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture as your air is already saturated.

Q: My filter has turned light brown and rust colored. Do I need a new filter?

A: Probably not. Since your filter has been made with Protec™ antimicrobial the change in color indicates only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The discoloration may remain but will not affect the humidifier's performance.

Q: My humidifier doesn't appear to be as clean as when I first purchased and/or i'm smelling an unpleasant odor. What should I do?

A: If you have been using your humidifier regularly for over 30 days, follow the cleaning instructions.

Q: How do I know if it's time to replace my filter?

A: The top of the filter is not moist to the touch, the filter has large holes or tears.

Q: I recently bought my humidifier and it is operating properly. The fan is running and the water level in the tank is decreasing but the room still feels very dry.

A: If you have just started using your humidifier it will take a few days to return the normal moisture balance to your room. Wood furniture, flooring, carpeting and other objects in the room will absorb moisture before it can re-saturate the air. If you run this humidifier with the door open you may be humidifying a larger area than this humidifier was intended for. Try running with the doors closed. If your house does not have adequate insulation this could effect the amount of moisture your room is maintaining.

LIMITED WARRANTY

This product has been produced with the greatest care for normal, household use. Following directions carefully will ensure dependable operation. If your Vicks Humidifier is found to be defective (other than through misuse), we will repair or replace it at no charge during the 3 year warranty period. Modification to the product by the consumer is not authorised and voids the warranty.

If you experience unsatisfactory operation, please contact Felton Grimwade & Bosisto's as per below. If repair is required under the warranty period, the product should be returned with proof of purchase to Felton Grimwade & Bosisto's service centre.

The purchaser assumes responsibility for the proper care and use of the product in accordance with the printed operating manual. The purchaser or user must make his or her judgment as to when to use the product and the length of use. Keep the operation manual available as it is your guide to safe, efficient operation.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

© 2015 Kaz

This product is manufactured in China on behalf of Kaz USA, Inc. and under license from The Procter & Gamble Company, Cincinnati, OH, USA. Vicks, the shield device, and other associated trademarks are owned by The Procter & Gamble Company.

Distributed by: Felton Grimwade & Bosisto's Pty. Ltd.
61-81 Clarinda Road (Po Box 74),
Oakleigh South, Victoria 3167, Australia
Free call: 1800 655 841
E-mail: mail@fgb.com.au
Website: www.fgb.com.au
