Devolo Magic WiFi, Magic 1 WiFi Multiroom Kit, Magic 2 WiFi 6 Starter Kit Manual

Installation via App

Download now!
devolo Home Network App

Download the devolo Home Network app. An installation wizard will take you through the configuration stepby-step. If you prefer to carry out the installation without the app, follow the steps in Part B.

Manual installation

Step-by-step Install video
If you do not yet have a Magic WiFi adapter in your network, make a note of the WiFi key on the back of the devolo Magic adapter. On the back of this flyer you can use the field reserved for this purpose.

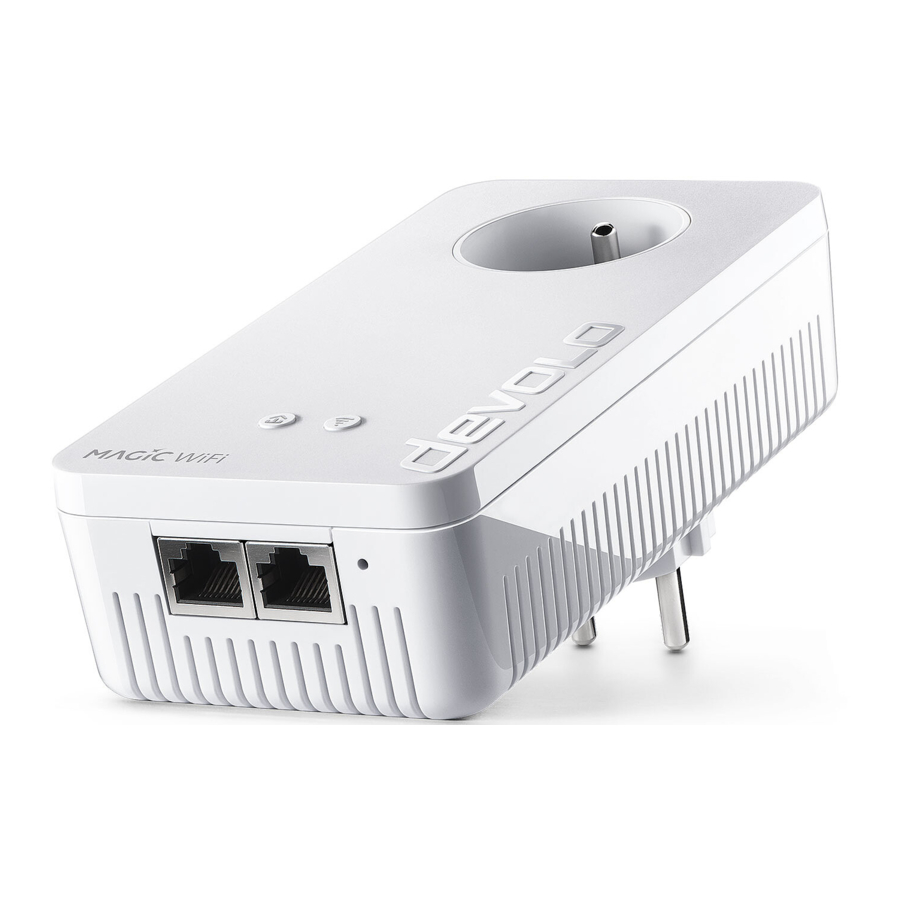

devolo Magic WiFi adapter
Manual installation - Step 1
Connect the devolo Magic WiFi adapter to a free wall socket and wait until the LED quickly flashes white (approx. 1 minute).

Manual installation - Step 2
Within 3 minutes, press the button on the side of your devolo Magic LAN adapter which is connected to the router.

Manual installation - Step 3
The encryption process takes place automatically. During this time, the LEDs of both adapters flash white.

Manual installation - Step 4
The process is complete as soon as all of the LEDs on the devices light up solid white. The process takes a maximum of 3 minutes.

Manual installation - Step 5
The basic installation process is complete. If you have not so far had a Magic WiFi adapter on your network, you can set up the Wi-Fi connection on your smartphone, etc.. To do this, type in the WiFi key you have noted down. Optionally, you can set up the Mesh WiFi technology described below.

Optional Mesh Technology

(relevant only for existing Magic LAN network)
Optional Mesh Technology - Step 1
To do this, the Wi-Fi access data is transferred as a one-off to the devolo Magic WiFi adapter at the press of a button. This gives you the best Wi-Fi coverage in any room. If the devolo Magic WiFi adapter is already near your router (max. distance 10 metres), continue with step B9, otherwise with B8.

Optional Mesh Technology - Step 2
Connect the devolo Magic WiFi adapter for the transmission of the Wi-Fi access data to a free wall socket near your router (max. distance 10 metres) and wait around 1 minute until the LED lights up white.

Optional Mesh Technology - Step 3
Briefly press the button on your devolo Magic WiFi adapter. After the button is pressed, the LED flashes white. Press the WPS button on your router within 2 minutes. Please consult your router's instruction for use to find out how long to press the button for.

Optional Mesh Technology - Step 4
Once the LED lights up solid white, the process has been completed successfully.

Optional Mesh Technology - Step 5
You can now disconnect your devolo Magic WiFi adapter and place it in your preferred location. Done! devolo Magic adapters get you seamlessly onto the Internet anywhere in the house with the strongest possible connection.

PLC button
Duration of the button press	Action	LED behaviour
1 second	LAN adapter: Start pairing with other devolo Magic adapters Wi-Fi adapter: Start pairing with other devolo Magic adapters; Start ConfigSync (adapter receives Wi-Fi access data from router)	Flashes white
> 10 seconds	Reset devolo adapter to factory settings	Lights up red
PLC LED	The devolo Magic WiFi adapter...	LED behaviour
	... is working perfectly. It is connected to other devolo Magic adapters.	Lights up white
	... is currently establishing a pairing connection with another adapter.	Quickly flashes white
	... is not connected to the network*	Flashes red
	... is in standby mode.	Slowly flashes white
	... is currently undergoing a software update.	Alternately flashes white and red
	... has a poor Powerline connection.	Lights up white and then briefly flashes red
	... is currently in the start-up process. ... cannot see any other devolo Magic adapters.	Lights up red
	... no longer has any LED function since it was disabled by the user.	None
Wi-Fi button
Duration of the button press	Action	LED behaviour
1 second	WPS function is being carried out (adapter sends Wi-Fi access data to device)	Flashes white
> 3 seconds	Wi-Fi is being switched off	LED goes out
Wi-Fi LED	The devolo Magic WiFi adapter...	LED behaviour
	... has a fault-free connection to the Internet.	Lights up white
	... is attempting to establish a connection via WPS.	Flashes white
	... no longer has any LED function since it was disabled by the user.	Off

Help: Manual Pairing
Help: Manual Pairing - Step 1
Help: If automatic pairing during initial installation was unsuccessful, you can carry out manual pairing of the Magic adapters. Connect the devolo Magic WiFi adapter to a free wall socket and wait until the LED flashes white (approx. 1 minute).

Help: Manual Pairing - Step 2
Within 3 minutes, press the button on the side of your devolo Magic LAN adapter which is connected to the router. Second, press the LED on your Magic WiFi adapter. As soon as all of the LEDs light up white, pairing has been completed successfully.
