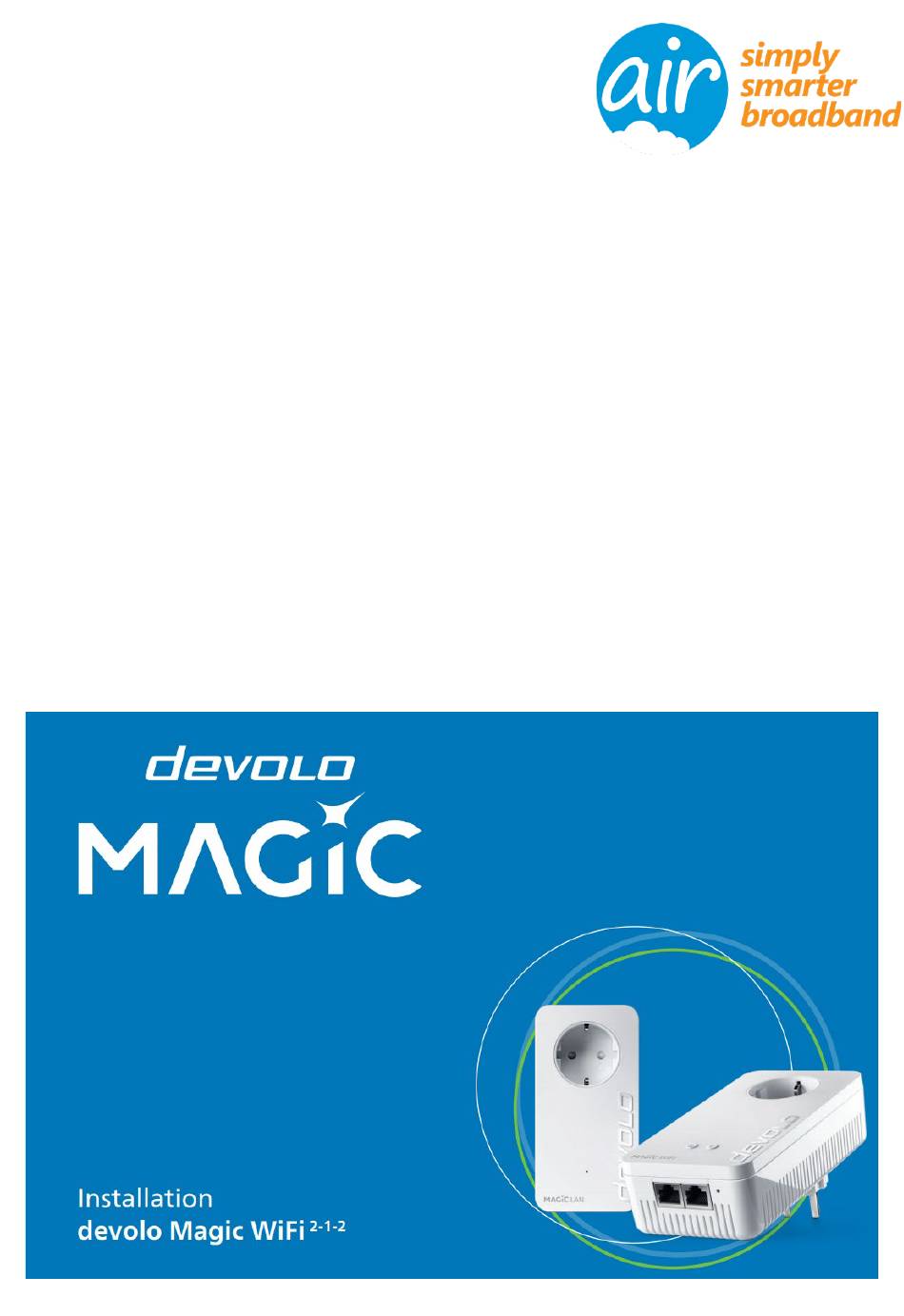

- Page 1 Devolo Magic WiFi Installation guide...
-
Page 2: Getting Started
Getting started Equipment you will need Your router x1 CAT 5E cable 1 Devolo Magic 1 or 2 Devolo Magic LAN adapter WiFi adapters depending on package Devolo Magic Wifi – Installation guide... - Page 3 — not damaged, scorched or otherwise hazardous. Wall sockets are recommended over an adaptor made to mount multiple power sockets, to avoid electrical health and safety risks as a result of overloading. Devolo Magic Wifi – Installation guide...

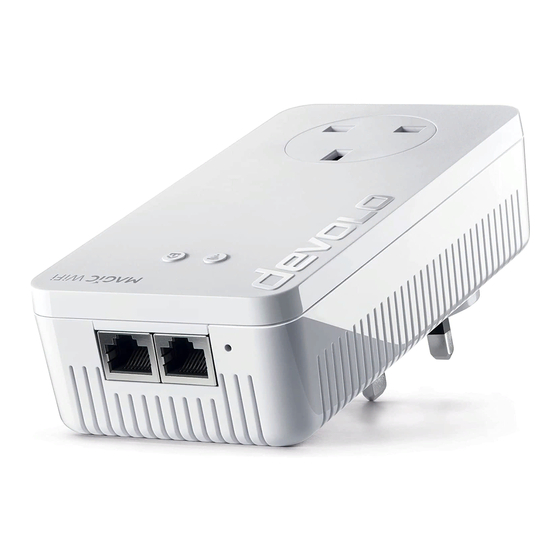

- Page 4 Make a note of the WiFi key located on the back of the Magic WiFi adapter. The Devolo Magic 1 and 2 Whole Home packages contains two separate WiFi adapters, both of which have individual keys. Devolo Magic Wifi – Installation guide...
-
Page 5: Installation
Installation Step 1 Connect your Magic WiFi adapter to a free wall socket nearby. Wait until the Home button’s LED flashes white. This should take approximately 1 minute. Devolo Magic Wifi – Installation guide... - Page 6 Installation Step 2 Connect the Devolo Magic LAN adapter to a plug socket and close enough to your router to link them via the supplied Ethernet cable. Try to keep the distance between Lan adapter and WiFi adapter under 10m.
- Page 7 If the automatic encryption is unsuccessful, the Home LED will flash red. To fix this, you will need to carry out manual pairing of the Magic WiFi adapters. Devolo Magic Wifi – Installation guide...
-
Page 8: Manual Installation
If the automatic encryption was unsuccessful, you will need to carry out manual pairing of the Magic WiFi adapters. Reconnect the Magic WiFi adapter to the wall socket. Wait until the PLC LED starts to flash white. approximate waiting time is 1 minute. - Page 9 Magic • LAN adapter connected to the router for 1 second then, press the Home button on the Magic WiFi • adapter for 2 seconds. Once all the LEDs are lit up solid white, the manual pairing process is complete.
- Page 10 Mesh technology The Devolo Magic devices support Mesh technology, an optional but highly recommended feature which requires separate configuration Devolo Magic Wifi – Installation guide...
- Page 11 Devolo Magic clones your router’s WiFi details, providing a consistent WiFi ID throughout the home. This means you won’t need to keep signing inwith different WiFi log ins.
-
Page 12: Mesh Configuration
Mesh configuration Step 1 Connect the Magic WiFi adapter to a free wall socket within 10 metres of your router. (You will only need one WiFi adapter for this process.) Wait until the Home LED lights up solid white. Devolo Magic Wifi – Installation guide... - Page 13 Mesh configuration Step 2 Press the Home button on the Magic WiFi adapter for 1 second and wait for the LED to flash white. Within 2 minutes, press the WPS button on your router. Devolo Magic Wifi – Installation guide...
- Page 14 Mesh configuration Step 3 Once the Home LED lights up solid white, the process has completed successfully. It will automatically update for both Magic WiFi adapters. Devolo Magic Wifi – Installation guide...
- Page 15 Mesh configuration You’re all set! You are now free to disconnect your Magic WiFi and put it in your preferred location. Have fun browsing the web seamlessly no matter where you are in your home! Devolo Magic Wifi – Installation guide...
- Page 16 PLC button & LED guide Devolo Magic Wifi – Installation guide...
- Page 17 Wifi button & LED guide Devolo Magic Wifi – Installation guide...
-
Page 18: Additional Information
Additional information If you require further support or information from us relating to the Devolo Magic WiFi installation, you can contact support via the following methods: Email support@airbroadband.co.uk info@airbroadband.co.uk Telephone 01223 653 400 Our website https://airbroadband.co.uk/ You can also visit the Devolo website for product data, updates and info: https://www.devolo.co.uk/...
