Infinix NOTE 40 User Manual page 2

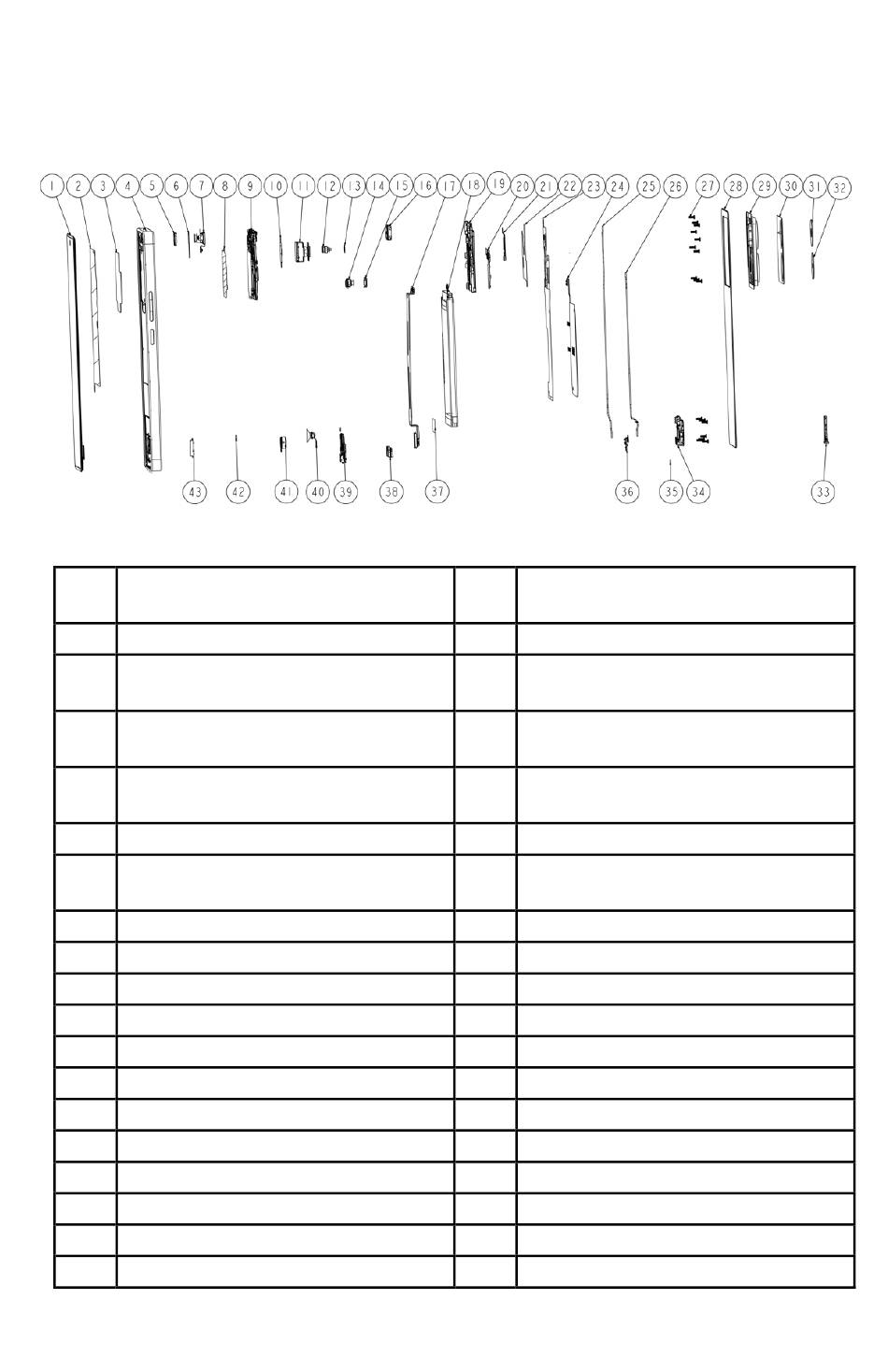

Exploded
1 TP+LCM
3 GRAPHITE PLATE
5 FRONT CAMERA FRAME
7 32M CAMERA
9 MAIN BOARD
11 108M CAMERA
13 8W CAMERA
CONDUCTIVE_FABRIC
15 2M CAMERA RUBBER
17 MAIN FPC
19 UP FRAME
21 STEEL
23 UP FRAME HEAT FILM
25 COAXIAL CABLE 1
27 SCREW
29 REAR CAMERA DECORATION
31 108M CAMERA LENS
33 SIM CONNECTOR
35 ANTENNA SUB ADHESIVE
37 COAXIAL CABLE MYLAR
diagram specification
1
2 FRONT HOUSING
GRAPHITE_FILM
4 MIDDLE HOUSING
6 FRONT CAMERA
GROUNDING COPPER FOIL
8 SHIELDING CASE COPPER
FOIL
10 108M CAMERA GROUNDING
COPPER FOIL
12 8W CAMERA
14 2M CAMERA
16 RECEIVER
18 BATTERY
20 FLASH LAMP FPC
22 MAIN PCB HEAT FILM
24 NFC WIRELESS FPC
26 COAXIAL CABLE 2
28 BATTERY COVER
30 REAR CAMERA LENS
32 2M CAMERA LENS
34 SPK BOX FRAME
36 ANTENNA SUB
38 USB RUBBER
