  • Page 1 PG34QRT2B User Manual Version 1.0 Published December 2023 Copyright©2023 ASRock INC. All rights reserved.
  • Page 2 Contents Chapter 1 Introduction Package Contents Chapter 2 Setting up the Monitor Attaching the Stand Arm and Base Detaching the Stand Arm and Base Making Connections Adjusting the Viewing Angle Using the Security Slot Chapter 3 Monitor Overview Front View Rear View Bottom View Chapter 4 Specifications...

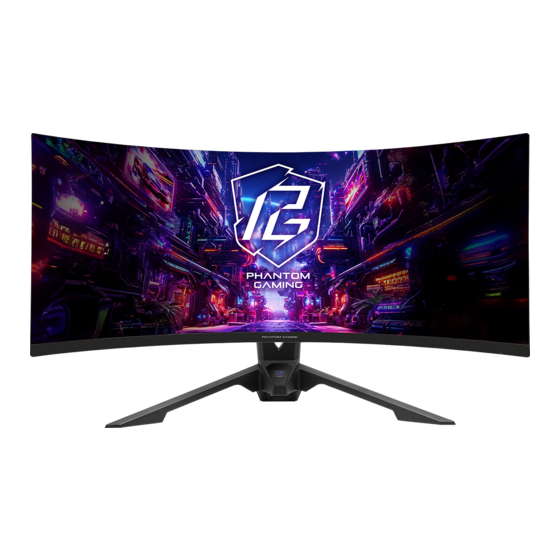

  • Page 3 Chapter 1 Introduction Thank you for purchasing PG34QRT2B, a reliable monitor produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. 1.1 Package Contents Your monitor ships with the components shown below. Please make sure that you have...
  • Page 4 Chapter 2 Setting up the Monitor 2.1 Attaching the Stand Arm and Base Step 1. Installing the Stand Base • Leave the monitor in its protective foam packaging. ⚠ Important Place the monitor in its protective foam packaging, or on a soft, protected surface to avoid scratching the display screen.
  • Page 5 Step 2. Installing the Stand Arm • Align and slide the two tabs on the stand arm to the groove on the back of the monitor until it snaps into place. • Push the stand lock to the locked position to ensure the stability. LOCK...
  • Page 6 Step 3. Placing the Monitor Upright Lift the monitor carefully out of the foam packaging and into its upright position on a flat, stable surface. ⚠ Important Be careful not to touch or press the display screen areawhen lifting or moving the monitor to avoid any scratches or damage.
  • Page 7 2.2 Detaching the Stand Arm and Base Before removing the stand, be sure to turn off the monitor and disconnect all cables. Push the stand lock to the unlock position. Lift upward to disengage the tabs on the stand arm from the monitor. Remove the stand (arm and base). UNLOCK Release the screw at the bottom of the stand base.
  • Page 8 2.3 Making Connections Connecting the Power Cord Connect the power cord to the monitor and to an electrical wall outlet. Pass the cable through the cable management hole on the stand arm. ⚠ Important Please make sure to make a grounding connection before connecting the power plug to the power source.
  • Page 9 Connecting the Monitor to the PC / Laptop HDMI Connection Connect one end of the HDMI cable to the HDMI connector on the rear side of the monitor. Then connect the other end to the HDMI connector on the PC or laptop. Pass the cable through the cable management hole on the stand arm.
  • Page 10 DisplayPort Connection Connect one end of the DisplayPort cable to the DisplayPort input connector on the rear side of the monitor. Then connect the other end to the DisplayPort output connector on the PC or laptop. Pass the cable through the cable management hole on the stand arm.
  • Page 11 USB Type-B Connection (to Host) Connect the USB type-B end of the provided USB 3.0 Type-A to Type-B cable to the USB type-B upstream port on the rear side of the monitor. Then connect the type-A end of the cable to USB type-A port on the PC or laptop. ⚠...
  • Page 12 USB Type-A Connection (to Device) Use the Type-A downstream port(s) on the rear side of the monitor to connect to your USB devices, such as a USB keyboard, a USB mouse, a USB portable hard drive, or a USB flash drive.
  • Page 13 Antenna Cable Connection This monitor has a built-in Wi-Fi antenna. Placed on the table, the integrated antenna on the back of the monitor provides great Wi-Fi connectivity up to 7dBi peak gain. If your motherboard comes with built-in Wifi, use the provided antenna cables to turn your monitor a powerful wireless antenna.
  • Page 14 Audio Cable Connection You can connect headphones to the headphone jack on the bottom side of the monitor. Pass the cable through the cable management hole on the stand arm.
  • Page 15 2.4 Adjusting the Viewing Angle Tilt Angle Adjustment For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor’s angle to your own preference. Hold the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand so you do not topple the monitor when you adjust the monitor’s angle.
  • Page 16 Swivel Angle Adjustment You are able to swivel the monitor for the angle. ⚠ Important Be careful not to touch or press the display screen area when adjusting the monitor.
  • Page 17 2.5 Using the Security Slot This monitor supports a Kensington-type security slot. The Kensington lock can be used to secure the monitor and prevent it from being stolen in public locations. NOTE: Kensington lock is not included. You need to purchase an additional locking device.
  • Page 18 Chapter 3 Monitor Overview 3.1 Front View Item Description Display screen The display part of a monitor The color definition of the power indicator: • Solid Blue - Power on mode Power Indicator • Solid Amber - Standby mode • LED Off - Off mode...
  • Page 19 3.2 Rear View Item Description Press to turn the monitor on. Press and hold for 3 seconds to turn the monitor off. The color definition of the power indicator: Power On/Off button • Solid Blue - Power on mode • Solid Amber - Standby mode •...
  • Page 20 Secures monitor with security lock (security lock Kensington Lock slot not included). Cable management hole Organize cables by passing them through the hole. Antenna ports Connect the Wi-Fi antenna cables.
  • Page 21 3.3 Bottom View 2 3 4 5 7 8 9 Item Description AC-IN port Connect the power cord. HDMI-2 port Connect your computer with the HDMI cable. HDMI-1 port Connect your computer with the HDMI cable. DisplayPort-2 Connect your computer with the DisplayPort cable. DisplayPort-1 Connect your computer with the DisplayPort cable.
  • Page 22 Chapter 4 Specifications 4.1 Monitor Specifications Model: PG34QRT2B Panel Size 34" Aspect Ratio 21:9 Panel Type Viewing Angle 178°(H) / 178°(V) Resolution WQHD (3440 x1440) Pixel Pitch 0.2318 mm Curvature 1500R Refresh Rate 180Hz Response Time 1ms (MPRT) Display Brightness (typ.) 500 nits (Typ.)
  • Page 23 Power Consumption (Max) ≦ 100W Power Saving Mode ≦ 0.5 W Power Consumption Power Off Mode ≦ 0.3 W Voltage 100~240Vac, 50/60Hz, 1.5A Tilt Adjustment -7°~+20° Swivel Adjustment -20° ~ +20° Mechanical Height Adjustment 0~100 mm Design 100x100 mm (4 screw holes) VESA Mount M4*10 mm Dimension with Stand...
  • Page 24 4.2 Supported Timing List PG34QRT2B Standard Resolution HDMI IBM MODE DOS 720x400 @70Hz 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz 800x600 @56Hz 800x600 @60Hz SVGA 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @75Hz 1280x1024 @60Hz SXGA 1280x1024 @75Hz...
  • Page 25 720x480P 59.94/60Hz 16:9 720x576P 50Hz 4:3 720x576P 50Hz 16:9 1280x720P 50Hz 16:9 1280x720P 59.94/60Hz 16:9 Video Timing 1920x1080p 50Hz 16:9 Resolution 1920x1080P 59.94/60Hz 16:9 1920x1080P 119.88/120Hz 16:9/1:1 2160P @30Hz 2160P @50Hz 2160P @60Hz...
  • Page 26 Chapter 5 Operating the Monitor 5.1 Powering On/Off the Monitor Press the Power button (at the bottom most position) to turn on the monitor. The power indicator on the front of the monitor lights up in solid blue to show that the monitor is To turn the monitor off, press and hold the Power button about 3 seconds until the LED...
  • Page 27 5.2 Hot Keys When the OSD screen is off, press the control buttons on the rear side of the monitor to access the OSD menu, change the preset mode, or adjust the brightness. The labels on the side of the monitor correspond to the buttons on the back. Icon Hot Key (When OSD is OFF) MENU...
  • Page 28 5.3 Using the Joystick Control When the OSD screen is on, use the joystick on the rear side of the monitor to navigate the OSD menu and adjust the settings. To access the OSD menu, press the joystick button to launch the OSD main menu. Move the joystick up/down/left/right to toggle between options.
  • Page 29 Toggle right to select menu items or go to the next menu (Move). Toggle Right Increases the parameters of the selected menu item (Adjust). Toggle Up Toggle up to select menu items (Move). Toggle Down Toggle down to select menu items (Move).
  • Page 30 Chapter 6 OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. 6.1 Accessing the OSD Menu After you press the Menu button, the OSD menu appears on the lower right corner of your monitor screen.
  • Page 31 6.2 OSD Menus Function: Luminance Luminance Contrast Brightness Preset Modes Standard MPRT :Exit :Move :Select Main Menu Item Sub Menu Item Sub Menu Description Luminance Contrast 0-100 Contrast adjusts the degree of difference between darkness and lightness on the monitor screen. Brightness 0-100 Brightness adjusts the luminance...
  • Page 32 Function: Image Setup Image Setup Image Ratio Full Medium FreeSync Premium Auto Sharpness Dark Boost :Exit :Move :Select Main Menu Item Sub Menu Item Sub Menu Description Image Setup Image Ratio Full Selects Image Aspect Ratio. Aspect Boosts response time with Over Drive technology, offering three levels: Medium...
  • Page 33 Function: Color Temp. Color Temp. Color Temp. Normal Green Blue Low Blue Light :Exit :Move :Select Main Menu Item Sub Menu Item Sub Menu Description Color Temp. Normal ─ Loads the monitor's default color settings. Warm ─ Increases the color temperature. The screen appears warmer with a red/yellow tint.
  • Page 34 Function: OSD Setup OSD Setup H.Position V.Position Timeout Language English :Exit :Move :Select Main Menu Item Sub Menu Item Sub Menu Description OSD Setup H. Position 0-100 Adjusts the horizontal position of OSD. V. Position 0-100 Adjusts the vertical position of OSD.
  • Page 35 Extra Input Select Auto USB ConnectSync DDC/CI Reset Resolution 3440H x1440V H.Frequency 89KHz V.Frequency 60Hz Model Name PG34QRT2B :Exit :Move :Select Main Menu Item Sub Menu Item Sub Menu Description Extra Input Select Auto Selects input source HDMI1 HDMI2 DisplayPort...
  • Page 36 Chapter 7 Troubleshooting Problem and Question Possible Solution • Check if the Power button is pressed and the Power LED is not on monitor is power on. • Power Cord should be connected. • Check that the video cable is properly connected. If the connector is loose, tighten the connector’s No signal screws.
  • Page 37 • Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. • If this device comes with an adapter, use only the ASRock provided AC adapter approved for use with this device.
  • Page 38 European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations. California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.
  • Page 39 Environment • To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators. • Use this device only on a hard, flat and steady surface. •...
  • Page 40 (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union. ASRock Contact Information ASRock EUROPE B.V. Address : Bijsterhuizen 11-11, 6546 AR Nijmegen,The Netherlands...
  • Page 41 FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 42 ASRock Contact Information ASRock America, Inc. Address : 13848 Magnolia Ave, Chino, CA91710, U.S.A. Phone: +1-909-590-8308 Technical Support Phone: +1-909-590-8308 Online Support https://event.asrock.com/tsd.asp...
  • Page 43 Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), ASRock provides the relevant information at: https://asrock.com/general/about.asp?cat=Responsibility RoHS Statement Japan JIS C 0950 Material Declaration...
  • Page 44 Copyright and Trademarks Notice Copyright © ASRock Inc. All rights reserved. The ASRock logo used is a registered trademark of ASRock Inc. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
  • Page 45 ASRock’s website without further notice. If you require technical support related to this monitor, please visit our website for specific information about the model you are using. You may find the latest monitor support list on ASRock’s website as well.
