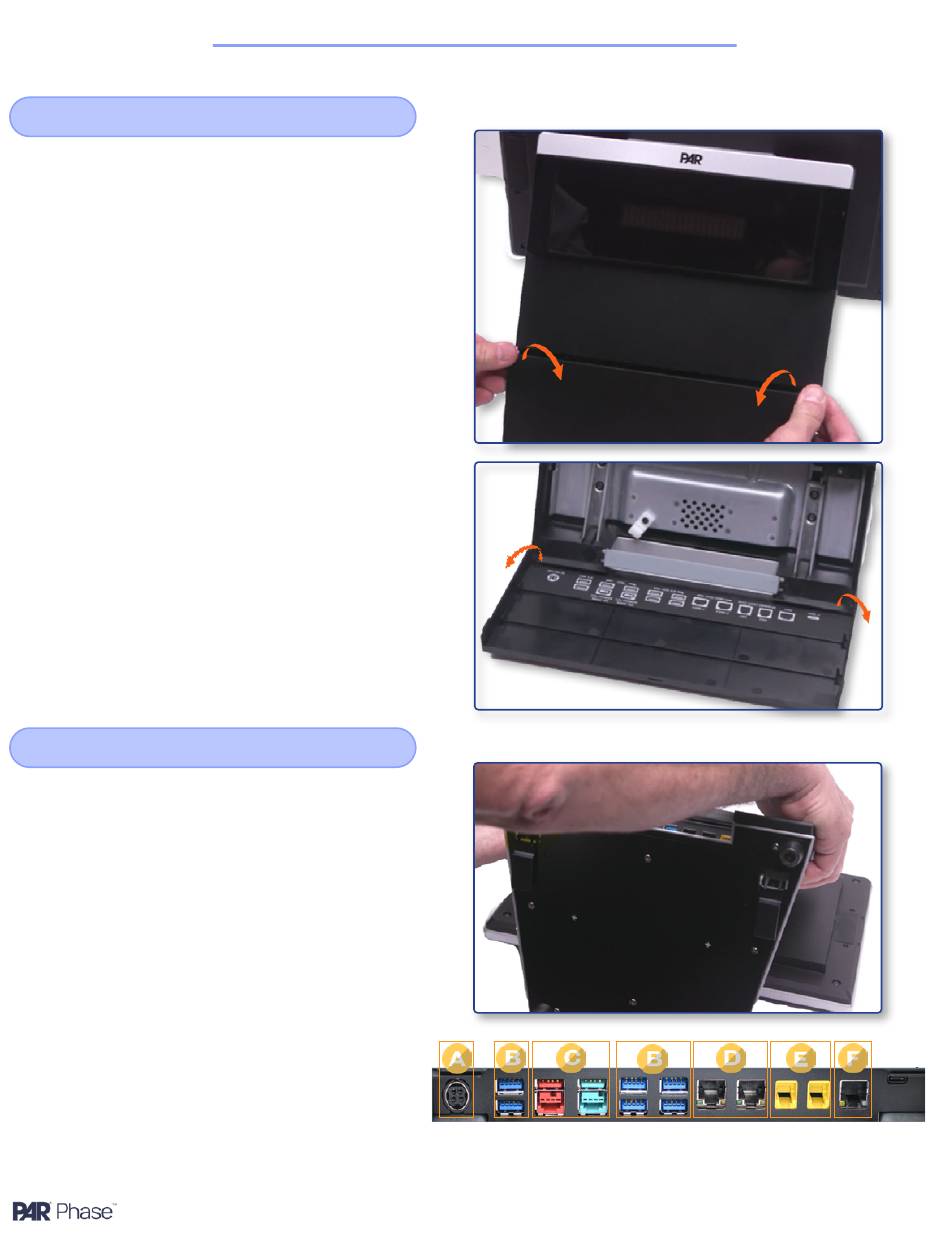

How Do I Access the PAR Phase Cable Well?
This document will assist you in accessing and identifying the cable ports on the PAR Phase terminal.
1
Open and Remove the Access Door
Open the access door by pulling it away from the
back of the terminal
Gently flex the sides of the door outwardly to
remove the post from the slot, then set the door
aside
2
Access the Cable Well
Lean the terminal forward, resting the display
onto a cloth or ESD mat
Identify I/O ports
A. Power Port
B. USB 3.0 Ports
C. Powered USB Ports
D. Serial Ports 1 and 2
E. Cash Drawer Ports 1 and 2
F. LAN Port
