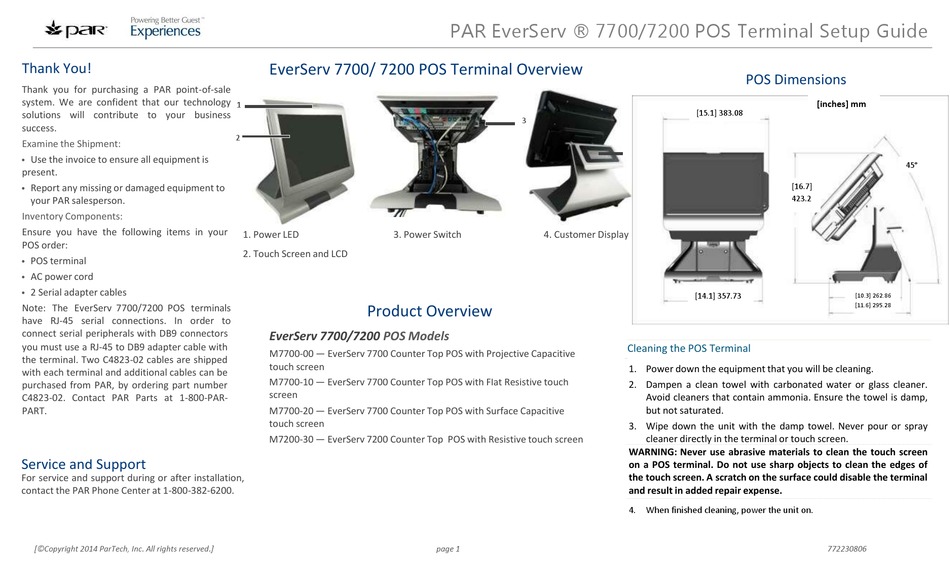

PAR EverServ 7700 Setup Manual

Thank You!

Thank you for purchasing a PAR point-of-sale
system. We are confident that our technology
solutions will contribute to your business
success.

Examine the Shipment:

 Use the invoice to ensure all equipment is
present.
 Report any missing or damaged equipment to
your PAR salesperson.

Inventory Components:

Ensure you have the following items in your
POS order:
 POS terminal

AC power cord
 2 Serial adapter cables
Note: The EverServ 7700/7200 POS terminals
have RJ-45 serial connections. In order to
connect serial peripherals with DB9 connectors
you must use a RJ-45 to DB9 adapter cable with
the terminal. Two C4823-02 cables are shipped
with each terminal and additional cables can be
purchased from PAR, by ordering part number
C4823-02. Contact PAR Parts at 1-800-PAR-
PART.

Service and Support

For service and support during or after installation,
contact the PAR Phone Center at 1-800-382-6200.
[©Copyright 2014 ParTech, Inc. All rights reserved.]

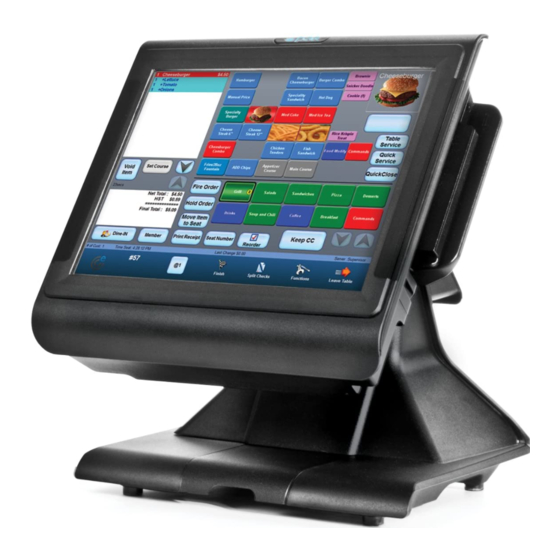

EverServ 7700/ 7200 POS Terminal Overview
1
2
1. Power LED 3. Power Switch
2. Touch Screen and LCD

Product Overview

EverServ 7700/7200 POS Models
M7700-00 — EverServ 7700 Counter Top POS with Projective Capacitive
touch screen
M7700-10 — EverServ 7700 Counter Top POS with Flat Resistive touch
screen
M7700-20 — EverServ 7700 Counter Top POS with Surface Capacitive
touch screen
M7200-30 — EverServ 7200 Counter Top POS with Resistive touch screen
PAR EverServ ® 7700/7200 POS Terminal Setup Guide
3
4. Customer Display
page 1
POS Dimensions
[15.1] 383.08
4
[16.7]
423.2
[14.1] 357.73

Cleaning the POS Terminal

1. Power down the equipment that you will be cleaning.
2. Dampen a clean towel with carbonated water or glass cleaner.
Avoid cleaners that contain ammonia. Ensure the towel is damp,
but not saturated.
3. Wipe down the unit with the damp towel. Never pour or spray
cleaner directly in the terminal or touch screen.
WARNING: Never use abrasive materials to clean the touch screen
on a POS terminal. Do not use sharp objects to clean the edges of
the touch screen. A scratch on the surface could disable the terminal
and result in added repair expense.
4. When finished cleaning, power the unit on.
[inches] mm
45°
[10.3] 262.86
[11.6] 295.28
772230806
