One Blue Hill Plaza, 16th Floor, PO Box 1546
Pearl River, NY 10965
1-800-PC-AMERICA, 1-800-722-6374
(Voice) 845-920-0800 (Fax) 845-920-0880

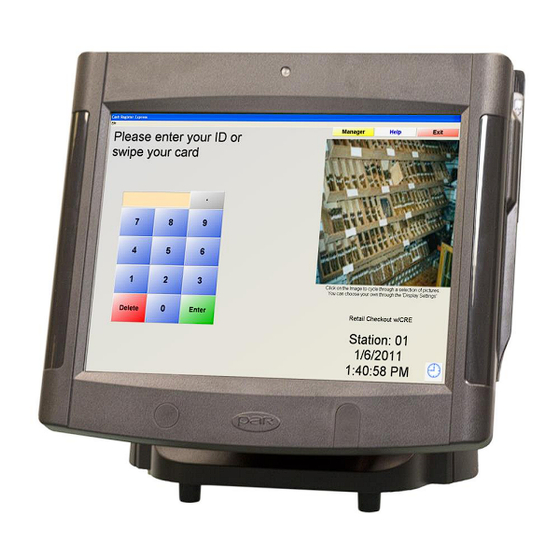

PAR EverServ™ 6000 Installation
Guide
This document provides step-by-step instructions for setting up your PAR system, which contains the
EverServ™ 6000
following components: the
Terminal, integrated Pole Display and an integrated MSR.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for PAR EverServ 6000
Summary of Contents for PAR EverServ 6000
- Page 1 1-800-PC-AMERICA, 1-800-722-6374 (Voice) 845-920-0800 (Fax) 845-920-0880 PAR EverServ™ 6000 Installation Guide This document provides step-by-step instructions for setting up your PAR system, which contains the EverServ™ 6000 following components: the Terminal, integrated Pole Display and an integrated MSR. P a g e...
- Page 2 Hardware Ports 12V Accessory: Connect optional Virtual Pole Display USB Ports: Connect a supported USB device here. power cable here. Audio IN: Connect audio cable from external Cash Drawer Ports Open device here. (CD1 & CD2): Audio OUT: Connect audio cable here to speakers. LPT Port: Connect a supported LPT device here.
- Page 3 Connecting the Power Cable to the PAR EverServ 6000 Terminal In order to use the PAR EverServ 6000 Terminal, you must first connect the power with the following cables: Follow these steps: Insert end 1 of cable 1 into end 2 of cable 2.
- Page 4 Turning on the KS6600 Fan Free Terminal To turn on the KS6600, follow these steps. Locate the panel at the bottom of the screen, next to the hardware ports and press the power button. P a g e...
- Page 5 Installing Microsoft POS for .NET The installer for Microsoft POS for .NET can be downloaded at: http://download2.pcamerica.com/drivers/POS_for_.Net.exe Double-click the installer and follow these steps: Select Yes. Select Browse and select a folder to unzip all files to. Select Unzip. Navigate to the folder containing the unzipped files. Double-click on Setup.exe.
- Page 6 Provide a user name and organization. Select Next. Select Accept. P a g e...
- Page 7 Select Next. Select Install. P a g e...
- Page 8 Select Finish. P a g e...
- Page 9 Installing the PAR POS Device Drivers V1.0.0.13 The installer for the PAR POS Device Drivers can be downloaded at: http://download2.pcamerica.com/drivers/Manufacturer/PAR/PAR-Device_Drivers_V1.0.0.13.zip Run Setup.exe. Select Next. Select Install all PAR Device Drivers. Select Next. P a g e...
- Page 10 Select Next when asked to select a program folder. Select Other then select Next to start copying files. Select Yes to view the readme file. 10 | P a g e...
- Page 11 Select Yes, I want to restart my computer now. Select OK. 11 | P a g e...
- Page 12 Installing the PAR OPOS Device Drivers V1.0.0.12 The installer for the PAR OPOS Device Drivers can be downloaded at: http://download2.pcamerica.com/drivers/Manufacturer/PAR/PAR-OPOS_Drivers_V1.0.0.12.zip Open the Disk 1 folder and run Setup.exe, then follow these steps: Select Next. Select Install all PAR OPOS Modules.
- Page 13 Select Next when asked to select a program folder. Select Yes to view the readme file. Select OK. 13 | P a g e...
- Page 14 Installing OPOS Common Control Objects 1.13.001 The driver for the OPOS Common Control Objects 1.13.001 can be downloaded from: http://download2.pcamerica.com/drivers/Manufacturer/PAR/PAR_OPOS_CCO_1.13.001.zip Select Next to begin the installation. Select Next when asked to select a program folder. 14 | P a g e...
- Page 15 Select Complete then select Next. Select Install to install the files. Select Finish to complete the installation. 15 | P a g e...
- Page 16 Configuring CRE or RPE to communicate with all devices To configure CRE or RPE to communicate with all devices, open CRE or RPE, select Manager, provide the requested credentials, and follow these steps. Select Setup then select Setup Screen. Select the Hardware tab. Select Page 1.
- Page 17 Select Page 3. Under OPOS MSR (Card swipe) select PARMagCard. Select Update to save your changes. 17 | P a g e...
