Summary of Contents for Arlo FLW1001

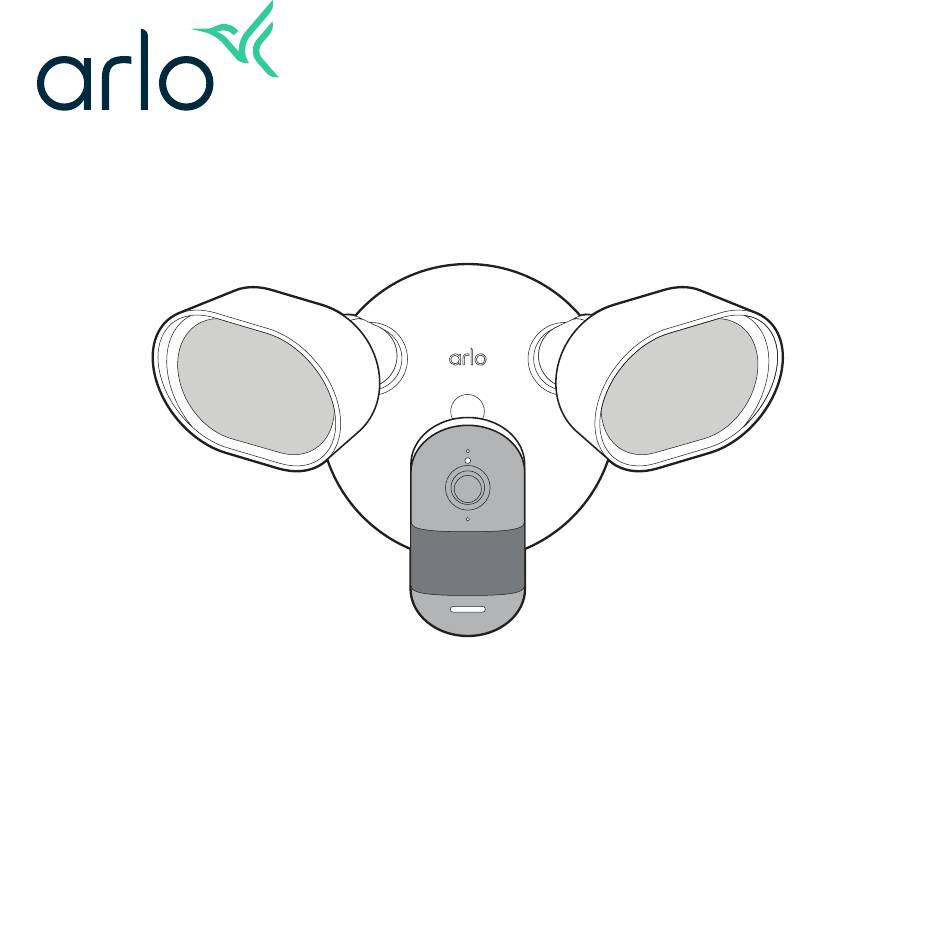

- Page 1 Quick Start Guide Wired Floodlight Camera...
- Page 2 Please scan QR code with your phone camera to watch this video and familiarize yourself with the installation process. Or go to arlo.com/install/wiredfloodlight Download the Arlo Secure App and create an account or log in to your existing account. Or go to arlo.com/app/secure/ In the app tap Devices and then , select Lights >...
- Page 3 What’s in the box Junction Box Wired Floodlight Camera 1x Floodlight 3x Junction 3x Wall Anchors Mounting Screw Box Mounting (Bag B) (Bag C) Screws (Bag A) 1x Floodlight Mounting Screw Cap 1x S-Hook (Bag D)
- Page 4 Get to know your Arlo Floodlight Adjustable Floodlights Camera Mounting Paring Button Screw Hole Microphone Adjustable Camera Camera Status LED Motion Sensor (Avoid touching or pressing) Speaker Mounting Options Wall Mount Ceiling Mount...
- Page 5 Get to know your Junction Box Junction Box Mounting Screw Hole Cable Clamp Wire Grommet Terminal S-Hook Anchor Block Floodlight Mounting Screw Hole Junction Box Mounting Screw Hole...
- Page 6 WARNING: Risk of electrical shock and fire. Do not install wired floodlight camera (“Fixture”) near combustible or flammable surfaces. Installation must be performed by a licensed electrician. • Always follow local building codes, standards, and regulations. • Existing electrical wires are required for Fixture installation. •...
- Page 7 Prepare Junction Box • Run the power cable through the wire grommet in the Junction Box. • Remove the two smaller rubber plugs from the Junction Box and set them aside for later use. • For optimal structural integrity, try to orient the Junction Box so that the word “TOP”...
- Page 8 Release Cable Clamp • Use your Philips-head screwdriver to remove one screw from the cable clamp to release it. Rotate the cable clamp to the side, and set the screw aside for later use. • Run the power cable through the opening. Connect Wall Wiring •...
- Page 9 Use S-Hook • Attach one end of the S-Hook to camera for support during installation. Hang camera and floodlights upside down. Position the back of the floodlight base to face the wall to avoid damage to the camera’s surface. • Hang the other end of S-Hook from either ring of the S-Hook Hanger.
- Page 10 • You’ll know your Floodlight is receiving power when the LED on the front of the Floodlight Camera is solid blue. Remain close to your Floodlight Camera as you onboard it in the Arlo Secure App. • Open the Arlo Secure App, tap Devices and , and select Lights >...
- Page 11 Total protection starts with Arlo Secure Arlo Secure plan trial is included with purchase. A paid plan after trial is required to keep premium features. Visit arlo.com/arlosecure to learn more about premium features: • 30-Day Video Recordings in Secure Cloud •...
- Page 14 For regulatory compliance information including the EU Declaration of Conformity, visit www.arlo.com/about/regulatory/. © Arlo Technologies, Inc. Arlo, le logo Arlo et Every Angle Covered sont des marques de commerce d’Arlo Technologies, Inc. App Store est une marque de service d’Apple Inc.
- Page 15 CAN ICES (B) / NMB (B)
- Page 16 Arlo Technologies Intl. Ltd Ground Floor, Building 3 University Technology Centre Curraheen Road, Cork T12 EF21 Ireland Arlo Technologies UK Limited 280 Bishopsgate London, EC2M 4RB September 2024 Arlo Technologies, Inc. 5770 Fleet Street, Suite 200 Carlsbad, CA 92008 USA...
