Washing Machine
Congratulations on your new Samsung washing machine. This manual contains important information on the
installation, use, and care of your appliance. Read this manual thoroughly before using the washing machine to
ensure that you know how to safely and efficiently operate the features and functions that your new washing
machine offers.
For detailed instructions on installation and cleaning of the washing machine and ecodesign information
(according to (EU)2019/2023), visit the Samsung website (http://www.samsung.com), go to Support > Support
home, and then enter the model name. Or, download and install the SmartThings app on your mobile device, and
then open HomeCare Wizard in SmartThings for tips and guides.
To check the product's model name, see the label enclosed with the product or attached to the product.
What's included
01
02
03
04
05
06
07
Spanner
Check valve (only
supplied to some
models)
NOTE
Spanner: For removing the shipping bolts and levelling the washing machine.
Bolt caps: For covering the holes after removing the shipping bolts. The provided number of bolt caps (3 to 6)
depends on the model.
Hose guide: For hanging the drain hose in the drainpipe or wash-basin.
DC68-04494M-01_IB_D-PJT_COMBO_SimpleUX_EN.indd 1
Bolt caps
Hose guide
Cap fixer
Liquid detergent
guide
Model: WD1*D*******, WD9*D*******

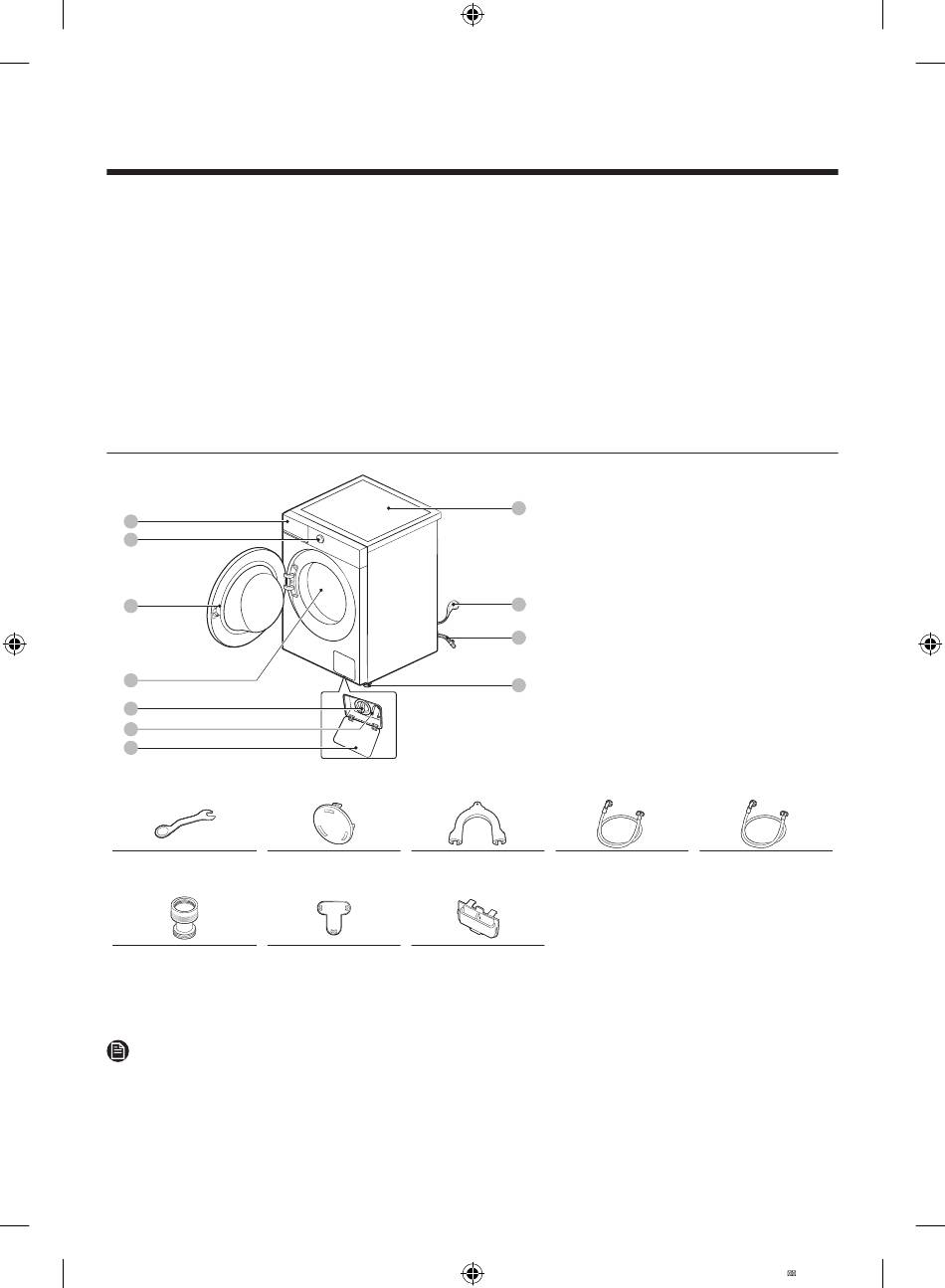

01 Detergent drawer
02 Control panel
08
03 Door
04 Drum
05 Debris filter
06 Emergency drain tube
07 Filter cover
09
08 Worktop
10
09 Power plug
10 Drain hose
11
Levelling feet
11
Cold water hose
Hot water hose
2024-04-17
11:40:55
