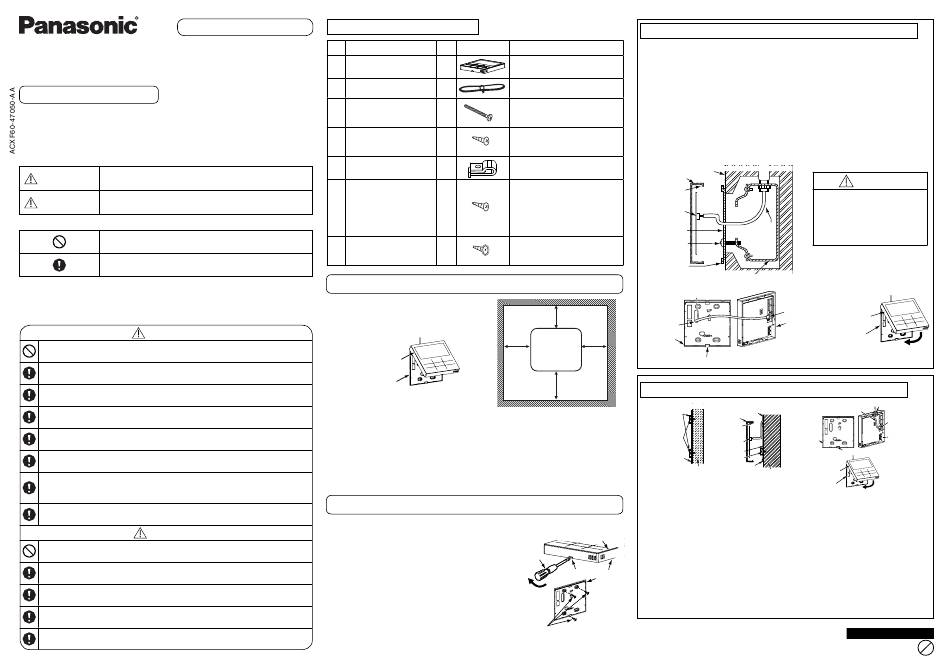

Panasonic CZ-RD517C Installation Instruction

MODEL NO.: CZ-RD517C
Wired Remote Controller Installation Manual
Installation Instruction
SAFETY PRECAUTIONS
 Read the following "SAFETY PRECAUTIONS" carefully before installation.
Electrical work must be installed by a licensed electrician.

The caution items stated here must be followed because these important contents

are related to safety. The meaning of each indication used is as below.
Incorrect installation due to ignoring of the instruction will cause harm or damage,
and the seriousness is classifi ed by the following indications.
This indication shows the possibility of causing death or
WARNING
serious injury.
This indication shows the possibility of causing injury or
CAUTION
damage to properties.
The items to be followed are classified by the symbols:
Symbol with white background denotes item that is
PROHIBITED from doing.
Symbol with dark background denotes item that must be
carried out.
Carry out test running to confi rm that no abnormality occurs after the installation.

Then, explain to user the operation, care and maintenance as stated in instructions.
Please remind the customer to keep the operating instructions and installation
instruction for future reference.
WARNING
Do not modify the length of the remote controller cable. Otherwise, it will
cause fi re or electrical shock.
Be sure to turn off the main power before installing and connecting the
remote controller. Otherwise, it will cause the electrical shock.
Engage authorized dealer or specialist for installation. If installation done by
the user is defective, it will cause electrical shock or fi re.
Install according to this installation instructions strictly. If installation is
defective, it will cause electrical shock or fi re.
Use the attached accessories parts and specifi ed parts for installation.
Otherwise, it will cause the set to fall, fi re or electrical shock.
For electrical work, follow the local national wiring standard, regulation and
this installation instruction. Otherwise, it will cause the electrical shock or fi re.
Wire routing must be properly arranged so that control board cover is fi xed
properly. If control board cover is not fi xed perfectly, it will cause fi re or
electrical shock.
If passing the remote controller cable through a wall, be sure to install a
water trap above the cable. Otherwise, it will cause the electrical shock.
CAUTION
Do not touch the sharp aluminium fi n of air conditioner unit during wired
remote controller installation, sharp parts may cause injury.
Install in a fl at surface to avoid warping of remote controller, else damage to
the LCD case or operation problems may result.
Avoid installing the remote controller cable near refrigerant pipes or drain
pipes, else will cause electrical shock or fi re.
Install the remote controller cable at least 5cm away from electric wires of
other appliances to avoid miss operation (electromagnetic noise).
Be sure to use only the accessory screws to avoid damage of remote
controller PCB.
ATTACHED ACCESSORIES
No. Name Qty Diagram
1 Remote controller 1
2 Remote controller cable 1
Screw
3 (M4 machine pitched - 3
30mm)
Screw
4 3
(M4 self tapping - 14mm)
Remote controller cable
5 1
holder
Screw
6 1
(M4 self tapping - 12mm)
Screw
7 (M4 self tapping with 1
washer)
1. SELECTING THE INSTALLATION LOCATION
Remote
controller
Upper case
Lower case
Allow suffi cient space around the remote controller 1 as shown in the illustration above.

Install in a place which is away from direct sunlight and high humidity.

Install in a fl at surface to avoid warping of the remote controller. If installed to a wall with

an uneven surface, damage to the LCD case or operation problems may result.
Install in a place where the LCD can be easily seen for operation. (Standard height from

the fl oor is 1.2 to 1.5 meters.)
Avoid installing the remote controller cable near refrigerant pipes or drain pipes, else it will

cause electrical shock or fi re.
2. INSTALLING THE REMOTE CONTROLLER UNIT TO THE WALL
1. Remove the remote controller 1 lower case.
(Insert a fl at-tipped screw driver or similar tool 2 to
3 mm into one of the gaps at the bottom of the case,
and twist to open. Refer to the illustration at right.)
Be careful not to damage the lower case.
2. Do not remove the protective tape which is affi xed
to the upper case circuit board when remove the
remote controller lower case.
3. Secure the lower case to an outlet box or wall. Refer
to (A) or (B) instructions below depending on your
choice of cable installation.
4. Be sure to use only the screws provided.
5. Do not over tighten the screws, as it may result in
damage to the lower case.
A. IF REMOTE CONTROLLER CABLE IS EMBEDDED
Remark
1. Embed an outlet box (JIS C 8336) into the wall. Outlet box maybe purchased
separately. Medium size square outlet box (obtain locally)
Part No. DS3744 (Panasonic Co., Ltd.) or equivalent.
2. Secure the remote controller lower case to the outlet box with the three accessory
screws 3. Make sure that the lower case is fl at against the wall at this time, with
Length (9.9m)
no bending.
Installing the remote controller
3. Pass the remote controller cable into the box.
to an outlet box (embedded
4. Route the remote controller cable inside the lower case through rear feeding-out
cable)
direction.
Installing the remote controller 5. Insert fi rmly the connector of remote controller cable to connector (CN-RMT) in
to the wall
the upper case circuit board. (Refer to the illustration at below.)
(exposed cable)
6. Secure the remote controller upper case to the lower case with the tabs
provided.
Holder for remote controller
cable at control board
Upper case
• Tighten remote controller cable
Upper tab
with holder
• Installing the remote controller Connector
cable to control board (only (CN-RMT)
applicable for wall mounted
models) Lower case
Screws 3
Installing the green wire to
grounding location
Lower tab
Remote controller cable
Rear
30mm
feeding-out
or more
position
30mm 30mm
or more or more Lower
Remote
case
controller
lower case
120mm
B. IF REMOTE CONTROLLER CABLE IS EXPOSED
or more
Rib
Screws 4
Remote
controller
lower case
1. Install the remote controller lower case to the wall with the three accessory
screws 4.
2. Fasten the screws properly until screw head is lower than the rib and reach the
base of remote controller lower case to ensure they do not damage the PCB
inside the remote controller 1.
Upper case
3. The feeding-out direction for the remote controller cable shall be via the top side.
Screw
4. Use nipper to cut a notch at the upper case.
driver
5. Route the remote controller cable inside the upper case. (Refer to the illustration
at right).
Gap
Lower case
6. Insert fi rmly the connector of remote controller cable to connector (CN-RMT) in
the upper case circuit board. (Refer to the illustration at right)
7. Secure the remote controller upper case to the lower case with the tabs
provided.
Screws 3 or Screws 4
Wall
CAUTION
When the wall is hollow, please
be sure to use the sleeve for
remote controller cable to
prevent dangers caused by
Remote
controller
mice biting the cable.
cable
Outlet box (JIS C 8336)
Connector
(CN-RMT)
Upper case
Upper case
Lower case
Tab
Remote controller cable
Remote controller cable
Upper case
Upper tab
Connector
Lower case
(CN-RMT)
Lower case Tab
Screws 4
Lower tab
Wall Upper case
Wall
Lower case
ACXF60-47050-AA
Notch
Connector
(CN-RMT)
Upper
case
