Before operating the unit, read these Operating Instructions thoroughly and keep them for future reference.
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
z Safety precautions .............................................3
z Part names ..........................................................4
• Control panel / Top screen .......................................... 4
• Screen display ............................................................. 5
• Operation guide ........................................................... 5
z Basic operations ................................................6
z Menu list ..............................................................9
z ECONAVI function ............................................10
z nanoe™ X function ..........................................13
z Filter sign ..........................................................15
z Outing function ................................................16
z Touch sound/Contrast/Backlight ....................18
z Language/Display mode ..................................19
z Setting information list ....................................20
z Troubleshooting ...............................................22
z Specifications ...................................................24
Operating Instructions
Wired Remote Controller
CZ-RTC6
Model No.
Installation Instructions
Separately Attached.
WEB-ACXF55-26730
Page
F0620-0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CZ-RTC6

Summary of Contents for Panasonic CZ-RTC6

  • Page 1: Table Of Contents

    Operating Instructions Wired Remote Controller CZ-RTC6 Model No. Page z Safety precautions ..........3 z Part names ............4 • Control panel / Top screen .......... 4 • Screen display ............. 5 • Operation guide ............5 z Basic operations ..........6 z Menu list ..............9 z ECONAVI function ..........10...
  • Page 2 Thank you for purchasing the Panasonic wired remote controller. z Read the Operating Instructions carefully for safe use. This manual describes the Operating Instructions of the wired remote controller. Read this manual as well as operating instructions supplied with indoor units and outdoor units.

  • Page 3: Safety Precautions

    Safety precautions WARNING CAUTION This symbol refers to a hazard or unsafe This symbol refers to a hazard or unsafe practice which can result in severe personal practice which can result in personal injury or injury or death. product or property damage. Matters to be observed Prohibited matters WARNING...

  • Page 4: Part Names

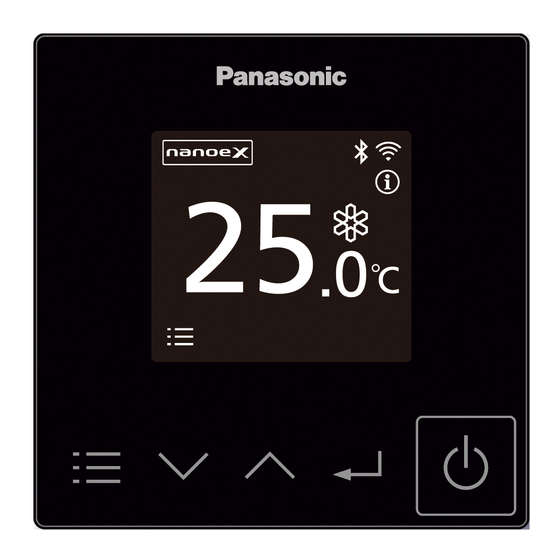

    Part names Control panel / Top screen Appears when ECONAVI is being set to ON. (ECONAVI settings are possible only when fitted with ECONAVI panel/ECONAVI sensor.) Under operation of nanoe™ X Operation Set temperature mode Check the current operating status (P.6) LCD screen Start/Stop...

  • Page 5: Screen Display

    Part names Screen display „ Internal cleaning in process „ Internal drying in process z To stop the z To stop the internal cleaning internal drying operation operation Press Press z To resume z To resume operation operation Press Press „...

  • Page 6: Basic Operations

    Basic operations Start operation. Press • Pressing after recovery from mains power failure will resume operation with the contents before mains power failure has occurred. • It is possible to set the screen in step 2 as the top screen when starting operation. (P.19 “Display mode”) In that case, skip step 2 below.
  • Page 7 Basic operations Set temperature Change the setting. (0.5 °C steps) Press → (Press to finish.) • Cool/Dry : 18.0 °C to 30.0 °C • Heat : 16.0 °C to 30.0 °C • Auto : 17.0 °C to 27.0 °C Operation mode (e.g. Cool, Heat, etc.) Change the setting.
  • Page 8 Basic operations Flap Change the setting. Press → (Press to finish.) : Swing • Pressing during swing can stop the flap at your preferred position. • The swing and airflow direction on the remote controller is not synchronised with the flap movement. •...

  • Page 9: Menu List

    Menu list Total number of items Turns the ECONAVI function ON/ 1 ECONAVI* P.10 Number for the selected item OFF. Turns the nanoe™ X function ON/ 2 nanoeX* P.13 OFF. 3 Filter sign Resets the time to filter cleaning. P.15 Prevents the room temperature from rising too high (or dropping 4 Outing function...

  • Page 10: Econavi Function

    ECONAVI function This function is available by attaching an optional ECONAVI sensor. The ECONAVI sensor detects human activity and conserves energy based on the activity level. WARNING Do not use the ECONAVI function in a room with disabled persons or infants only. Due to their limited motions, the ECONAVI sensor may judge no person is present, causing the indoor unit to stop the operation.
  • Page 11 ECONAVI function Note z ECONAVI can be set using the separately sold ECONAVI panel or by connecting the holder on the wall. z Even when target temperature is changed through the ECONAVI function, the set temperature shown in the remote controller does not change. z Even when Cooling/Heating is changed to Fan through the ECONAVI function, the operation mode shown in the remote controller will still be Cooling/Heating.
  • Page 12 ECONAVI function ECONAVI Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. • To return to the top screen, press Select [ECONAVI]. Press → Select [ON] or [OFF]. Press → →...

  • Page 13: Z Nanoe™ X Function

    nanoe™ X function Display during operation of nanoe™ X : Under operation of nanoe™ X nanoe™ X For a fresher and cleaner environment nanoe™ X generates negative ions using the air in the room to give a healthy air. It also reduces the smell in the room, and constrains propagations of mold and bacteria.
  • Page 14 nanoe™ X function nanoe™ X Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. • To return to the top screen, press Select [nanoeX]. Press → Select [ON] or [OFF]. Press →...

  • Page 15: Filter Sign

    Filter sign When the cleaning time comes, the icon shown on the right appears on the top screen. Filter sign reset Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. •...

  • Page 16: Outing Function

    Outing function This function prevents the room temperature from rising too high (or dropping too low) when no one is in the room due to outing, etc. General Performance of the Outing Function Outing function upper limit COOL / DRY 1 °C The air conditioner starts operation when the room temperature increases up to –1 °C of the...
  • Page 17 Outing function Outing function Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. • To return to the top screen, press Select [Outing function]. Press → Select [Enable/disable]. Press → Select [Enable].

  • Page 18: Touch Sound/Contrast/Backlight

    Touch sound/Contrast/Backlight Steps 1 and 2 are common operations for each item. Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. • To return to the top screen, press Select the item to set. Press →...

  • Page 19: Language/Display Mode

    Language/Display mode Steps 1 and 2 are common operations for each item. Display the menu screen. „ When stopped Press „ When operating Press repeatedly until the menu screen is displayed. • To return to the top screen, press Select the item to set. Press →...

  • Page 20: Setting Information List

    Setting information list This provides the meanings of setting information icons. Display the setting information screen. Press on the top screen. (Press and hold for 4 seconds or more.) Select the icon. Press → • Only icons currently being displayed on the screen are displayed here.
  • Page 21 Setting information list „ Setting information icon list Icon Description Page The indoor unit is stopped or slight blow operation is in process. – The indoor unit is turned on after a problem such as a power failure is – resolved.

  • Page 22: Troubleshooting

    Troubleshooting If operation does not start by pressing Check the following before asking for repair. When the [START/ z Being centrally controlled, operation is not STOP is prohibited.] possible. message is displayed z After recovery from blackout, press again. Blackout? →If operation does not start, turn off the circuit breaker and consult the dealer of purchase about the symptom and Model No.
  • Page 23 Troubleshooting The remote controller z Faulty sensor or incorrect installation. screen displays →Turn OFF the ECONAVI function with the remote controller (P.12) and contact the retailer “ ” “ ”. or point of purchase with the Model No. and (alternately) problem.

  • Page 24: Specifications

    Specifications Model No. CZ-RTC6 Dimensions (H) 86 mm x (W) 86 mm x (D) 25 mm Weight 0.09 kg Temperature/ 0 °C to 40 °C / 20% to 80% (No condensation) Humidity range * Indoor use only. Power Source DC16 V (supplied from indoor unit)
  • Page 25 Panasonic service center when disposing of this product. Customer care number ( Toll free ) : 1800 103 1333 ,1800 108 1333 Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html.
  • Page 26 Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
  • Page 27 Информация для пользователей в РФ < Предупреждение > Следуйте нижеприведённым правилам, если иное не указано в других документах. 1. Устанавливайте прибор на твёрдой плоской поверхности, за исключением отсоединяемых или несъёмных частей. 2. Хранить в сухом, закрытом помещении. 3. Во время транспортировки не бросать, не подвергать излишней вибрации или ударам о другие предметы. 4.
  • Page 28 +7 (727) 330-88-07 – Для звонков из г. Алматы и Киргизстана. 8-800-0-809-809 – бесплатный звонок с городских и мобильных телефонов местных сотовых операторов в пределах Казахстана. Authorized representative in EU Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Panasonic Corporation http://www.panasonic.com WEB-ACXF55-26730 ©...
