Openplan Systems XPAND REACH Assembly Instructions

Single bench–multi station

Hide thumbs Also See for XPAND REACH:

Download this manual

XPAND REACH

Single Bench – Multi Station Assembly Instructions

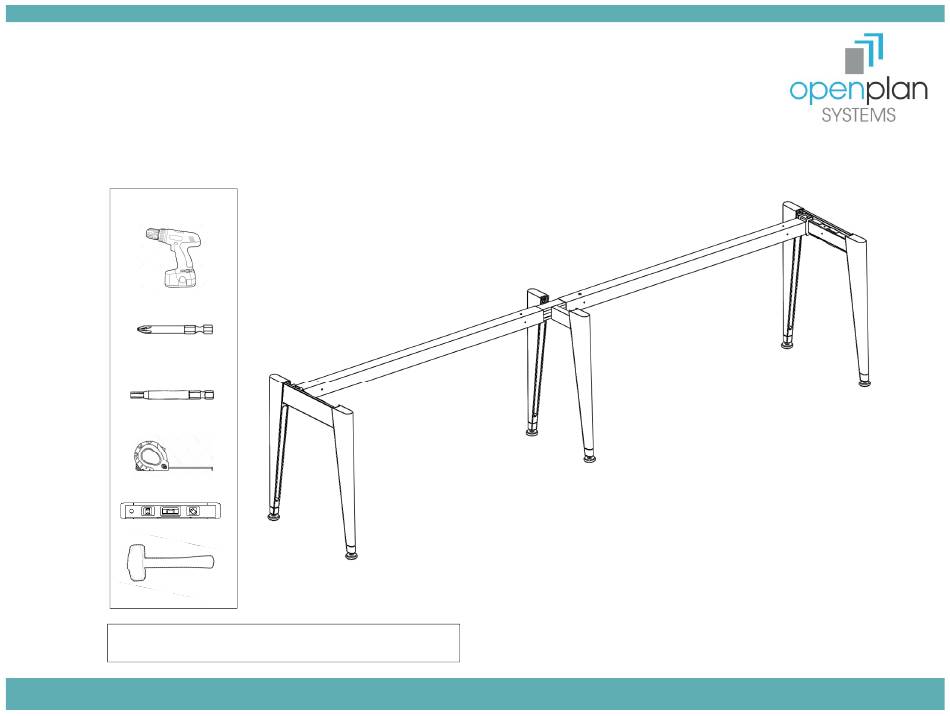

Tools Required

Cordless Drill

Philips bit with extension

for Work Surface screws

(XP-Screw-WS)

3/16 Hex drive bit

for XP-Screws

Measuring Tape

Level

Rubber Mallet

For additional assembly support, refer to www.openplan.com

or contact 844.OPS.OPS1

www.openplan.com | 844.OPS.OPS1 | sales@openplan.com

Need help?

Do you have a question about the XPAND REACH and is the answer not in the manual?

Page 1 XPAND REACH Single Bench – Multi Station Assembly Instructions Tools Required Cordless Drill Philips bit with extension for Work Surface screws (XP-Screw-WS) 3/16 Hex drive bit for XP-Screws Measuring Tape Level Rubber Mallet For additional assembly support, refer to www.openplan.com or contact 844.OPS.OPS1...
Page 2 XPand Reach – Single Station-Multiple Stations XPand Parts Used for Assembly Item Part Part Description Image Item Part Part Description Image name name XP-LA Leg Assembly XP-SB-XX Stretcher Bar, XX” XP-SB- Stretcher Bar Bracket Bracket XP-WSSA- Work Surface Support 24-30 Arm, Single Leg Rail, XX”...
Page 3 XPand Reach – Single Station-Multiple Stations XPand offers two types of end legs, Tapered legs and Rectangular legs. Though the legs look different, the assembly process is same. Step 1: Prepare a large floor space to put the XPand order together. Unpack the...
Page 4 XPand Reach – Single Station-Multiple Stations Step 5: Assemble the Stretcher Bar (XP-SB-XX) to the XP-SB-Bracket using (2) XP-Screws. Note: The Stretcher bar is 5” shorter than the specified size. For example, XP-SB-60 is actually 55” long. Step 6: Assemble a Mid Leg...
Page 5 XPand Reach – Single Station-Multiple Stations Step 7: Assemble the Mid-Leg Assembly (XP-MLC-Single) to the Stretcher Bar using (2) XP-Screws. Step 8: Repeat these steps 6 and 7 to assemble multiple stations in a run, using the XP-MLC-Single to join...
