EVOLUTION GAS STEAMER
INSTALLATION & OPERATOR MANUAL
IMPORTANT WARRANTY INFORMATION
WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED,
COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO
ACTIVATE THE LIMITED WARRANTY.
These installation instructions have been prepared for qualified gas and
electric equipment installation personnel, who should perform the installation,
initial field start-up and complete the equipment adjustments described in this
manual.
Connection-Less Model
Connected Model Double Stack
Advertisement
Related Manuals for AccuTemp EVOLUTION
Summary of Contents for AccuTemp EVOLUTION

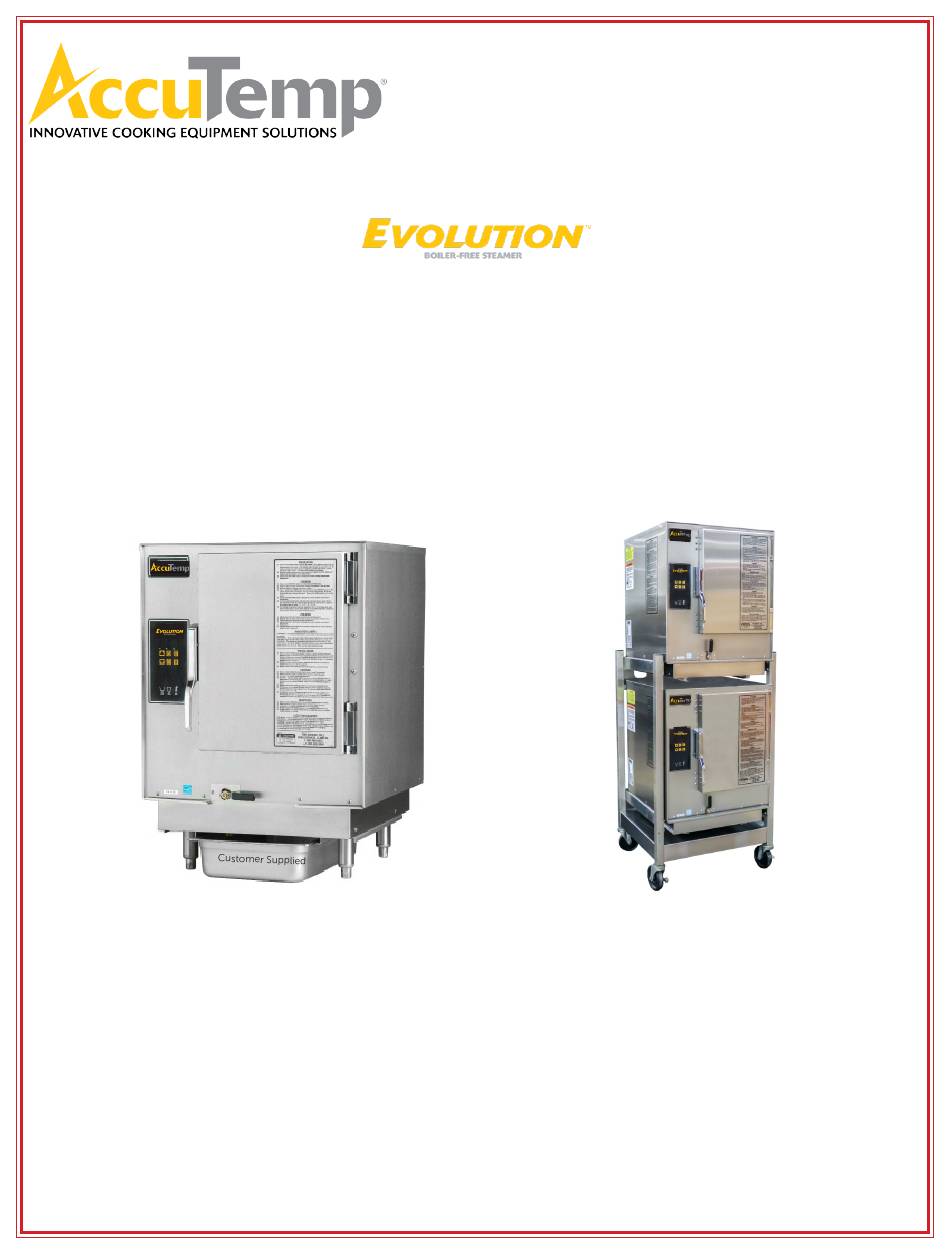

- Page 1 EVOLUTION GAS STEAMER INSTALLATION & OPERATOR MANUAL Connection-Less Model Connected Model Double Stack IMPORTANT WARRANTY INFORMATION WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED, COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO ACTIVATE THE LIMITED WARRANTY.
- Page 2 In order to establish full compliance with Proposition 65, a yellow warning label has been attached to each gas fired unit manufactured by AccuTemp Products,Inc. Carbon monoxide would not be present in concentrations that would pose a “significant risk”...
- Page 3 TABLE OF CONTENTS SAFETY WARNINGS INFORMATION PAGE 2 START UP FORM PAGE 3 GENERAL INFORMATION PAGE 5 INSTALLATION PAGE 7 OPERATION - USE PAGE 16 OPERATION - CLEANING PAGE 20 TROUBLESHOOTING PAGE 22 SERVICE PAGE 23 PREVENTATIVE MAINTENANCE CHECKLIST PAGE 24 WARRANTY PAGE 25 DOCUMENT HISTORY...
- Page 4 IMPORTANT FOR YOUR SAFETY The safety instructions listed below on this page should be posted in a prominent location as a reminder of safe practices as well as recommended actions to follow in the event of an equipment or facility utility issue. WARNING In the event a gas odor is detected, shut down all appliances at the main gas shut-off valve and contact the local gas company or gas supplier service.
- Page 5 An external regulator should not be used unless the supply gas pressure is more than 0.5 psig/14”WC • If the altitude is greater than 2,000 feet above sea level, contact the AccuTemp Technical Services Department to verify the correct orifice size for main burner.
- Page 6 EVOLUTION Gas Steamer Start-Up Form (continued) 8. What is the Lenth and Width of the Gas Supply Line L 9. Gas Pressure measurements Natural Gas: Static WC Dynamic WC (Dynamic should be 3.5WC) Dynamic pressure should be 3.5”WC (Regulator valve pressure tap - 1/8NPT)
- Page 7 Chef expert advisory service. • unchanged, will result in minor or moderate injury We hope that you enjoy working with AccuTemp equipment and that you always have many satisfied guests. NOTE Advises reader of information or instructions vital to the...
- Page 8 2. EQUIPMENT DATA PLATE 2.1 Labeling Model: A B CCC D E FFF G H I J K Where: A is the base model N = Natural Gas, P = Propane B is the size of the unit: 6 pan CCC is the supply Voltage D is the number of phases: 1 or 3 E is the control series D=Manual Fill, E=Autofill...
- Page 9 3.5 Stand Installation If an AccuTemp Evolution Gas Steamer Stand is used ensure the When moving the equipment manually make sure there are floor is level and place the two locking casters to the “ON” posi- enough people for the task as the equipment is heavy.
- Page 10 Evolution steamer on the horizontal mounting brackets, ensuring that the (4) mounting holes on the underside of the Evolution are lined up with the mounting holes on the brackets. Then, using a 7/16” wrench, fasten one pair of the 1/4”-20 hex bolts and 1/4”...
- Page 11 3.6 Steamer Connections The Evolution Gas Steamer is available in a connected and FIGURE 6: MANUAL FILL UNIT ON SINGLE STAND connection-less models. Both the connection-less and connected model will require a gas connection and an electrical connection. CONNECTED UNITS:...
- Page 12 STATIC pressure will be present. Once unit attempts ignition, the main valve will open and The Evolution Gas Steamer is manufactured for the use of the DYNAMIC pressure will register on the manometer. The DYNAMIC pressure must be set to NG:3.5 inch WC. LP gas indicated on the data plate.
- Page 13 3.8.4 Flame Sense Rectification The Evolution Gas Steamer utilizes a flame sensing circuit to determine if the system has proper combustion. When the system is turned on, gas is sent to the burner and an electronic ignition tries to ignite the burner. The ignition module then checks to see if flame is established in the burner.
- Page 14 The installation requires a check valve (or other approved anti-back flow/ anti-siphon device) in all supply lines in accor- dance with and as required by local, state and national health, sanitation and plumbing codes. AccuTemp does NOT provide a check valve included with the steamer. •...
- Page 15 3.9.3 Condensate Rail Installation (Auto-Fill only) • The condensate pan is placed inside the cooking chamber during shipping, remove the rail from the chamber. • Place under steamer making sure pan’s mounting plate is fitted into the drain pan rails (Figure 12 & 13). FIGURE 12 FIGURE 13 Condensate Pan...
- Page 16 Any in-field modifications made without written authorization be used every six feet to prevent long runs from sagging. from AccuTemp Products, Inc. will void all written and oral war- ranties. A pipe union should be installed next to the steamer to permit the vent to be easily disconnected.
- Page 17 Rotate factory Extension Sloping Downwards (FIGURE 15) FIGURE 15 - USING RIGID elbow to point PIPING downwards Use nominal ¾” or larger inside diameter (ID) to prevent 6” - 12” Long - 3/4” Diameter flow restrictions. brass pipe (both ends threaded male) Pipe should slope downwards from the steamer vent to a floor drain to allow water condensing in it to run...
- Page 18 DRAIN PAN - CUSTOMER SUPPLIED 4.1 Operation Introduction The AccuTemp Evolution gas steamer uses the time proven method of cooking with steam. Once the cooking time expires, the steamer can be set to the “Hold Mode”. In this mode, the controller regulates the internal temperature.
- Page 19 FIGURE 19 OPERATOR DISPLAY SET TIMER INCREASE COOK or HOLD VARIABLE DECREASE DISPLAY VARIABLE TEMPERATURE ON/OFF OVER- TEMPERATURE LAMP HIGH WATER LAMP LOW WATER LAMP MP4010-2411...
- Page 20 4.3 Control Program Mode To enter Program Mode for the controller function parameters, turn the unit OFF then depress and hold the DOWN arrow and DSPLY TEMP keys for a minimum of 5 seconds. The control is now in Program Mode and LED1,2 and 3 will blink, and the keypad will be reconfigured as shown in the following table: Program # Program Title...
- Page 21 4.4 Daily Preparation for Use - Connected 4.3 Partial Loads Preparing the Evolution Connected model for use each day The Evolution is designed to cook quickly with exceptional requires very little time and effort. Simply verify that the steamer pan-to-pan uniformity on full loads of food. Excellent pan-to-...
- Page 22 4.5 Daily Preparation for Use - Connectionless Model 4.6 Cleaning Preparing the Evolution Connection-Less model for use each Do not use a water jet or pressure washer to clean the day requires very little time and effort. Simply verify that the steamer.
- Page 23 4.6.3 How to to Protect Stainless Steel AccuTemp Steamers are made from high quality stainless steel. To protect the equipment, we would recommend the following steps: Use the proper tools. Never use sandpaper on stainless steel, as it can cause scratches in the steel, allowing corrosion to form.
- Page 24 When the steamer automatically refills the fresh water, the temperature of the steamer will drop. The steamer should reheat quickly. • If -99F or -1F appears call AccuTemp for assistance. • If frozen product is added the temperature will take time to recover.
- Page 25 Conventional Steamers require scheduled maintenance (such as boiler maintenance) at frequent intervals) The Evolution design doesn’t require this type of scheduled maintenance. It is recommended that you schedule a yearly review of the Evolution with a AccuTemp Authorized Service Representative to keep your steamer in optimal...
- Page 26 PREVENTATIVE MAINTENANCE Note: Accutemp approved service providers should complete any tasks involving access to gas and electrical systems. PM TASK DECRIPTION DAILY ANNUAL Verify that the Steamer is level. Verify the operation of the control panel. When a button is pressed the display should register the input and a beep should sound.
- Page 27 In no event shall AccuTemp be liable for special, incidental, or consequential damages, or damages in the nature of penalties.
- Page 28 MP4010-2411...
- Page 29 AccuTemp product may be covered by one or more US Patents. See www.accutempip.net INFORMATION IMPORTANT SERVICE INFORMATION AccuTemp Product, Inc. Technical & Customer Support Technician is available Monday thru Sunday, 7:00am to 7:00pm EST. 800.480.0415 or 260.469.3040 • Phone - 800.480.0415 or 260.469.3040 •...
