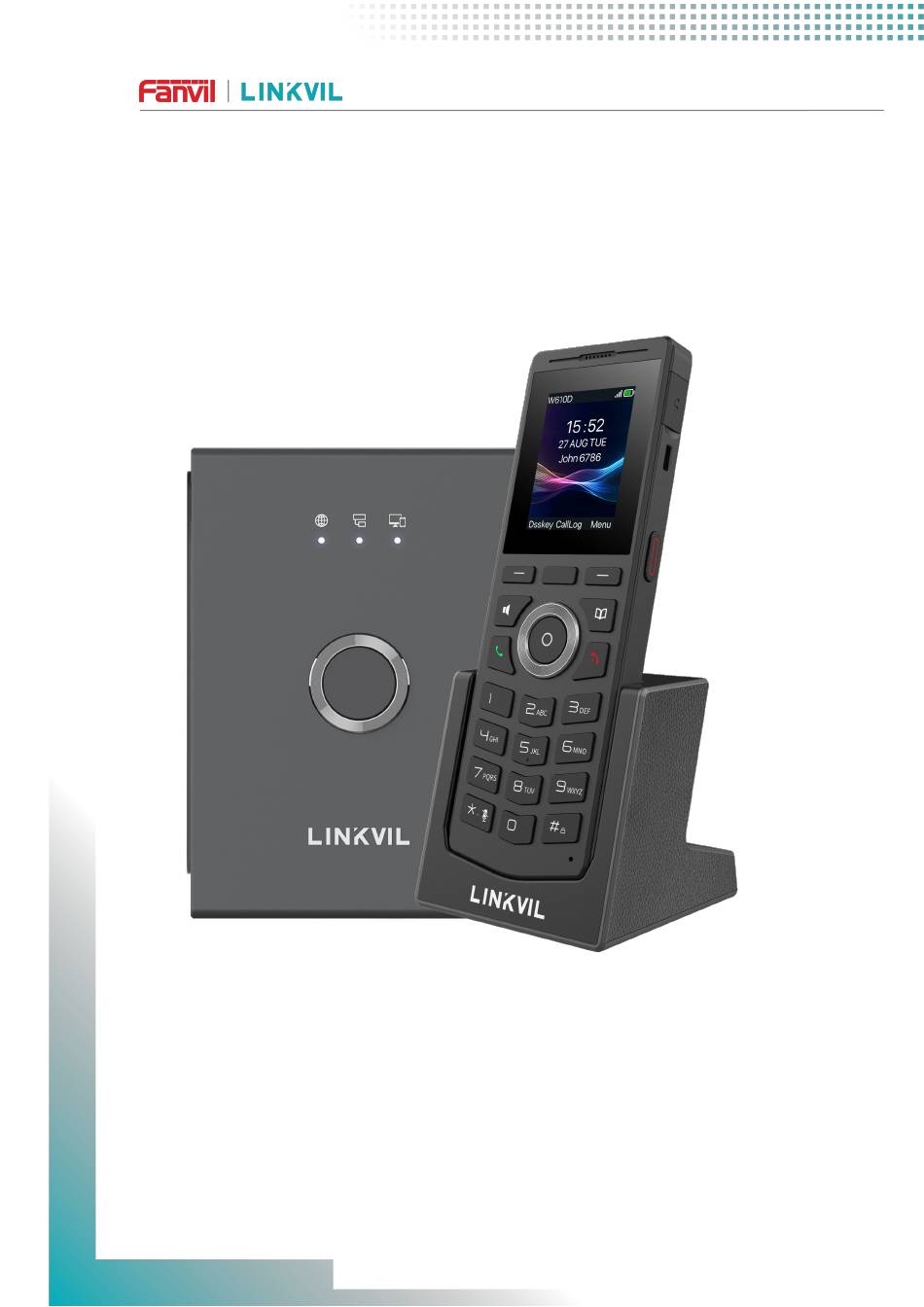

DECT W710P (W710D+W610D) User Manual
DECT W710P (W710D+W610D)
User Manual
Version: 1.0.0 | Date: 2024/09/13
1 / 98

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINKVIL DECT W710P and is the answer not in the manual?

Questions and answers

Related Manuals for Fanvil LINKVIL DECT W710P

Summary of Contents for Fanvil LINKVIL DECT W710P

  • Page 1 DECT W710P (W710D+W610D) User Manual DECT W710P (W710D+W610D) User Manual Version: 1.0.0 | Date: 2024/09/13 1 / 98...
  • Page 2 DECT W710P (W710D+W610D) User Manual Directory Directory ............................2 1 Safety Instructions ........................8 1.1 Safety Instructions ......................8 1.2 Battery Warning .......................9 2 Overview ............................. 10 2.1 Summary ........................10 2.2 Specification Introduction .................... 10 2.2.1 W710D Specification Introduction ..............10 2.2.2 W610D Specification Introduction ..............11 3 Installation ..........................13 3.1 Packing Contents ......................13 3.1.1 W710D Packing Contents ..................
  • Page 3 DECT W710P (W710D+W610D) User Manual 4.8 Access W710D Webpage ................... 27 4.8.1 Get IP Address ..................... 27 4.8.2 Access Webpage ....................27 4.9 W710D SIP Setting .......................27 5 Terminal Management ......................29 5.1.1 W710D Select Country/Region ................. 29 5.1.2 Set PIN code for W710D ..................29 5.2 W610D connection network ..................
  • Page 4 DECT W710P (W710D+W610D) User Manual 6.7.2 Ringing Mute ......................39 6.8 Call Hold/Resume ......................39 6.9 Call forwarding .......................39 6.10 Call Transfer ........................ 40 6.10.1 Blind Transfer ..................... 40 6.10.2 Semi-Attended Transfer ................... 40 6.10.3 Attended Transfer ....................41 6.11 Call Waiting ........................41 6.12 Conference ........................
  • Page 5 DECT W710P (W710D+W610D) User Manual 8.4 Blocked List ........................52 8.5 Allowed List ........................52 9 Call history ..........................53 10 Advanced Features ........................54 10.1 Time Plan ........................54 10.1.1 W710D Time Plan ....................54 10.1.2 W610D Time Plan ....................55 10.2 Action Plan ........................55 10.3 Maintenance ........................
  • Page 6 DECT W710P (W710D+W610D) User Manual 13.5 VLAN ..........................76 14 W610D Connecting Peripherals ..................78 14.1 USB flash drive ......................78 14.2 Wired Headset ......................78 14.3 PTT Headset ....................... 78 14.3.1 PTT Headset Side key ..................79 14.3.2 PTT Headset Speed Dial key ................79 14.4 Bluetooth Headset ......................
  • Page 7 DECT W710P (W710D+W610D) User Manual 17.4 Appendix IV - W610D Menu Icons ................94 17.5 Appendix V - W610D Keyboard Character Query Table ........95 17.6 Appendix VI - W710D LED Status Definition ............97 7 / 98...
  • Page 8 DECT W710P (W710D+W610D) User Manual Safety Instructions 1.1 Safety Instructions Please read the following safety notices before installing or using this unit. They are crucial for the safe and reliable operation of the device. Please use the external power supply that is included in the package. Other power ...
  • Page 9 DECT W710P (W710D+W610D) User Manual 1.2 Battery Warning To prevent the battery pack from leaking, overheating and catching fire.Please  observe the following precautions: Soft aluminum packaging foil is easily damaged by sharp edged parts such as nickel  sheets, pins and needles. Do not hit the battery pack with any sharp parts.
  • Page 10 (W710D) and Handset (W610D). The DECT Single Cell does not support roaming and only includes two roles: Base and Terminal. In the Fanvil W710P system, W710D is both the Base and the Manager of the system. In the Fanvil DECT W710P System, a DECT Base can support the connection of 10 Handset.
  • Page 11 DECT W710P (W710D+W610D) User Manual Number of Handset Concurrent Calls Indoor: 50m Signal Range Outdoor: 300 m SIP Account SIP Server Internal Extension Call History 20000 1880~1900MHz（European/South Africa）,default item 1920~1930 MHz（America） 1893~1906 MHz（Japan） 1880~1895 MHz（Taiwan,China） Frequency band 1910~1920 MHz（Brazil） 1786~1792 MHz（South Korea） 1910~1930 MHz（Latin America）...
  • Page 12 DECT W710P (W710D+W610D) User Manual Call logs Virtual Dsskey 8x2=16 Talk Duration Standby Duration 160h 12 / 98...
  • Page 13 DECT W710P (W710D+W610D) User Manual Installation 3.1 Packing Contents W710D Packing Contents 3.1.1 PA3 * 8mm screw * PA4 * 30mm screw * Base Station Screw fixing seat * 2 Power Adapter (optional) Quick Installation Manual W610D Packing Contents 3.1.2 Power Adapter Charging Base Quick Start Guide...
  • Page 14 DECT W710P (W710D+W610D) User Manual 3.2 Install W710D Step 1: Prepare before installation 1. Voltage check Check whether the voltage of DC power supply or external power supply is within the working range of this product (5V/1A). 2. Adjust the antenna (Figure 1) Press the heads of the antennas at both ends of the device(marked with red lines) with slightly, the antennas will automatically pop out, and then rotate the two antennas clockwise to the desired angle (the maximum rotatable angle is 190°).
  • Page 15 DECT W710P (W710D+W610D) User Manual 1. Close the back cover of the device after plugging in the cable, and punch the PA3*8mm Screw into the hole in the back cover (Figure 3). 2. Wall mounting can be achieved by hanging the equipment on a screw suitable for the size and distance of the two holes above and below the back shell.
  • Page 16 DECT W710P (W710D+W610D) User Manual Removing the rear case Installing the battery Installing the rear case Battery Replacement 3.3.2 1. Remove the rear case: Remove the rear case of the whole machine with A. Little force from the handset position of the rear case of the main unit. 2.
  • Page 17 DECT W710P (W710D+W610D) User Manual "click" sound during the process), and ensure that there is no gap, it means that the back cover is fastened. Remove the rear case Remove the Install the battery battery Install the back cover 17 / 98...
  • Page 18 DECT W710P (W710D+W610D) User Manual Connect the charging base 3.3.3 Note: Please use the power adapter provided by Fanvil (5V/2A). A third-party power  adapter may damage the handset. Check the charging status in the top-right corner of the LCD screen.
  • Page 19 DECT W710P (W710D+W610D) User Manual Introduction to the User 4.1 Instruction of Keypad Instruction of Keypad for W710D 4.1.1 index name Description Indicates the WAN connection status. On: Successfully connected to the local area network  WAN LED Off: No network cable inserted ...
  • Page 20 DECT W710P (W710D+W610D) User Manual Note: In the Single-cell system, the W710D is both the Manager and the Base, and the ROLE LED is always on. DECT LED Flash: There is a active call in the system ③ Long press the reset button to restore the device to its Reset key ④...
  • Page 21 DECT W710P (W710D+W610D) User Manual configuration interface, press this key to increase the volume of the ringtone; On the call or volume adjustment interface, press this key to increase the volume. In standby mode, on the ringing and ringing configuration interface, press this key to reduce the Volume Key - volume of the ringtone;...
  • Page 22 DECT W710P (W710D+W610D) User Manual These 12 standard keys provide standard device key functions. At the same time, long pressing certain keys can trigger the provision of special functions. Press and hold the key # to lock the device (enable DTMF Key ⑬...
  • Page 23 DECT W710P (W710D+W610D) User Manual After startup under factory settings, the device will pop up a language selection box. After selecting the corresponding language, the user can click [OK] to confirm, or click [Back] to select the default language (default is English). Set language when standby for W610D Set the language during standby, go to [Menu]>>...
  • Page 24 DECT W710P (W710D+W610D) User Manual Different countries/regions have different frequency bands, and users must select the corresponding country/region in order for the device to operate normally. 4.5 W610D Standby Interface The left figure shows the default interface when the gamepad is not connected to ...
  • Page 25 DECT W710P (W710D+W610D) User Manual In some screens, due to too many items or long text, the screen cannot be fully displayed. They will be combined into a list accompanied by scrolling icons. If the user sees a scrolling icon, they can use the up/down navigation keys to scroll through the list.
  • Page 26 DECT W710P (W710D+W610D) User Manual Network: Connect to Manager/Base network. Basic: Set personal preference settings. Contact: Access all contacts. Message: View voice mails and SMS servers. Call Log: Access the call history list. Features: Set call forwarding, auto answer, call waiting, DND, intercom, ban anonymous calls, and other functions.
  • Page 27 1. The computer is connected to the same local area network as W710D, and Device Manager is installed on the PC Device Manager:https://www.fanvil.com/service/doc/soft/tools/tools/ipscanner/index.html 2. Open the IP scanning tool (Device Manager) and click Rescan to obtain the IP of the W710D device in the local area network.
  • Page 28 DECT W710P (W710D+W610D) User Manual SIP account; By using an internal extension, there is no need to configure SIP server or other information. After the terminal device connects to Manager/Base, it automatically obtains the internal extension number. The SIP settings for W710D are carried out by the administrator of DECT system, and the steps for setting are as follows: 1.
  • Page 29 DECT W710P (W710D+W610D) User Manual Terminal Management W710D Select Country/Region 5.1.1 The administrator visits the webpage>>Network>>Connection Settings>>Connection Settings, selects the corresponding country or region where the device is located, and sets different operating frequency bands.. Note: Different countries/regions have different frequency bands, and users must select the corresponding country/region in order for the device to operate normally.
  • Page 30 DECT W710P (W710D+W610D) User Manual Manager/Base network. Batch import of devices: Visit the W710D Manager webpage>> [Handset]>>  [Maintenance]>, click Export to export the template. After editing the template and adding devices, click Import to import the device list. Note that the imported template must be UTF-8 encoded.
  • Page 31 DECT W710P (W710D+W610D) User Manual Contact management: Distribute and delete local contacts/ cloud phone book  contacts/ LDAP contacts, etc. for the terminal, please refer to 8 Phonebooks specific methods. View history: View and manage terminal call records on the Manager webpage. ...
  • Page 32 DECT W710P (W710D+W610D) User Manual W610D Call Features 6.1 Using Handset / Hands-free Speaker / Headset Using of Handset  Regarding the use of the handset: Users can press the green dial key to enter the number, then press the dial key or "#" key; Or enter the number first and then press the dialing key, the number will be dialed out.
  • Page 33 DECT W710P (W710D+W610D) User Manual Calling through a phone book: Access [Menu]>> [Contact], or press the  devicebook key to access the Local Contacts/Cloud Contacts/LDAP phonebook, select a contact, press Softkey-Option>> Dial /Hands-free key/Dial key, and call out the selected contact number. Calling through call log: Access [Menu]>>...
  • Page 34 DECT W710P (W710D+W610D) User Manual you need to set multiple Emergency Call Number, please use "," to separate them. 2. After setting the keyboard lock on the device, you can call the emergency call number without unlocking it. Redial 6.2.4 Users can use the redial button to redial the last dialed number.
  • Page 35 DECT W710P (W710D+W610D) User Manual is no call record, press the callback button and the device will prompt "Cannot process"). The callback steps are as follows: 1. Set up callback settings Set by administrator through W710D Manager  According to the steps in section 5.4 W710D Configuration Management, ...
  • Page 36 DECT W710P (W710D+W610D) User Manual account, click the edit button, and access the Basic Settings module>>Enable Hotline. Turn on the hotline, set the hotline number, and set the hotline delay time. 6.3 Answer incoming calls Manual answering 6.3.1 Idle state with incoming calls: Users can answer calls by pressing the Softkey - ...
  • Page 37 DECT W710P (W710D+W610D) User Manual 6.4 Reject incoming calls Manual rejection 6.4.1 When receiving a call, you can manually reject it by pressing the Softkey - Reject or on-hook key . Rejected calls will be displayed in the missed call list in the history list. Ban Anonymous Call 6.4.2 After enabling ban anonymous calls, the device will automatically reject anonymous calls...
  • Page 38 DECT W710P (W710D+W610D) User Manual 6.5 End Call After the user's call ends, they can press the Softkey - End key or on-hook key to end the call. 6.6 Dial Query The device defaults to enabling dial query function. Enter two or more digits of the number, and the dialing interface will automatically match the call history and contact number list.
  • Page 39 DECT W710P (W710D+W610D) User Manual Ringing Mute 6.7.2 Users can mute the ringing sound by long pressing the * key, or enable/diable the mute sound by using the volume up/down key. After mute for incoming calls, the device displays a ringtone mute icon in the upper right corner. When there is an incoming call, the device displays the call interface but does not ring.
  • Page 40 DECT W710P (W710D+W610D) User Manual Call forwarding can be set by the administrator on the Manager webpage, or by the user on the terminal. Set by administrator through W710D Manager  Visit the Manager webpage>>[SIP Account]>>[SIP Account]>>[Basic settings],  set the forwarding type, number, and time. Configure on terminal devices ...
  • Page 41 DECT W710P (W710D+W610D) User Manual number to be transferred, or presses the contact key or history key to select the number. When the call key is pressed, and the third party is not answering, the user presses the transfer key on the call interface to perform Semi-Attended transfer or press the end key to cancel Semi-Attended transfer.
  • Page 42 DECT W710P (W710D+W610D) User Manual Access the Manager webpage>> [SIP Account]>> [SIP Account]>> [Basic  Settings]>and set the conference mode. Local Conference 6.12.1 Users need to set the conference mode to local for local conference.W610D support 6 ways local conference. Two methods for creating local conference The device already has two calls.
  • Page 43 DECT W710P (W710D+W610D) User Manual The maximum number of attendees for server conference varies depending on the  server. 43 / 98...
  • Page 44 DECT W710P (W710D+W610D) User Manual W610D Advanced Call Feature 7.1 Call Park Users can suspend a call during a call and then retrieve the call on this or other devices. Note: The call park function requires support from the server. Please confirm with the ...
  • Page 45 DECT W710P (W710D+W610D) User Manual 7.2 Intercom After enabling the intercom function, the device can auto answer incoming calls in intercom mode. Make Intercom Call 7.2.1 Regular intercom 7.2.1.1 To use the intercom function, it is necessary to set the function key to the Memory - Intercom key in advance.
  • Page 46 DECT W710P (W710D+W610D) User Manual access the created configuration file>>[Function Keys], configure the PTT button with the PTT intercom type, set the key value and save it, assign the configuration to the corresponding device and update it. Set PTT intercom function key ...
  • Page 47 DECT W710P (W710D+W610D) User Manual SMS icon on the standby screen interface. Send SMS  Visit [Menu]>> [Message]>> [SMS], create a new message, select the route and the number to send it to After editing, click send to proceed View SMS ...
  • Page 48 DECT W710P (W710D+W610D) User Manual [OK] key to save the configuration. SIP1 (m/n) Line: "m" before parentheses represents unread voice mails, and "n"  represents the total number of voice mails. Call the voice mail number, enter the PIN code according to the prompt tone, and ...
  • Page 49 DECT W710P (W710D+W610D) User Manual Phonebook 8.1 Local phonebook Users can save contact information in their phone book and directly dial the contact's phone number in the device book. Users can open their phone book by pressing [Menu]>[Contact] or the preset key on the device [Contact]. By default, the device book is empty, and users can manually add or add contacts to the device book from their call history (or cloud phone book).
  • Page 50 DECT W710P (W710D+W610D) User Manual  Mobile  Other Number  Line  Ring type  Group Users can edit contacts by pressing the [Option]>> [Edit] key. To delete a contact, the user should first move the indicator to the contact they want to delete, press the [Option]>>...
  • Page 51 DECT W710P (W710D+W610D) User Manual can be downloaded from the cloud phone book server with just one click, making it very convenient for creating and maintaining contact lists. Note: Cloud phone was originally designed to ensure that its content is the latest version, and each time it is opened, it only temporarily downloads its contacts to the device.
  • Page 52 DECT W710P (W710D+W610D) User Manual Download the LDAP phone book 8.3.2 After the administrator has configured the LDAP phone book, the user can access the list of cloud phone books through W610D and access [Menu]>> [Contacts]>> [Cloud Contacts], where you can see the LDAP phone book configured. 8.4 Blocked List The device supports block lists.
  • Page 53 DECT W710P (W710D+W610D) User Manual Call history Viewing call logs on the device View call logs: The phone can store call logs (the number of stored calls varies  depending on the specifications). Users can click [Menu]>> [Call Log]>> [Local Call Log] to open call logs and view all incoming, outgoing, and missed call logs.
  • Page 54 DECT W710P (W710D+W610D) User Manual 10 Advanced Features 10.1 Time Plan Time Plan settings can be used to set a time point or a time period. A time point is when an action is executed at a certain moment, and a time period is when an action is executed at a certain time.
  • Page 55 Action Plan is a technology defined and designed by Fanvil for remote control and behavior linkage between Fanvil terminal devices and other devices. That is, when an event occurs on the Fanvil terminal, the terminal can execute an action that is completed according to a Plan rule.
  • Page 56 DECT W710P (W710D+W610D) User Manual Configuration parameter description: Item Description The action is when the rule for number configuration is triggered. The supported types are: Record: When the rule is triggered, the phone automatically Action activates the recording function. Mute: The phone automatically mutes when the rule is triggered. Answer: When the rule is triggered, the phone automatically answers incoming calls.
  • Page 57 DECT W710P (W710D+W610D) User Manual Visit the W710D webpage>>[System]>>[Configurations]>>[Import Configurations],  select the configuration file, click upload to import the configuration file. Clear The Tables Visit the W710D webpage>>[System]>>[Configurations]>>[Clear The Tables], select  the database list, move to the clear list, and click clear to clear the selected data. Factory Reset Visit the W710D webpage>>[System]>>[Configurations]>>[Reset Devices], and ...
  • Page 58 DECT W710P (W710D+W610D) User Manual W610D Web upgrades and online upgrades use “xxx.z” software, USB upgrades  and USB flash drive upgrades use “xxx.bin” files. Web page upgrade 10.3.2.1 W710D webpage upgrade Visit the W710D webpage>>[System]>>[Upgrade]>>[Software Upgrade], select the  W710D software version, click Upload, and upgrade the W710D software.
  • Page 59 DECT W710P (W710D+W610D) User Manual Set Update Interval. Enable Auto Upgrade and configure Update Interval the Update Interval. If the server has a new firmware, the phone will prompt for upgrade at the interval. Firmware Information Current Software Version It will show Current Software Version. Server Firmware Version It will show Server Firmware Version.
  • Page 60 DECT W710P (W710D+W610D) User Manual Release Note： Xxxxx Xxxxx Xxxxx After the update interval is reached, if the server has available TXT files and version files, W610D automatically detects the upgrade in the charging and non-call state; The W710D webpage displays the upgrade button available and the Release Note in the TXT file, which users can click to upgrade to the W710D version.
  • Page 61 TR069. If these four methods are configured simultaneously, the device will be upgraded based on the method obtained first. Transport protocol support: FTP, TFTP, HTTP, HTTPS. This article only briefly introduces Auto Provision. For detailed instructions, please refer to the document Fanvil Auto Provision. Configuration parameter description Items Description...
  • Page 62 DECT W710P (W710D+W610D) User Manual changed, phone will download and update. DHCP Option Confiugre DHCP option, DHCP option supports DHCP custom Option Value option | DHCP option 66 | DHCP option 43, 3 methods to get the provision URL. The default is Option 66. Custom Option value is allowed from 128 to 254.
  • Page 63 DECT W710P (W710D+W610D) User Manual 2. Update after reboot. 3. Update at Time interval. TR069 Enable TR069 Enable TR069 after selection ACS Server Type Select TR069 Serve type. ACS Server URL ACS server address ACS User ACS server username (up to is 59 character) ACS Password ACS server password (up to is 59 character) TLS Version...
  • Page 64 DECT W710P (W710D+W610D) User Manual 11 W610D preference settings 11.1 Time Setting Setting method: When the device is in standby mode, access the device function menu key [Menu]>> [Basic] key>> [Time&Date] key, use the up/down navigation keys to edit/time Parameters, and then press [OK] to save.
  • Page 65 DECT W710P (W710D+W610D) User Manual 11.2 Screen Setting Users can edit screen Parameters by accessing the function menu keys [Menu]>> [Basic]>> [Screen]. After editing, click [OK] to save. Backlight 11.2.1 Set the Backlight Active Level from 1 to 16 when in use, and switch the brightness ...
  • Page 66 DECT W710P (W710D+W610D) User Manual which defaults to 30 seconds. You can disable it or set it to 15 S/30 S/1 min/2 min/5 min/10 min/20 min/30 min. 11.3 Audio Setting Ringing Tone 11.3.1 Set ring type Access the device>> [Menu]>> [Basic]>> [Ring], edit the parameters for [Ringtone ...
  • Page 67 DECT W710P (W710D+W610D) User Manual Configuration Parameter description: Alert Info Ring Settings The value of notification message 1 to Set the value to specify the ring type. notification message 10 Ring Type Type1-Type8 Tone Settings 11.3.4 The administrator can set the prompt tone of the device through the ...
  • Page 68 DECT W710P (W710D+W610D) User Manual Set Acoustic Shield/Noise Cancellation Configured by the administrator in the W710D-Manager  According to the steps in 5.4 W710D Configuration Management, access the created profile >> [Settings] >> [Media Settings] >> [Noise Reduction], enable the Noise Cancellation or Acous Shield, save it.
  • Page 69 DECT W710P (W710D+W610D) User Manual 12 Function Keys Function keys can be set through terminal devices or configured through W710D web page management function keys. Configure function keys by administrator in W710D Manager  According to the steps in section 5.4 W710D Configuration Management, access the created configuration file>>[Function Keys], configure the DSSKEY or PTT...
  • Page 70 DECT W710P (W710D+W610D) User Manual to the subscribed extension without hanging up the current call. BLF/BXFER: During a call, press this button to blindly redirect the call to  the subscribed extension. BLF/AXFER: During a call, press this button to transfer the call attendance ...
  • Page 71 DECT W710P (W710D+W610D) User Manual Lock Phone: When the keyboard lock function is enabled, press this button to  manually lock the keyboard. SMS: Enter the SMS interface.  Call Back: Callback the number of the last incoming call.  Hide DTMF: Enter the hide DTMF settings interface.
  • Page 72 DECT W710P (W710D+W610D) User Manual need to be subscribed to in the server to the group, use the URL address of the group to subscribe to all the numbers in the group, and display the corresponding number, name, and status on the indicator light of the BLF List key. The BLF List is automatically issued by the server based on configuration, without the need for users to manually configure values and names.
  • Page 73 DECT W710P (W710D+W610D) User Manual 13 W710D Network Settings 13.1 Ethernet Settings IPv4 Settings There are two modes to choose from for IPv4 network types: DHCP and Static IP.  When the network type is set to DHCP, the phone is issued a network IP address by ...
  • Page 74 DECT W710P (W710D+W610D) User Manual Default Gateway: used to achieve network interconnection and can be filled in  according to one's own needs. Primary DNS server: The IP address of the primary DNS server  Secondary DNS server: The IP address of the backup DNS server. ...
  • Page 75 DECT W710P (W710D+W610D) User Manual 13.4 VPN Function Description Virtual Private Network (VPN) is a technology to allow device to create a tunneling  connection to a server and becomes part of the server’s network. The network transmission of the device may be routed through the VPN server. For some users, especially enterprise users, a VPN connection might be required to ...
  • Page 76 DECT W710P (W710D+W610D) User Manual following, OpenVPN Configuration file: client.ovpn  CA Root Certification:ca.crt  Client Certification:client.crt  Client Key:client.key  User then upload these files to the device in the web page [Network] >> [VPN],  select OpenVPN Files. Then user should check “Enable VPN”...
  • Page 77 DECT W710P (W710D+W610D) User Manual DHCP VLAN Visit W710D webpage>>[Network]>>[Advanced]>>DHCP VLAN settings, configure  DHCP VLAN parameters: Option Value: Enable or disable obtaining VLAN ID through DHCP Option.  DHCP Option VLAN: Set the Option value, 128-254, and obtain the VLAN value ...
  • Page 78 DECT W710P (W710D+W610D) User Manual 14 W610D Connecting Peripherals 14.1 USB flash drive W610D can export log files and perform upgrades through USB. Please refer to Troubleshooting for the method of upgrading and exporting logs through USB. Note: The W610D device does not provide power to the USB device, so a USB hub is ...
  • Page 79 DECT W710P (W710D+W610D) User Manual PTT Headset Side key 14.3.1 Configure the PTT headset side key Configure the PTT headset side key via Manager: According to the steps in section  5.4 W710D Configuration Management, access the created configuration file>>[Function Keys]>>[PTT]>>[PTT 1], set the function key Type (PTT key by default), Name, Line, and Value, and click Apply to Save.
  • Page 80 DECT W710P (W710D+W610D) User Manual Use the PTT headset speed dial button If the key is configured as the speed dial type (the default is speed dial type) : In the standby state, press the key to initiate a call. ...
  • Page 81 DECT W710P (W710D+W610D) User Manual 15 Security 15.1 W610D Menu Password The menu password is used to access the [Menu]>>[Advanced] directory, and users can customize the menu password. Access the device [Menu]>>[Advanced], enter the current menu password (default password is 123), access [Security]>>[Menu Password], and set the parameters: Current Password: The password set for you, with a default password of 123.
  • Page 82 DECT W710P (W710D+W610D) User Manual Set Keyboard Lock Access the device [Menu]>>[Advanced], enter the current menu password (default  password is 123), access [Security]>>[Keyboard Password], select the Keyboard Status, and set the Keyboard Timeout time. Keyboard Status: Menu Keys/DSS keys/All keys. The keyboard lock will lock for ...
  • Page 83 DECT W710P (W710D+W610D) User Manual Access the W710D webpage [Security]>>[Web Filter], adding and removing IP segments are accessible. Configure the starting IP address within the start IP, end the IP address within the end IP, and click [Add] to submit to take effect. A large network segment can be set, or it can be divided into several network segments to add.
  • Page 84 DECT W710P (W710D+W610D) User Manual custom device certificate can be uploaded. When no custom certificate is uploaded, the certificate list appears empty Trust Certificate: Visit the W710D webpage [Security]>>[Trust Certificates], set the  trust certificate parameters: Permission Certificate: used to confirm whether server certificate authentication ...
  • Page 85 DECT W710P (W710D+W610D) User Manual Function Description Firewall rule set is a simple firewall module. This feature supports two types of rules:  input rules and output rules. Each rule is assigned an ordinal number, allowing up to 10 for each rule. After setting the parameters, click [Add] and a new item will be added in the firewall ...
  • Page 86 DECT W710P (W710D+W610D) User Manual 16 Troubleshooting 16.1 Obtain System Information Obtain Information for W710D 16.1.1 Obtain System Information through W710D Visit the W710D webpage>>[System]>>[Information] page to obtain information. The following information will be provided: System Information: Display device Model, Hardware, Software, Uptime, Last ...
  • Page 87 DECT W710P (W710D+W610D) User Manual information of manager which the device connected. Network: displays the device's Network Mode, Network IP, and RSSI(signal strength)  information. Phone: Display device MAC address, Bluetooth MAC address, IPUI, Model,  Hardware version, Software version, Uboot version, RAM, ROM and Uptime information of the device.
  • Page 88 DECT W710P (W710D+W610D) User Manual Reset button to reset. Long press the Reset button on the W710D device to reset.  Reset W610D Visit W610D>>[Menu]>>[Advanced], then enter the password to enter the interface,  select [Factory Reset], click OK to reset. Long press the OK button on the standby interface of W610D to reset.
  • Page 89 DECT W710P (W710D+W610D) User Manual point, users can perform related operations, such as starting/stopping the line or making a phone call. After completion, click the [Stop] button on the webpage. All network packets during the device period are saved in files. Users can analyze data packets or send them to technical support email 16.7 Get Log Information Log information can help technicians analyze and locate problems.
  • Page 90 DECT W710P (W710D+W610D) User Manual personnel. 16.9 Common Trouble Cases Fault cases Solution First consider the situation that the battery has been exhausted, and charge the device. Please use the charger Device could not boot configured at the time of purchase when charging. If you see the phone enter "POST mode", it means that the phone system is damaged.
  • Page 91 DECT W710P (W710D+W610D) User Manual connecting the headset, the earpiece channel cannot be used; after unplugging the headset, the earpiece channel can be used. At this point the network bandwidth and latency may not be suitable for audio calls. 1. Please use the Headset provided by manufacturer. Poor Audio or Low 2.
  • Page 92 DECT W710P (W710D+W610D) User Manual 17 Appendix 17.1 Appendix I - W610D Key Icons Icon Description Programmable keys, the default is PTT Key, which can be set to function key/speed dial key, etc. Volume keys, in standby or ringing state: increase or decrease ringer volume During a call: increase or decrease the volume of the headset, handset, hands-free...
  • Page 93 DECT W710P (W710D+W610D) User Manual In hands-free mode In headset mode In handset mode Mute activated Silent mode Call is on hold Auto-answering activated Call forward activated Do not disturb activated (Red) Bluetooth device paired connection Keypad locked Forward call(s) Missed call(s) Received call(s) Dialed call(s)
  • Page 94 DECT W710P (W710D+W610D) User Manual 17.3 Appendix III - W610D LED State Definition Type LED lights State Charging Yellow On Fully Charged Green On Red and Yellow Blinking Status indicator light Low Battery alternately Breathing Missed calls or unread messages Yellow Blinking Yellow Blinking Quickly...
  • Page 95 DECT W710P (W710D+W610D) User Manual Access the call history list. CallLog Set functions such as Call Forwarding, Auto Answer, Call Waiting, DND, Intercom, and Ban Anonymous Call. Features Set up Memo and Export logs through USB drive Application Set Security, Upgrade, and Factory Reset. Advanced 17.5 Appendix V - W610D Keyboard Character Query Table...
  • Page 96 DECT W710P (W710D+W610D) User Manual @:; ()<>[] {} a b c d e f g h i j k l m n o Lowercase letters p q r s t u v w x y z (space) .,*/+-:_=’?\”| #^!&$% pound @:;()<>[]{} A B C D E F...
  • Page 97 DECT W710P (W710D+W610D) User Manual 8 t u v T U V 9 w z y x W Z Y X .*:/@[],+-_=’?\”|;()<>{} # ^!&$%£¥¤~¡¿§ a b c A B C2 d e f D E F3 g h I G H I4 j k l J K L5 Number/Letter m n o M N O6...
  • Page 98 DECT W710P (W710D+W610D) User Manual Type LED lights State Flash There are active calls in the system Base not connected to Manager 98 / 98...
