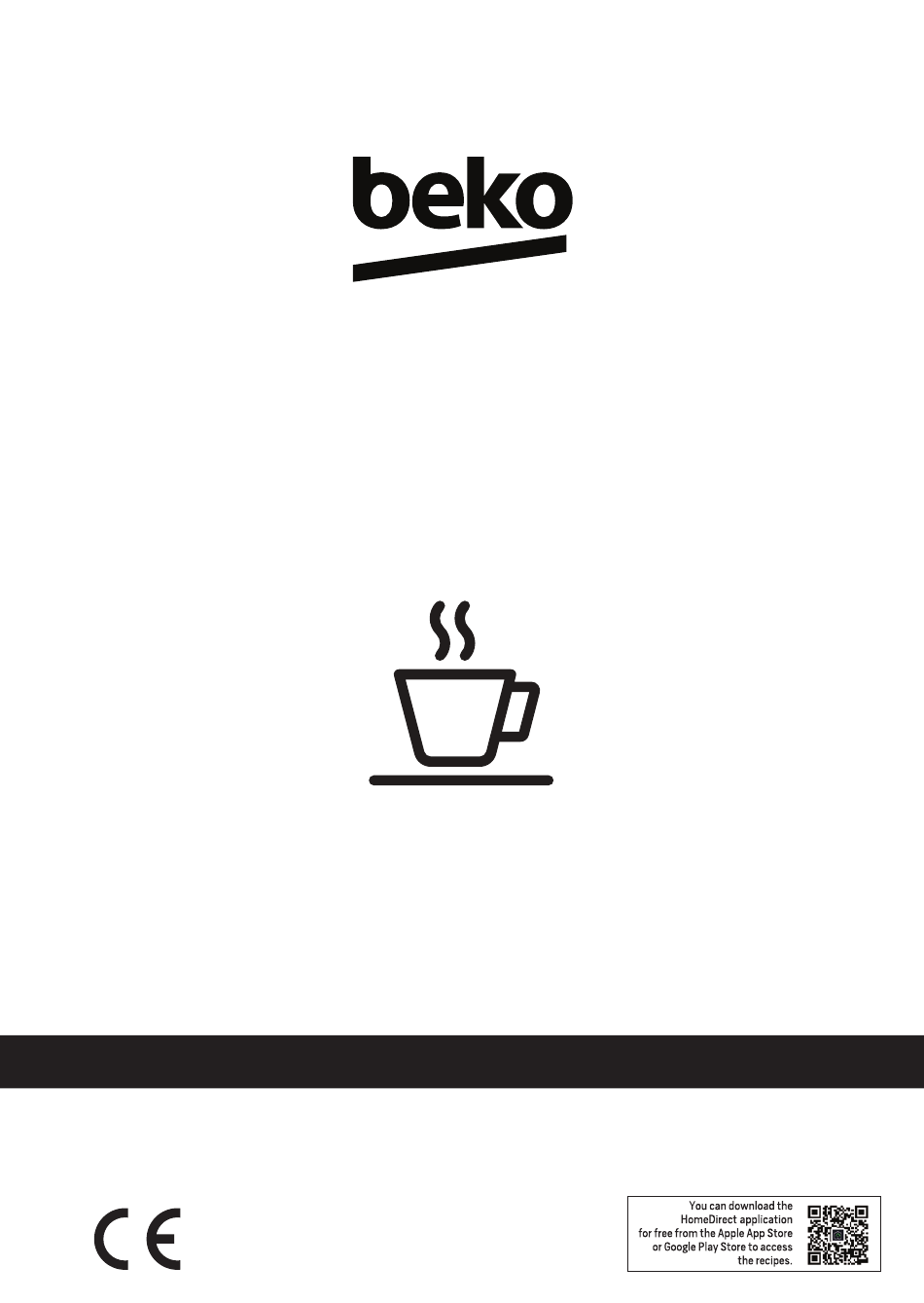

- Page 1 Fully Automatic Espresso Machine With Integrated Milk Cup User Manual CEG 7404 C 01M-8917953200-2824-01...
- Page 2 CONTENTS ENGLISH 3-32...
- Page 3 Please read this user manual first! Dear Customer, Thank you for selecting this Beko product. We hope that you get the best results from your product, which has been manufactured to a high quality with state-of-the-art technology. Please read this entire user manual and all other accompanying documents carefully before using the product and keep them as a reference for future use.
- Page 4 1 Important instructions for safety and environment This section includes the safety instructions that will help provide protection against risks of personal injury and material loss. Failure to follow these instructions invalidates any warranty. 1.1 Danger of electric current Danger to life due to electric current! Contact with live wires or components could lead to serious injury or even death! Observe the following safety precautions to avoid...
- Page 5 1 Important instructions for safety and environment 1.2 Danger of burning or scalding Parts of the coffee machine can become very hot during operation! Dispensed drinks and escaping steam are very hot! Observe the following safety precautions to avoid burning/scalding yourself and/or others: Do not touch either of the metal sleeves on both •...
- Page 6 1 Important instructions for safety and environment machine. Contact the authorised service. If the connecting cable is damaged, it should only • be replaced by a service agent recommended by the manufacturer in order to prevent any danger! Please contact the manufacturer or their customer service.
- Page 7 1 Important instructions for safety and environment supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
- Page 8 1 Important instructions for safety and environment - by customers in hotels, motels and other residential type environments, - bed and breakfast type environments. Protect the coffee machine against the effects of • weather such as rain, frost and direct sunlight. Do not use the coffee machine outdoors.
- Page 9 1 Important instructions for safety and environment cable. Keep the appliance and its cord out of reach of • children aged 8 or under. The appliance can only be used to prepare coffee. • Children should be super vised to ensure that they •...
- Page 10 1 Important instructions for safety and environment Ensure that the mains power supply complies • with the information supplied on the rating plate of the appliance. Use the appliance only with a grounded socket. • Do not use the appliance with an extension cord. •...
- Page 11 1.4 Intended use The Beko fully automatic coffee machine is intended for use in homes and similar applications, such as in staff kitchens, shops, offices and similar areas or by customers in bed & breakfast, hotels, motels and other living accommodation. This coffee machine is not intended for commercial use.
- Page 12 1 Important instructions for safety and environment The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use of the product for purposes other than the intended use, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
- Page 13 2 Your Fully Automatic Espresso Machine 1. Coffee Bean Container Cover 13. Milk Cup Cover 2. Pre-ground Coffee Chute Cover 14. Milk Cup Assembly Parts 3. Coffee Bean Container 15. Milk Cup Nozzle Internal Part 4. Pre-ground Coffee Chute 16. Milk Foam Adjustment Knob 5.
- Page 14 2 Your Fully Automatic Espresso Machine Technical data Product Dimensions: 27,5 cm (Width) x 35,9 cm (Height) x Power supply: 41,2 cm (Depth) 220-240 V~, 50-60 Hz Weight: 9.68±0.5kg Power: 1350 W Cable Length: 95±5 cm The right to make technical and design changes is reserved.
- Page 15 3 Display 3.1 Control Panel Used for selecting "Ground Coffee" option. Used for selecting "Standard Bean Coffee" option. Used for selecting "Intense Bean Coffee" option. Used for initiating cleaning and descaling functions. Milk Button No Coffee Bean Error No Water Error General Error Lit During Pre-Heating Lit During Ongoing Procces...
- Page 16 Preparation 4.1 Installation Remove any protective films, stickers and any other packaging material from the appliance. 150mm 150mm 150mm 150mm Choose a safe and stable Insert the drip tray. Make Unwind and straighten the surface with an easily reac- sure it is inserted correctly power cord and insert the hable power supply and al- and close the front cover.
- Page 17 Preparation 150mm 150mm 150mm 150mm Lift the water tank by using Take the water tank out. Rinse the water tank with the lid as the handle. fresh water and then fill the tank to the Max level and place it back into the mac- hine.
- Page 18 Operation Place the water tank back in Close the water tank by by using the lid as the handle. using the lid. 5.1 Grinding Adjustment You can adjust the grinding coarseness by turning the adjustment knob on the bean container: Never do the grinding adjustment when the grinder is not operating.
- Page 19 Operation Remove the bean contai- Slowly pour in the coffee be- Place the container lid back ner lid. ans. 5.3 Using the pre-ground coffee container Remove the pre-ground cof- Slowly put the pre-ground Place the chute lid back on. fee chute lid. coffee in the pre-ground coffee chute.
- Page 20 Operation 5.4 Using the Cup Warmer Cups should be placed upside down to ensure internal sur- face is kept warm and clean (This function uses the inter- nal heat of the machine). 5.5 Preparing Your Coffee Switch on the appliance by Place a cup under the cof- Select your coffee by pres- pressing the power on/off...
- Page 21 Operation 5.5.1 Preparing Coffee with Milk Espresso Macchiato, Flat White, Caffe Latte, Cappuccino or Latte Macchiato are combinations of espresso with different amounts of hot milk and milk froth. Hold the milk cup with one Attach the milk cup to the Select your coffee with milk hand.
- Page 22 Operation beeps Press the button of preferred The pump will work inter- When the unit beeps once, the coffee. Then one beep sound mittently as the milk froth beverages is ready enjoy! will be heard. The selected first enters your cup. After - The machine will revert to beverage's button will start the milk froth is ready, the...
- Page 23 Operation 5.7 Adjusting The Volume of Your Coffee / Milk You can save the volume of your desired coffee for all beverages types as well as milk foam (25ml to 250ml coffee [x2 for double] & 10 ml to 500 ml milk) beep! While making coffee, select Only let go off the button...
- Page 24 Operation To reset all beverages to default/factory settings; In order to reset to the default settings of all beverage and milk foam volume selection saved to memory; • Press power on/off button and bean button all together for 3 seconds. To reset single beverage to default/factory settings;...
- Page 25 Operation ECO Mode Speed Mode Default Settings Cup Lighter Pre-brewing* Auto-shut off time 10mins 30mins 20mins The pre-brewing function moistens the coffee inside the brewing unit with a small amount of water before full extraction. This expands the coffee grounds to build up greater pressure in the brewer, which helps extract all the oils and bring out the full flavour of the beans.
- Page 26 Cleaning 6.1 Cleaning the appliance 1. Disconnect the power cord from the mains supply outlet. 2. Pour away all the water/coffee residual inside the drip tray and coffee residual container. 3. Use a damp cloth or non-scratching cleaning agent to clean the liquid stains on the appliance.
- Page 27 Cleaning When lights up, the coffee residual container needs to be emptied. This icon will light up after every 10 coffee brews. Clean the container to fix the error. If the container is clean, remove the container and put it back in its place.
- Page 28 Cleaning When lights up, it indicates that the appliance needs to undergo descaling. The appliance will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of water used. To start descaling: 1.
- Page 29 Cleaning 6.3 Empty System Function Use the empty system function before a long period of non-use and for frost protection. 1. When on idle, press and hold the " " and the milk button " " together for 3 seconds. will then light up.
- Page 30 Cleaning Deactivating the auto-clean mode Your appliance cleans itself automatically before and after each brewing operation. You may follow the steps below to deactivate the auto-clean mode. • Turn on the appliance by pressing the power on/off button and wait until it goes into idle mode.
- Page 31 Troubleshooting Problem Cause Solution The appliance does not The appliance is not con- Plug in and press the switch. work. nected to the mains. Check the cable and the plug. No or delayed response Appliance is under electro- Unplug the appliance. in several attempts of magnetic interference.
- Page 32 Troubleshooting Problem Cause Solution Coffee is delivered too Coffee grounds are too fine, Adjust the coffee fineness to slowly or a drop at a time. which blocks the water from larger grains for the grinding coming out. process. The indicator flashes to The internal coffee grounds Follow the steps described inform that there’s not...
- Page 33 Arçelik A.Ş. Karaağaç Cad. No: 2-6, 34445, Sütlüce, İstanbul, Türkiye www.beko.com...
