Dover marathon MPT 3 PAK'NTAINER Operation, Service And Installation Manual
  1. Manuals
  2. Brands
  3. Dover Manuals
  4. Trash Compactor
  5. marathon MPT 3 PAK'NTAINER
  6. Operation, service and installation manual
Dover marathon MPT 3 PAK'NTAINER Operation, Service And Installation Manual

Dover marathon MPT 3 PAK'NTAINER Operation, Service And Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
®
Marathon
MPT Compactor
®
MARATHON MPT 3, 4, 5, 6 PAK'NTAINER
MODELS
OPERATION, SERVICE, AND INSTALLATION
ISSUED DECEMBER 2020
____________________
CUSTOMER NAME:
____________________
SERIAL NUMBER:
COMPACTION & RECYCLING SOLUTIONS
0019-MPT-1220
© 2020 Marathon Equipment Company
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the marathon MPT 3 PAK'NTAINER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dover marathon MPT 3 PAK'NTAINER

Summary of Contents for Dover marathon MPT 3 PAK'NTAINER

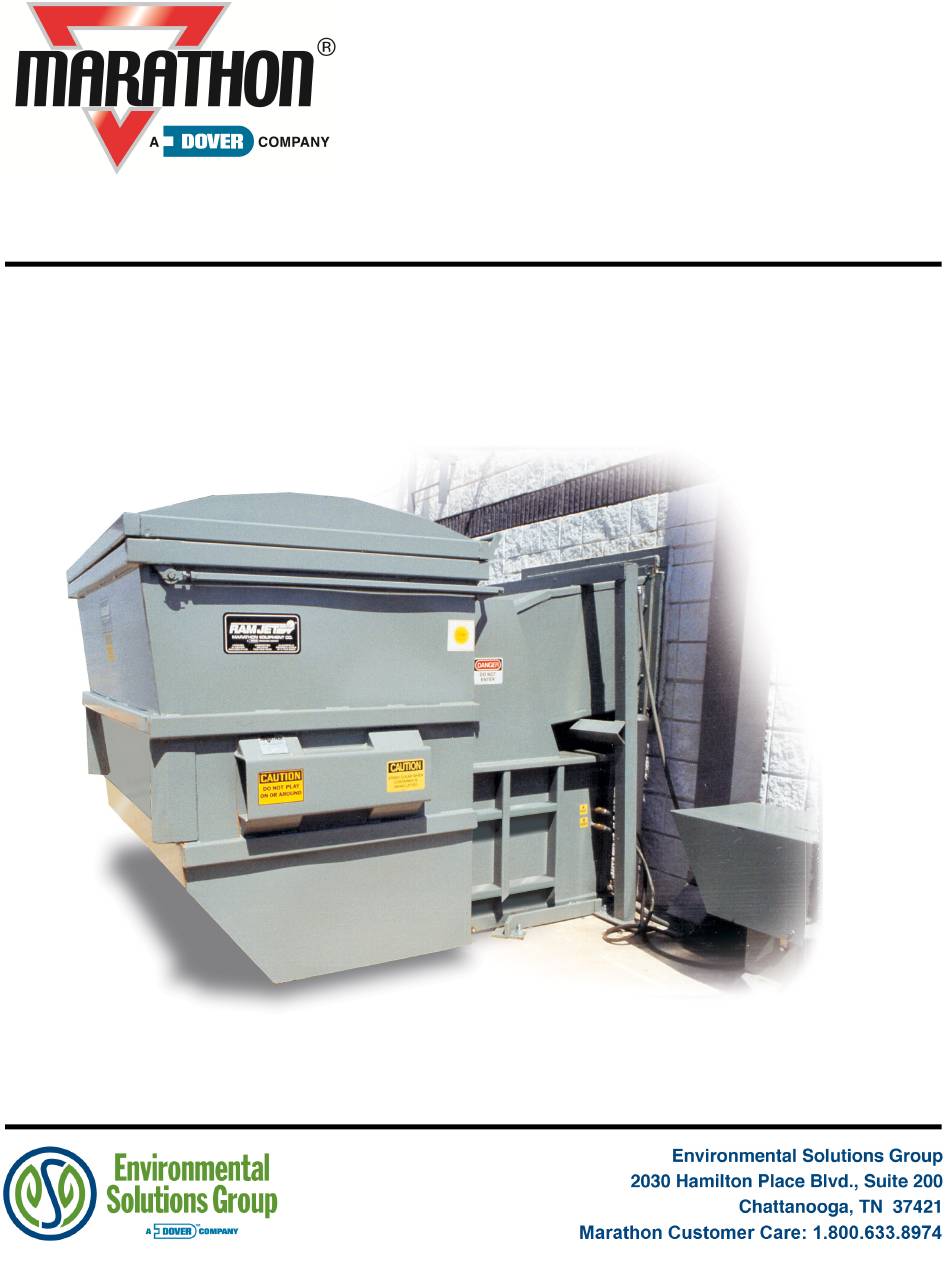

  • Page 1 ® Marathon MPT Compactor ® MARATHON MPT 3, 4, 5, 6 PAK'NTAINER MODELS OPERATION, SERVICE, AND INSTALLATION ISSUED DECEMBER 2020 ____________________ CUSTOMER NAME: ____________________ SERIAL NUMBER: COMPACTION & RECYCLING SOLUTIONS 0019-MPT-1220 © 2020 Marathon Equipment Company...
