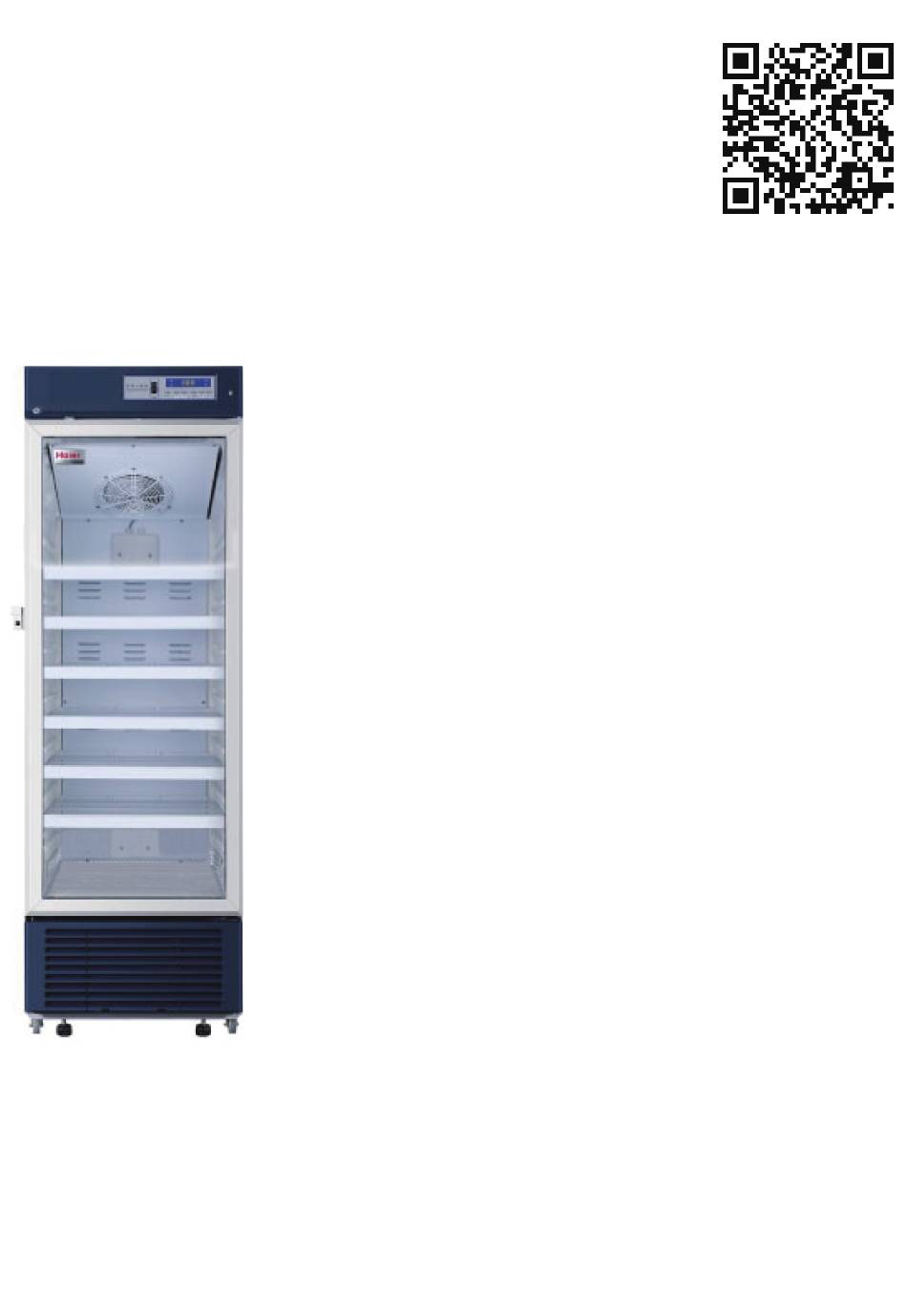

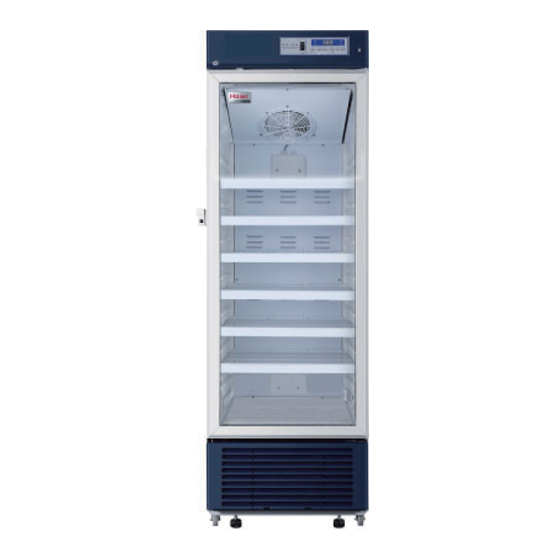

Pharmaceutical Refrigerator
Operation Manual
Read the Operation Manual carefully before using your appliance.
Keep the Operation Manual in a safe place.
Appearance , color and layout of the door may vary.
Translation of the original instruction.
This product is only applicable for storage of pharmaceutical products or drugs. Not
applicable for storage of blood or blood products including biological products, for
example biological vaccine, agents for in vitro diagnosis and etc.
Model:
HYC-260
HYC-360
HYC-290
HYC-390
HYC-390F
HYC-610
HYC-890
HYC-940
HYC-940F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Haier HYC-360
Summary of Contents for Haier HYC-360
- Page 1 Pharmaceutical Refrigerator Operation Manual Model: HYC-260 HYC-360 HYC-290 HYC-390 HYC-390F HYC-610 HYC-890 HYC-940 HYC-940F Read the Operation Manual carefully before using your appliance. Keep the Operation Manual in a safe place. Appearance , color and layout of the door may vary.
- Page 2 Haier HYC-610 HYC-890 HYC-940 HYC-940F Manufactures Name : Haier Medical and Laboratory Products Co.,Ltd. Manufactures Address : Haier Industrial Park, Economic Technology Development Zone. Qingdao 266510.P.R.China Refer to in this declaration confirms with the following directive(s)/standards: 2006/42/EC, EN60335-1, EN60335-2-89 EN62233...
- Page 3 The product is applicable to pharmacies, pharmaceutical factories, quarantine stations, health centers and hospitals, used to store pharmaceuticals, medicine and other related products which need a storage environment of 2~8℃. The unit is equipped with a computer control, digital display of Temperature temperature of 0.1℃...
- Page 4 Content: Product Feature............1 Content..............2 Safety Precautions........... 3 Application guidelines..........6 Product Installation ...........7 Component Names Control Panel......13 Application method ........... 21 Alarm................ 29 Cleaning and Maintenance........31 FAQ................33 Circuit Diagram............34 Specification&Packing List........39...
- Page 5 Safety Precautions Dear users: Thanks for your choice of Haier pharmaceutical refrigerator please make sure you have carefully read and observed the contents with following signs in the manual, for better understanding of this manual and better use of this product, so as to prevent personal injuries and refrigerator damage.
- Page 6 Do not place containers of water or heavy objects on the refrigerator. Falling objects may cause personal injury and overflown water may damage the insulation to cause electric shock and fire. Do not ground the refrigerator through gas pipes, water supply pipes, telephone lines or lighting conductors.
- Page 7 Always check the settings in the controller after restarting a unit from a power outage or shut off. Change of settings may cause damage to the products stored. If the power is shut off, let the unit sit for 5 minutes before it is powered up again to avoid damaging the compressor or the system.
- Page 8 Application guidelines The battery in the refrigerator may be low after the refrigerator has been in storage for a long time. Turn on the battery charge switch when the unit is powered up to allow the battery to be recharged. The battery will be in full capacity after about a week’s charging.
- Page 9 Product Installation Installation environment Ambient temperature: 16 ℃ to 32 ℃, the range of 18 ℃ to 25 ℃ is optimal. Air conditioning system is required as necessary. Ambient humidity: below 85%RHfor HYC-260/360,the humidity should be less than 70%RH Avoid excessive dust. Avoid mechanical vibration.
- Page 10 Preparation before usage 1. Remove all packaging materials. For safety reason, the equipment of HYC-890/940/940F is situated on a wooden pallet and secured by metal brackets. Please remove the screws and place the metal brackets under the unit.Pic.1. Forklift or specialty lifting equipment should be Pic.1 used to remove the unit off the pallet.
- Page 11 5. Standing Do not immediately power up the refrigerator after it is installed. Let the unit stand still for 24 hours and then power it up to ensure the unit works properly. 6. Installation of Shelves and Label strip HYC-260/360/610/890/940/940F Take out the shelf, label strip and rack fastener from the refrigerator.
- Page 12 8.Back Bracket(HYC-260/360/290/390/390F) HYC-260/360 Install the support bolts into the mounting holes on the back of the refrigerator. (See Pic.3 Pic.3 HYC-290/390/390F Remove four M5 bolts from the back of cabinetthen fix the back bracket for rear wall distance with the removed bolts.(See Pic.4 Pic.4 9.
- Page 13 Initial Power-on Follow the flow chart below to start the refrigerator. While the refrigerator is empty, connect the power line to the appropriate dedicated socket and make sure the power supply in the socket matches the required voltage and frequency. After the power is switched on, turn on the battery charging switch.
- Page 14 This unit should be managed a dedicated professional person. Operating conditions should be checked and recorded using appropriate methods. When the refrigerator temperature is out of specification, take proper actions to protect the stored samples. No products should be stored in the unit unless the unit operates without issues. The refrigerator is a pharmaceutical refrigerator designed to operate within 2℃...
- Page 15 Component Names Control Panel Component Names HYC-260/360 Light switch Control panel Door ajar alarm switch Door lock Handle Shelf Glass door Glycerin bottle for temperature sensor Leveling leg...
- Page 16 HYC-290/390 Door ajar alarm switch Control panel Light switch Door lock USB port(Optional) Interior light Battery switch Handle Glass door Shelf Caster Leveling leg...
- Page 17 HYC-390F Door ajar alarm switch Control panel Light switch Door lock USB port Battery switch Handle Pad lock Solid door Caster Leveling leg...
- Page 18 HYC-610 Light switch Control panel Interior light Glycerin bottle for temperature sensor Handle Shelf Door ajar alarm switch Door lock USB portOptional Temperature recorder Caster Leveling leg...
- Page 19 HYC-890 Light switch USB port Door lock Control panel Handle Glass door Shelf Caster Leveling leg...
- Page 20 HYC-940 Light switch Door lock Control panel Handle Glass door Shelf Caster Leveling leg...
- Page 21 HYC-940F Light switch Control panel Door lock Door ajar alarm switch Handle Caster Leveling leg...
- Page 22 Control Panel HYC-260/360/290/390/390F/890/940/940F HYC-610...
- Page 24 TEMP. SET If you want to reset the temperature, for example, 5℃ is set originally and you want to change the temperature to 5.5℃, please operate according to the following steps: TEMP. SET Key Operation Display The temperature in the refrigerator displays. The original temperature set value 5℃...
- Page 26 Maintenance and replacement of the recorder's standby battery When the recorder’s LED light blinks green, check the recorder performance as follows. 1) Remove the standby battery. If the LED light is off and the recorder stops working, the main power supply of the recorder fails. Check the main power supply for connection and any other issues.
- Page 27 Calibration of Recorder The temperature recorder has been accurately adjusted before leaving the factory even if the power supply is interrupted. If there is a need to be adjusted, perform the following procedures. 1. Let the unit run for at least 2 additional hours after it reaches stable condition, 2.
- Page 28 USB Function Functions of USB interface The computer has a USB function. Test data can be exported via the USB port. The computer can automatically collect and store the test data within the recent 10 years. It collects data every other 6 minutes and stores them automatically.
- Page 29 shows“1P” once again. Users can set 1P-5P again. After the setting, press the “Cal ” for 5s, and all s ettings will be automatically saved. And then the display area of inner temperature shows the inner temperature normally. Note: during the said 1P-5P setting process, parameters can be specifically regulated via the “Sensor ”...
- Page 30 1. If control buttons are not touched in 60 seconds, all changes of parameters will not become effective. The previous settings are restored. 2. If the unit is powered off before the parameters are saved, the control parameters in the RAM will be lost. The unit will retain the previous set up once the power recovers. 3.
- Page 31 Alarm Alarm or Safety Phenomenon Alarm Indication Buzzing Alarm If upper temperature sensor or lower High temperature sensor perceives Alarm light flashes Impulsive sound alarm temperature temperature of the refrigerator ≥8℃ If upper temperature sensor or lower temperature sensor perceives Alarm light flashes Impulsive sound alarm temperature...
- Page 32 Automatic Alarm Recovery This series of refrigerator is has an automatic alarm recovery feature. When the system is in the alarm mode, you can press the “Silence” on the display panel to cancel the alarm. (The remote alarm will not be stopped.) If the alarm condition still exists, the buzzer will return to the alarm mode again automatically 20 minutes later.
- Page 33 When you are running short of the chart paper, please contact Haier to purchase more. The lead time to deliver the charts is 15 days after receiving the payment . Please call Haier for details.
- Page 34 You can purchase a high quality battery from a store for the same size and voltage(9V). You may also call Haier to purchase a high quality replacement battery. The lead time to deliver the battery is 15 days after receiving the payment. Please call Haier for details.
- Page 35 If you have any questions about the operation of the refrigerator, please refer to the table frequent asked questions as follows. Call Haier technical support if you still have questions. Do not attempt to maintain or dismantle the unit by yourselves.
- Page 36 Circuit Diagram Circuit diagram（HYC-260/360）...
- Page 38 Circuit diagramHYC-610...
- Page 39 Circuit diagramHYC-610...
- Page 40 Circuit diagram(HYC-940/940F)
- Page 41 Specification&Packing List Specification Name Pharmaceutical Refrigerator Model HYC-260 HYC-360 Exterior Dimensions 620×655×1720 620×655×1995 (W×D×H) (mm) Interior Dimensions 550×460×1065 550×460×1340 (W×D×H) (mm) Effective Volume 260L 360L Glass door Glass door Door Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor...
- Page 42 Specification Name Pharmaceutical Refrigerator Model HYC-290 HYC-390 HYC-390F Exterior Dimensions 665×710×1965 665×710×1965 665×710×1665 (W×D×H) (mm) Interior Dimensions 530×555×1080 530×555×1380 530×555×1380 (W×D×H) (mm) Effective Volume 290L 390L 390L Door Glass door with electric heat Solid Door Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor Shelves Load...
- Page 43 Specification Name Pharmaceutical Refrigerator Model HYC-610 Exterior Dimensions (W×D×H) 780×840×1945 (mm) Interior Dimensions (W×D×H) 680×640×1400 (mm) Effective Volume 610L Door Glass door with electric heat Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor Shelves Load ≤30kg per shelf Force-air cooling circulation Refrigerating Method Exterior / Interior...
- Page 44 Specification Name Pharmaceutical Refrigerator Model HYC-890 Exterior Dimensions 1130×755×1980 (W×D×H) (mm) Interior Dimensions (W×D×H) 1030×590×1425 (mm) Effective Volume 890L Door Glass door with electric heat Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor Shelves 12 Polyester coated wire shelves ≤20kg per shelf Load Force-air cooling circulation...
- Page 45 Specification Name Pharmaceutical Refrigerator Model HYC-940 HYC-940F Exterior Dimensions 1130×755×1980 (W×D×H) (mm) Interior Dimensions (W×D×H) 1030×590×1425 (mm) Effective Volume 890L Door Glass door with electric heat Solid door Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor Shelves 12 Polyester coated wire shelves ≤20kg per shelf Load Force-air cooling circulation...
- Page 46 Global Warming Potential Rated voltage Rated frequency CO equivalent Model （VAC） （Hz） Tonnes HYC-260 220~240 50/60 0.186 HYC-360 220~240 50/60 0.215 HYC-360 1.177 HYC-290 220~240 50/60 0.429 HYC-290 0.358 HYC-390 220~240 50/60 0.436 HYC-390 0.429 HYC-390F 220~240 50/60 0.436 HYC-610...
- Page 47 Packing List HYC-260 HYC-360 HYC-290 HYC-390 HYC-390F Model Operation Manual Plastic bag Shelves Label strip Drain hole cap Fixed card Brackets (for rear wall distance) Pad lock / Handle Kits Power cord Kits Model HYC-610 HYC-890 HYC-940 HYC-940F Operation Manual...
- Page 48 Certificate of Quality Checker: Haier Medical and Laboratory Products Co., Ltd. Address: Haier Industrial Park, Economic Technology Development Zone. Qingdao 266510.P.R.China Web:www.haiermedical.com Version:1st,2017 Dedicated code:0270501031 V13026...
