Haier HYC-68 Operation Manual

Pharmaceutical refrigerator
Hide thumbs Also See for HYC-68:

Advertisement

Table of Contents

℃
℃

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYC-68 and is the answer not in the manual?

Questions and answers

Related Manuals for Haier HYC-68

Summary of Contents for Haier HYC-68

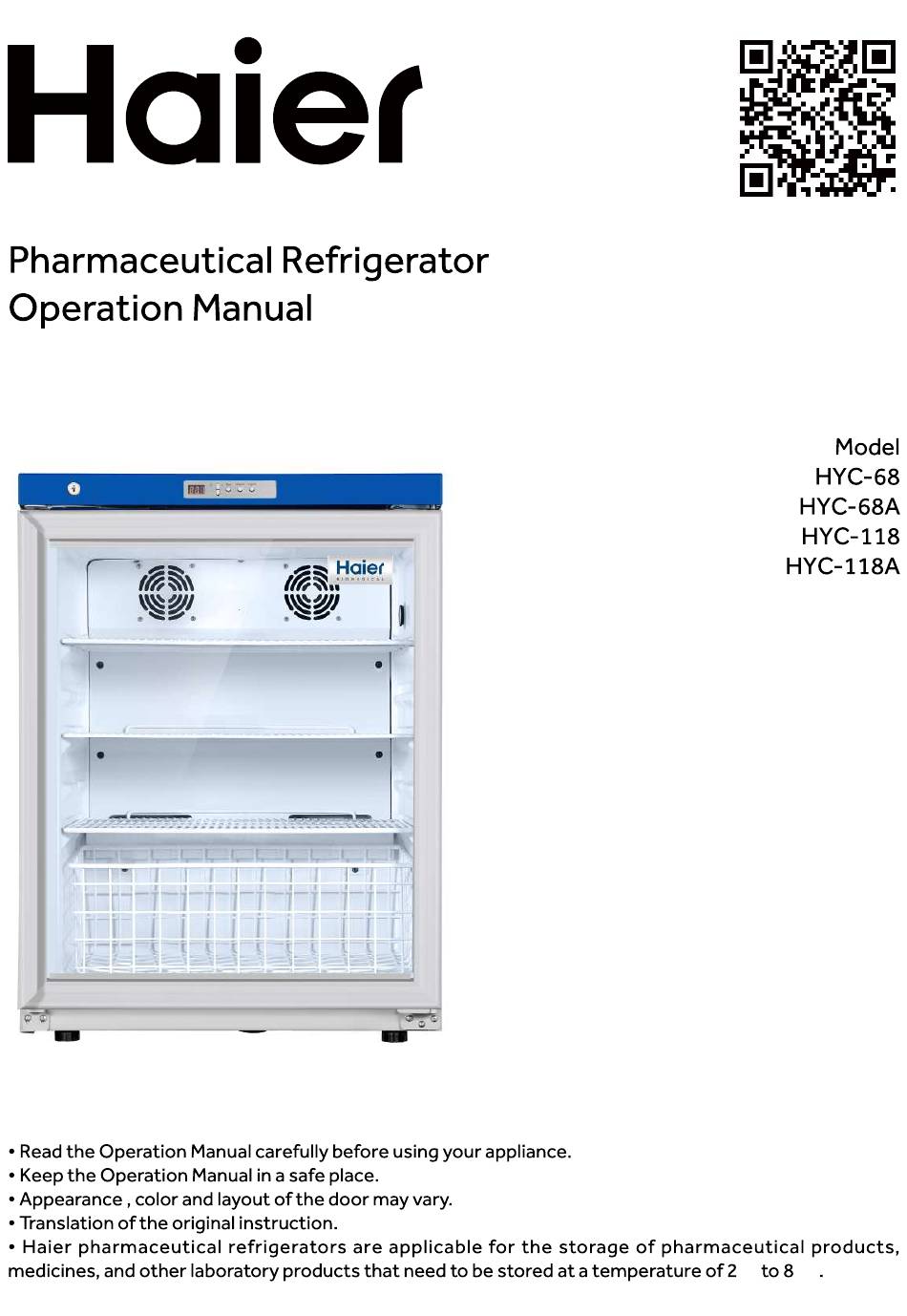

  • Page 1 ℃ ℃...

  • Page 2: Table Of Contents

    Content Safety Precautions ............ 1 Usage Precautions ............ 5 Product Features ............6 Product Installation ............ 7 Component Names ...........11 Application method ........... 13 Cleaning and Maintenance ........15 FAQ ................16 Refrigeration Schematic • Wiring Diagram ....17 Specifi cation • Packing List ........19...

  • Page 3: Safety Precautions

    Safety Precautions Dear users: Thanks for your choice of Haier pharmaceutical refrigerator; please make sure you have carefully read and observed the contents with following signs in the manual, for better understanding of this manual and better use of this product, so as to prevent personal injuries and refrigerator damage.
  • Page 4 Safety precautions Under all conditions marked with , it is necessary to consult the document, so as to clarify the nature of potential risks and any Actions or operations countermeasures that must be taken. which are prohibited Ignoring this warning may result in death or Actions or operations Warning serious injury...
  • Page 5 Do not touch electrical parts such as power plug or switches with wet hands to prevent electric shock. Hold the power plug rather than the wire when pulling the plug from the socket as electric shock or fi re due to short circuit may be caused. Pull out the power plug when the refrigerator is under abnormal performance as electric shock or fi...
  • Page 6 The angle of inclination shall not be greater than 45°when handling the refrigerator. Be careful not to be tripped up by the refrigerator during handling, to prevent refrigerator damage or personal injuries. Do not lift or handle equipment with door knob to prevent refrigerator damage or personal injuries.

  • Page 7: Usage Precautions

    Usage Precautions • Make sure the temperature inside the refrigerator has reached the set value and put articles in the refrigerator by batch. Volumes accounted by articles shall not be greater than 1/3 of refrigerator to prevent rise of temperature. •...

  • Page 8: Product Features

    Product Features The product is applicable to pharmacies, pharmaceutical factories, quarantine stations, health centers and hospitals, used to store biological products and those need to be stored at a temperature between 2~8℃ . 1.Temperature Control Microprocessor control, digital display of temperature, temperature display range as 2℃ ~8℃ . 2.

  • Page 9: Product Installation

    • Ambient temperature: 16 ℃ to 32 ℃ , 18 ℃ to 25 ℃ are optimal and air conditioning system is required as necessary. • Ambient humidity: HYC-68A: below 70%Rh;HYC-68:below 75%Rh;HYC-118/118A:below 85%Rh. • Avoid excessive dust. • Avoid mechanical swing or vibration.
  • Page 10 Preparation before use 1. Remove the packaging materials and strings Remove all packaging materials and strings for transport. • The maximum tilt angle of the refrigerator shall be no more than 45° during the Caution course of movement. • Transportation and relocation requirement: clamp truck or forklift truck. 2.
  • Page 11 Initial Power-on Observe the rules below for initial start-up and continuous operation: When the refrigerator is empty, connect the power line to the appropriate dedicated socket and make sure the power is rated voltage and frequency. The refrigerator has been preset to operate at 2~8℃ in the factory and it is not required to set temperature.
  • Page 12 •This unit should be managed by a dedicated person. Inspection should be performed daily to keep appropriate records. When the temperature is out pf specifi cation, action should be taken to move the products to a safe place. •This product is pharmaceutical refrigerator with temperature ranging from 2~8℃ inside. Please make sure articles to be stored conform to environment inside to avoid damages of articles and economic loss.

  • Page 13: Component Names

    Component Names • HYC-68 • HYC-118 Door lock Control Panel Door lock Control Panel HandleS Solid door Leveling leg Handle olid door Leveling leg...
  • Page 14 • HYC-68A • HYC-118A Inner light Door lock Control panel Door lock Control panel Inner light Handle ShelfB asket Leveling leg Handle ShelfB asket Leveling leg...

  • Page 15: Application Method

    Application method Microprocessor temperature controller Adjust the cabinet temperature easily by the micropressor temperature controller in front panel installed on the refrigerator. Don’t do any adjustment at least 30 mins when you firstly power the refrigerator. Schematic diagram of controller: 1.Temperature adjustment Factory pre-set to 5℃...
  • Page 16 “on” or “off ” by “Light” button to save energe, please turn off the light after observing the stored goods in the refrigerator(only for HYC-68A/118A). The light is on when the door is open; The light is off when the door is closed(only for HYC-68/118). Power failure alarm function When the power is down, power-off alarm function is activated, buzzer with 1 Hz frequency continuously beeps,at the same time alarm indicator light of the board fl...

  • Page 17: Cleaning And Maintenance

    Cleaning and Maintenance • To avoid electric shock or staff injuries, please switch off power of the refrigerator Warning before conducting any repairment or maintenance. • Do not inhale any air borne particles when conducting maintenance on your refrigerator. Refrigerator cleaning 1.Clean the refrigerator once a month.

  • Page 18: Faq

    This chapter is to give answers in respect of potential fault phenomenon as well as respective solutions.If your question is still unresolved after operation, please contact Haier after-sales service.Do not maintain and dismantle the refrigerator by yourself!

  • Page 19: Refrigeration Schematic • Wiring Diagram

    Refrigeration Schematic • Wiring Diagram Schematic diagram Evaporimeter Dry filter Condenser Capillary tube Muffler Compressor Exhaust pipe...
  • Page 20 Circuit diagram • HYC-68/68A Compressor Battery switch Battery Remote alarm port Temperature sensor Internal fan Door  Internal fan switch LED lamp set • HYC-118/118A ① Compressor High temperature Display panel resistance t hermostat Door heating wire Door heating transformer Reserved interface...

  • Page 21: Specifi Cation • Packing List

    Specifi cation • Packing List Specifi cation Name Pharmaceutical Refrigerator Model HYC-68 HYC-68A Exterior Dimensions 495×580×660 495×580×660 (W×D×H) (mm) Interior Dimensions 415×385×505 415×385×505 (W×D×H) (mm) Eff ective Volume Door Solid door Glass door Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor...
  • Page 22 Name Pharmaceutical Refrigerator Model HYC-118 HYC-118A Exterior Dimensions 597×635×810 597×635×810 (W×D×H) (mm) Interior Dimensions 515×415×630 515×415×630 (W×D×H) (mm) Eff ective Volume 118L 118L Door Solid door Glass door with electric heat Insulation CFC-Free foamed-in-place urethane Compressor High Quality Hermetically sealed compressor Shelves/Basket Load Max:10kg/m²...
  • Page 23 Packing List Model HYC-68 HYC-68A HYC-118 HYC-118A Operation Manual Plastic bag Drain hole cap Note: Technical information may vary from the appliance that you have just purchased due to technical improvements. Please take care of the key, if lost, please contact the seller.
