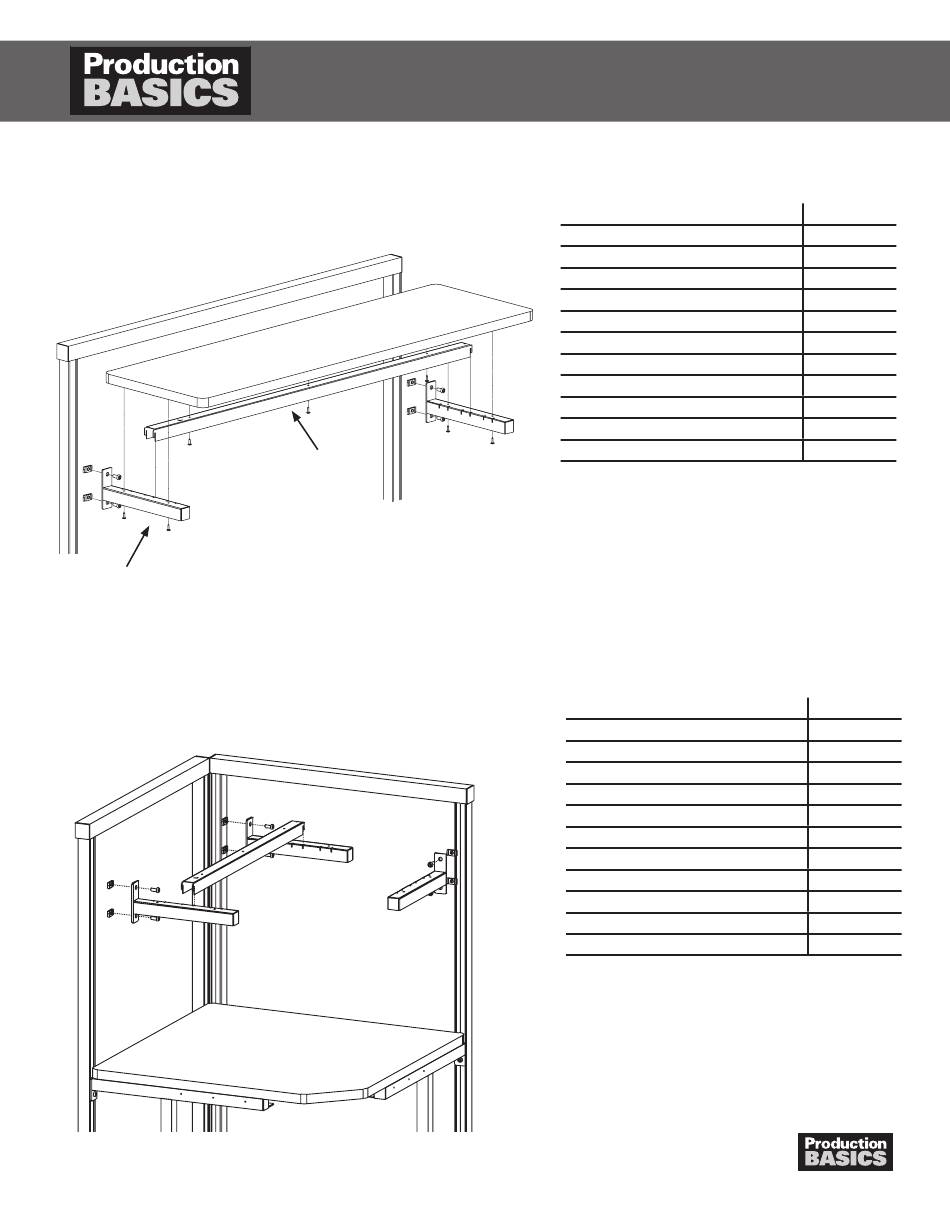

Production Basics 8417 Assembly Manual

ShELviNg: LAMiNAtE ShELf
Item Numbers 8417-8439, 8449-8461
Bracket
ShELviNg: LAMiNAtE CORNER
Item Numbers 8485, 8486, 8488, 8489
Left
Production Basics, Inc. Massachusetts, USA
A S S E M B L Y M A N U A L
Shelf Cross Bar
800.318.2770 617-926-8100
A C C E S S O R i E S
P A R t S A N d h A R d w A R e
Laminate Shelf
Brackets
Cross Bar
Basic Bolts
Basic Nuts
wood Screws
Allen wrench
Other Items Needed (not included)
Phillips head screwdriver or drill
tape Measure
Level
1. Insert Basic Bolt into holes on bracket. Secure with a
Basic Nut turning one revolution.
2. Insert Nuts into Frame or Upright and tighten bolts.
Notches on brackets face inward. Repeat for other
bracket. Measure or use a level to ensure brackets are
at the same height.
3. Insert the shelf cross bar into frontmost position
(recommended).
4. Place shelf on top of bracket installation and secure with
wood screws underneath the shelf.
P A R t S A N d h A R d w A R e
Laminate Shelf
Brackets
Shelf Cross Bar
Basic Bolts
Basic Nuts
wood Screws
Allen wrench
Other Items Needed (not included)
Right
Phillips head screwdriver or drill
tape Measure
Level
1. Insert Basic Bolts into holes on all three brackets.
Secure with a Basic Nut turning one revolution.
2. On the left side of the Corner Station, install bracket on
Frame or Upright and tighten bolts. Notches on bracket
face inward. Repeat for other bracket. Measure or use a
level to ensure brackets are at the same height.
Fax: 617-926-8010 www.pbasics.com
Q U A N t I t y
1
2
1
4
4
8
1
Q U A N t I t y
1
3
1
6
6
10
1
1
