Assembly Tips
Review entire instruction manual before proceeding.
•
Production Basics name plate indicates front of frame.
•
Don't be a slave to gravity–recruit a co-worker to help you
•
install and correctly position components and accessories.
References to 'Left' and 'Right' are oriented as if you were
•
facing the front of the workstation.
Before assembly, choose the side where each storage
•
package will be placed.
Chrome Mounting Plate
PedSys Support Leg
Leg Adjusters
Production Basics, Inc.
Massachusetts, USA

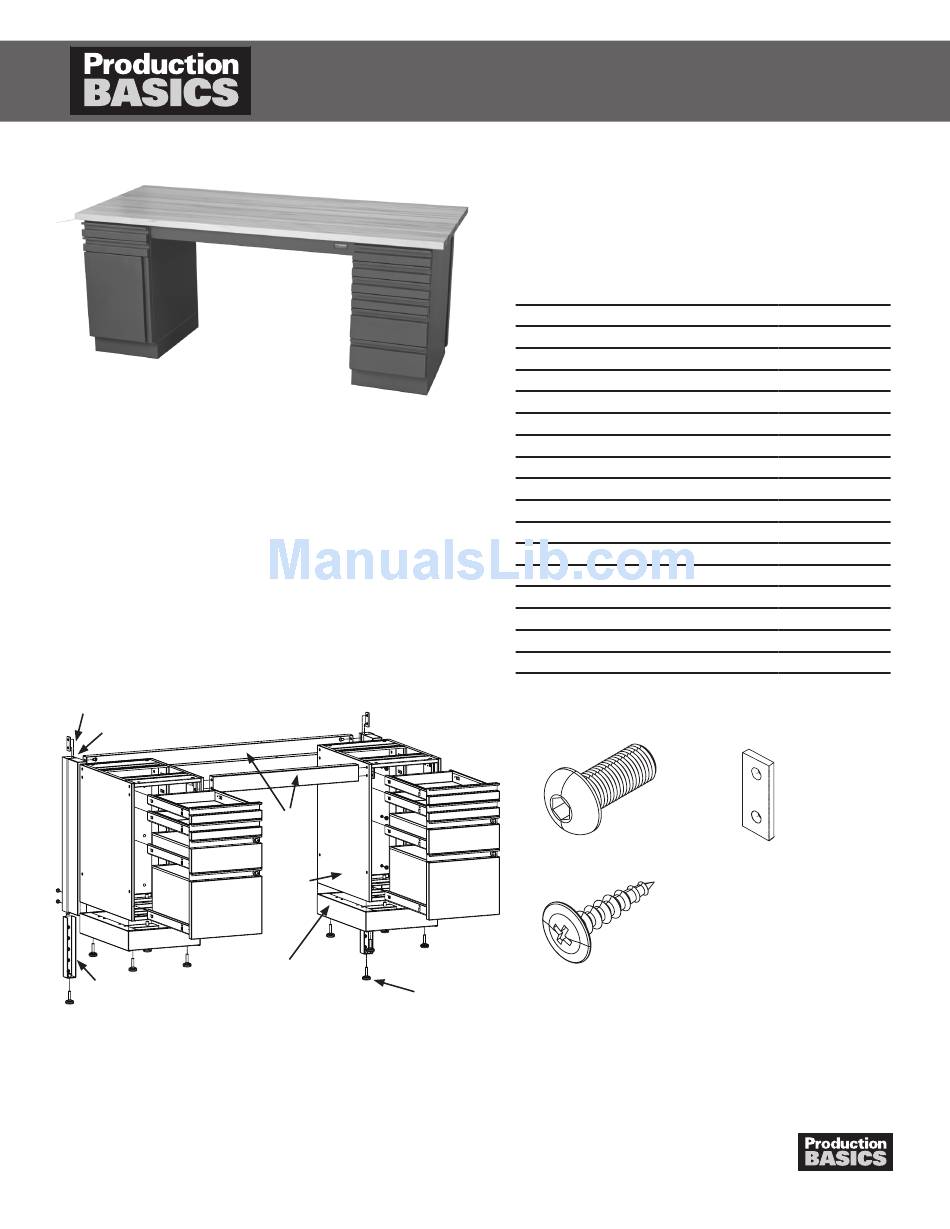

A S S E M B L Y M A N U A L
Support
Rail
Storage
Package
PedSys base
Leveling feet
800.318.2770
617-926-8100
W o R k S t A t I o N S
PEDSYS SERIES,
LEft & RIGHt SIDE StoRAGE
Item Numbers 7300-7455
P A R T S A N D H A R D W A R E
PedSys Support Leg
Leg Adjusters
Short Support Rail (Front)
Long Support Rail (Back)
Chrome Mounting Plate
Leveling Feet
Basic Bolts
3/8 Kep nuts
Wood screws
Storage Package
7/32 Basic Allen Wrench (included)
Other Items Needed (not included)
Worksurface (sold separately)
Phillips head screwdriver or drill
Rubber Mallet
Level
Tape Measure
Basic Bolt
Wood Screw
Fax: 617-926-8010
www.pbasics.com
Q U A N T I T Y
2
2
1
1
4
10
18
6
15
2
1
Chrome Mounting Plate
1
