Production Basics 8601 Manual

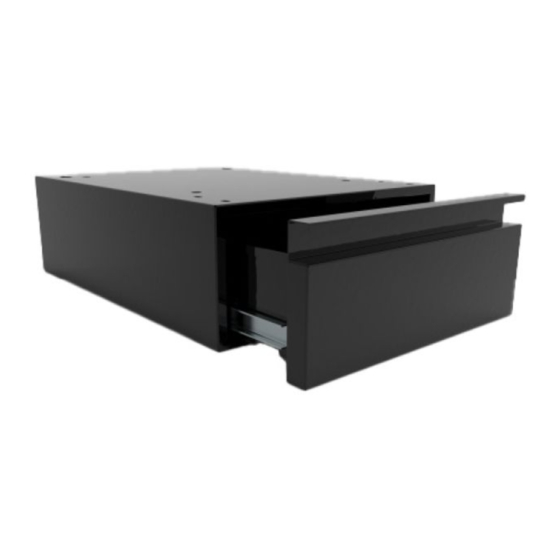

DRAWERS & SuSpEnDED CAbinEt WitH MOuntinG Kit
(for RtW, pedSys & Easy-Lift 4-post)
item numbers 8601, 8606, 8608, 8611, 8614, 8616, 8618, 8841, 8843, 8845, 8847, 8849, 8851
LEFT
24" Depth
30" Depth
36" Depth
Figure E
Need Help? Call Assembly Support at 800.318.2770
1308A860
RIGHT

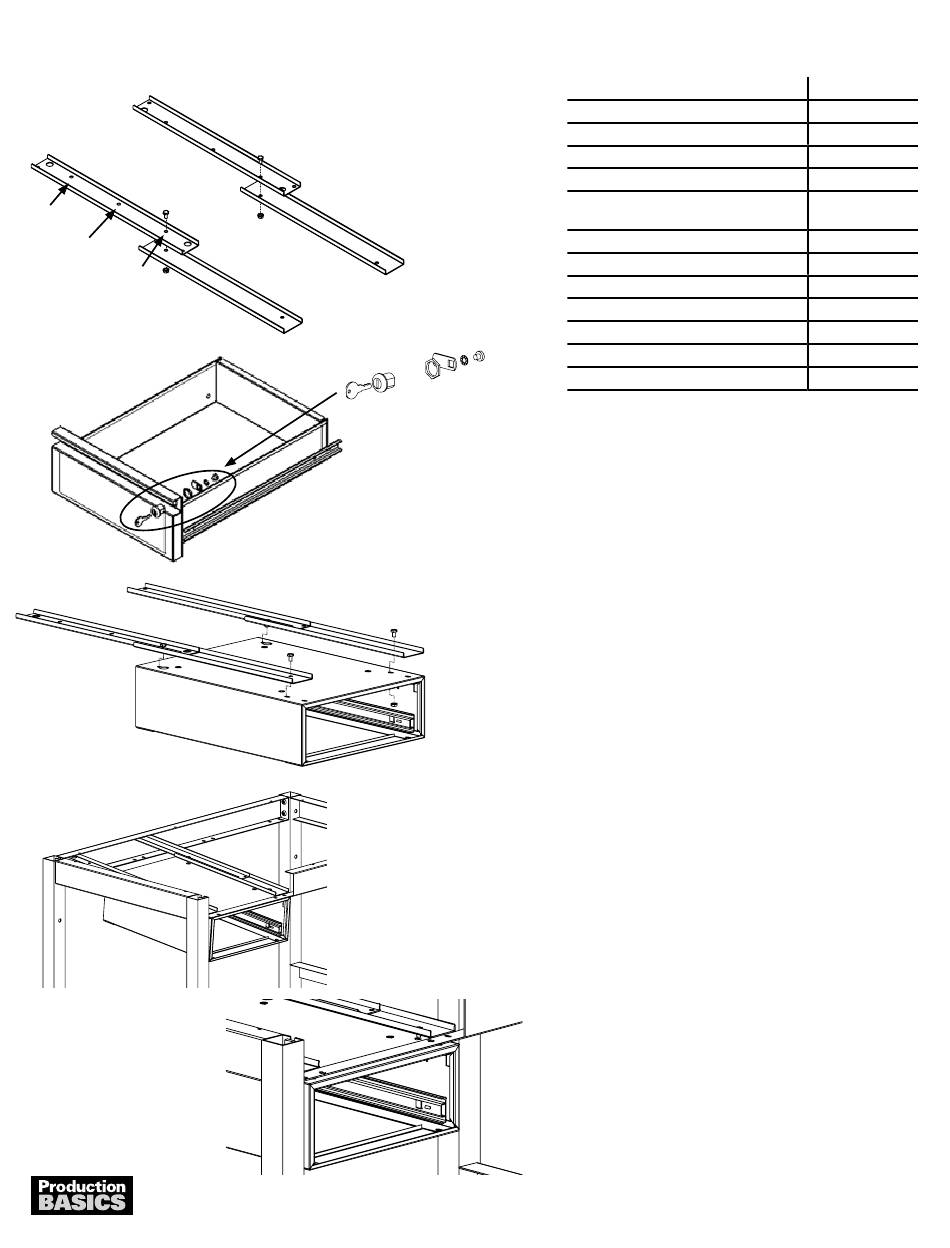

Figure A: Drawer Mounting Kit
Figure B
Figure D
P A R T S A N D H A R D w A R E
Drawer
Drawer or Cabinet Chassis
Lock Mechanism (if ordered)
Keys
Adjustable Drawer Mounting Kit
(2 pieces each)
Bolts
Kep Nuts
washers
Allen wrench
Other Items Needed (not included)
Phillips head screwdriver
Open end wrench
1. Assemble Drawer Mounting Kit as shown by inserting
bolts through top of bracket and securing loosely with
washer and nut. Align bracket based on depth of your
workstation (24", 30" or 36"). Large holes on the bracket
face inward. See Figure A.
2. If installing cabinet, skip to Step 3. If installing Drawer:
Remove the drawer from the chassis by extending
drawer and pushing the black tabs on the drawer slides
up on the right and down on the left. Pull the drawer
forward.
3. If not using locks, skip to step 4. Using the allen wrench,
punch out the lock knock-out on the right side of the
drawer or cabinet. Assemble lock mechanism as shown.
Ensure the unthreaded part of the lock and key teeth
face upward. See Figure B.
Figure C
4. Insert bolts through the top of the drawer mounting kit
into the drawer or cabinet chassis and lightly secure with
washers and nuts. Repeat for other side. See Figure C.
5. Lift entire chassis and mounting kit assembly to rest on
the inside back and front. Sandwich the front Support
Rail between chassis and drawer mounting kit. See
Figure D & E.
6. Secure to rear channel with bolt, washer and nut.
Tighten all nuts and bolts.
a.
b.
c.
7. Push in drawer slides on chassis and insert complete
drawer into chassis.
If stacking items, insert small bolts from above into
the pre-drilled holes in bottom back of chassis and
lightly secure with nut and washer.
Align second chassis' back keyhole slot with nuts
and pull forward. This will help you support the
drawer while securing front nuts and bolts for
stacking drawers.
Give all nuts and bolts a final tightening.
Q U A N T I T y
1
1
1
2
1
6
6
6
1
1
