UPrIGHTS: EASY LIFT, DUAL-LEG
Item Numbers 8539, 8540
Integrated Mounting Plate
Production Basics, Inc.
Massachusetts, USA
800.318.2770
617-926-8100
PARTS AND HARDWARE
Uprights
3" Bolts
Basic Nuts
Washers
Allen Wrench
•
Note: For correct installation of Uprights, ensure
the worksurface is positioned flush with back of
the Easy-Lift workstation.

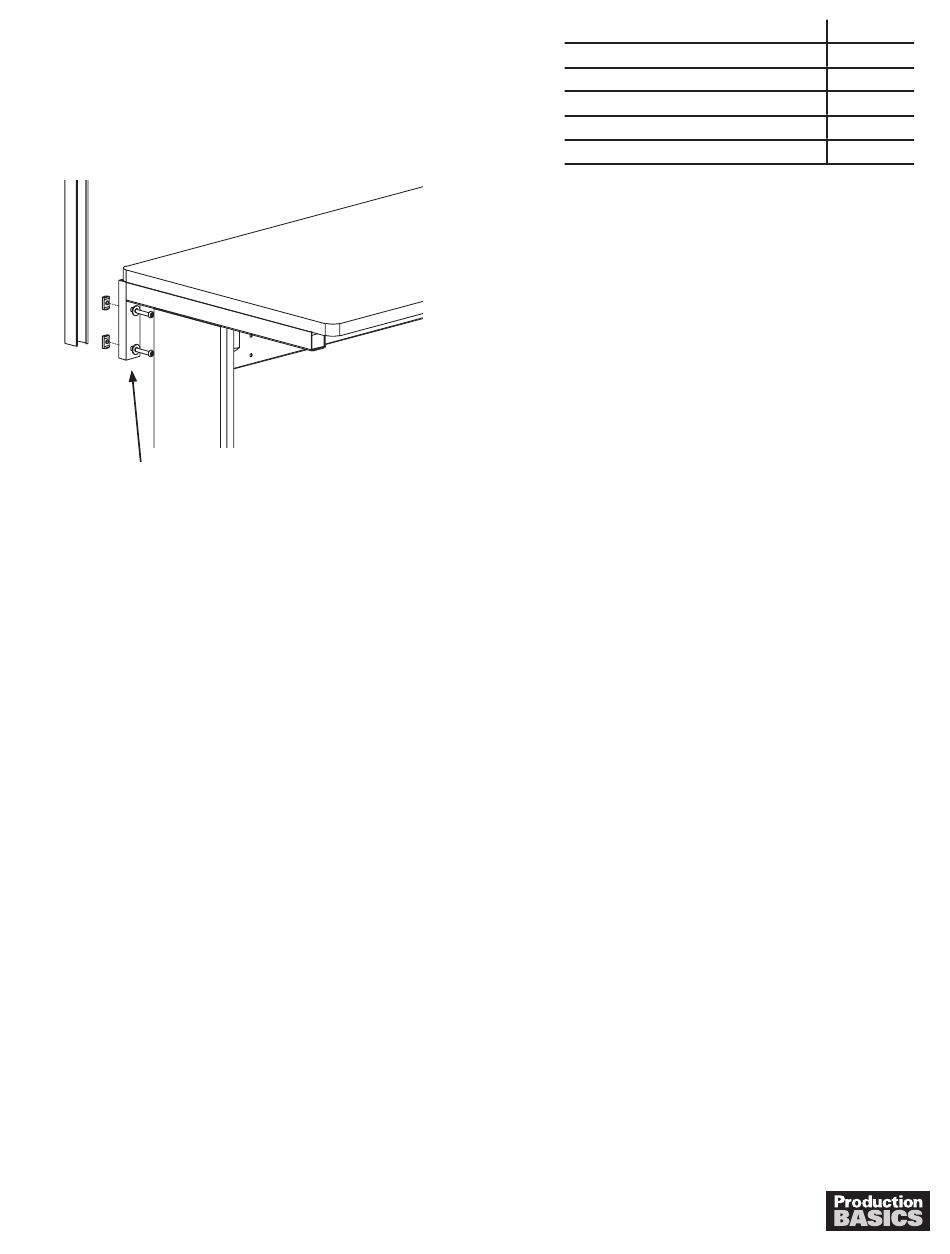

1.
Insert a Basic Bolt and washer into each hole on the
front of the integrated mounting plate. Secure with Basic
Nut. Turn only one revolution. Repeat for other mounting
plate.
2.
Position Uprights against the two (2) Basic Nuts on each
mounting plate. Turn Basic Bolts 90 degrees clockwise to
grip. Tighten the Bolts. Repeat for other Upright. Ensure
Uprights make contact with both Basic Nuts.
Fax: 617-926-8010
www.pbasics.com
QUANTITY
2
4
4
4
1
1
