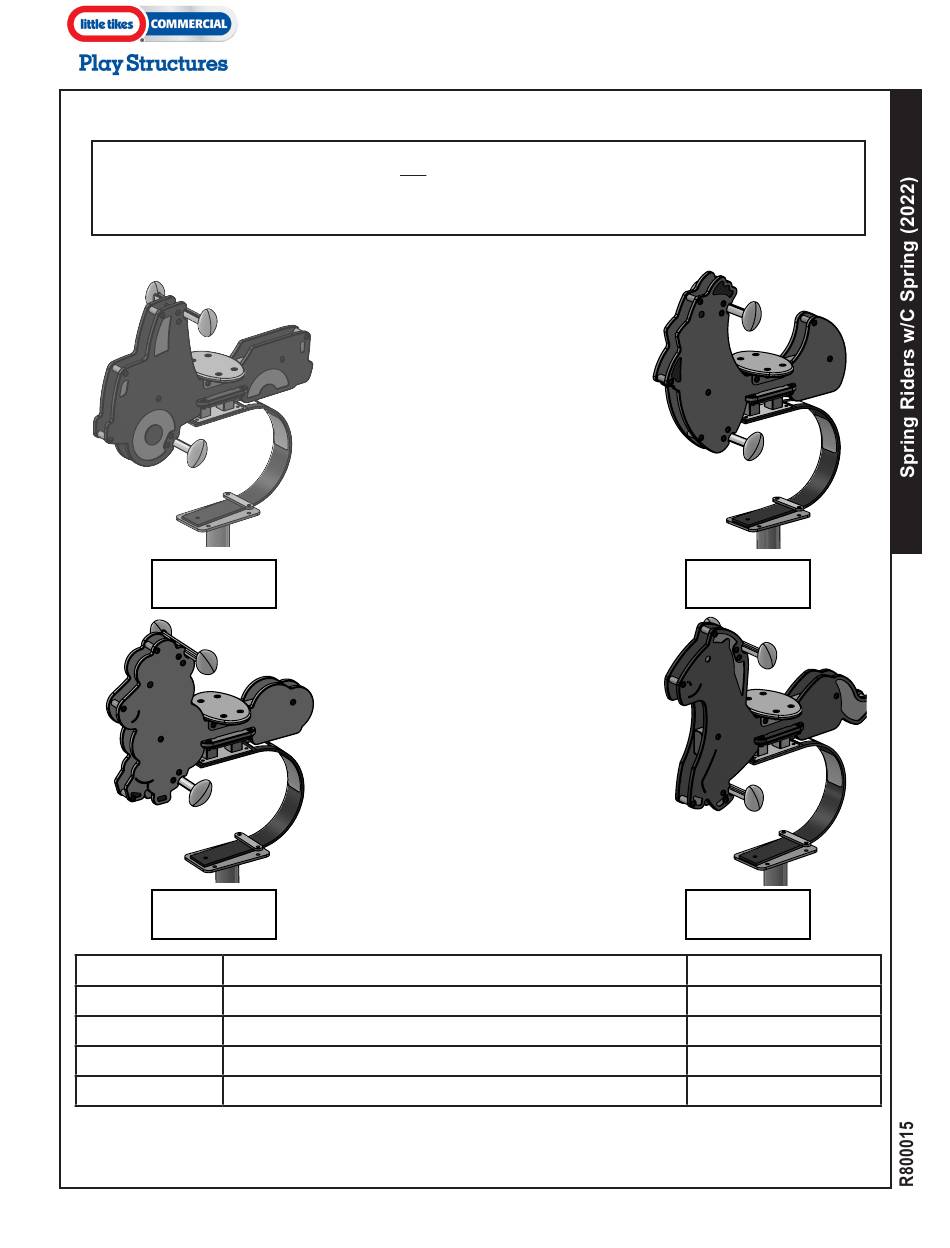

Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse
IMPORTANT!
Prior to installation of any components, refer to the "Owner/Operator Manual". This
manual will provide important information pertaining to site preparation, footings, system stabilization and
other necessary information vital to the success of your installation.
Truck
Sheep
MODEL
200203725
Truck Spring Rider w/C Spring
200203726
Chicken Spring Rider w/C Spring
200203727
Sheep Spring Rider w/C Spring
200203728
Horse Spring Rider w/C Spring
NOTES:
An (*) by a part number (Code) indicates: Color Code Required.
Installation Guide
R800015
Spring Riders w/C Spring (2022)
DESCRIPTION
26JUN23
Chicken
Horse
Protective Area
13' 6" X 15' 6"
13' 6" X 15' 6"
13' 6" X 15' 6"
13' 6" X 15' 6"
Page 1 of 16
Rev. A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Little Tikes 200203725
Summary of Contents for Little Tikes 200203725
- Page 1 Spring Riders w/C Spring (2022) Truck Chicken Sheep Horse MODEL DESCRIPTION Protective Area 200203725 Truck Spring Rider w/C Spring 13' 6" X 15' 6" 200203726 Chicken Spring Rider w/C Spring 13' 6" X 15' 6" 200203727 Sheep Spring Rider w/C Spring 13' 6"...
- Page 2 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse TRUCK SPRING RIDER W/C SPRING Model 200203725 CODE DESCRIPTION 200149521 KIT F/KR SURF MT. C-SPRING (surface mt) 902629BLK TUBE MT. F/KR C-SPRING ING (inground) 200183517 SPRING "C" F/SPRING RIDERS BLKW/STKR...
- Page 3 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse The parts and hardware shown below are used on the surface mount option. KIT F/KR SURF MT. C-SPRING 200149521 (surface mount) CODE DESCRIPTION 200001938 NUT HEX M10 X 1.50 S.S. 200149522 TEMPLATE STEEL F/C-SPRING 200001780...
- Page 4 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse 896mm [35 1/4"] 1014mm [40"] 641mm 641mm [25 1/4"] [25 1/4"] SIDE VIEW - TRUCK SIDE VIEW - CHICKEN 1012mm [39 7/8"] 898mm [35 3/8"] 641mm 641mm [25 1/4"] [25 1/4"] SIDE VIEW - SHEEP...
- Page 5 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse PARTS IDENTIFICATION 930483* TRUCK SPRING RIDER 930484* CHICKEN SPRING RIDER (C-SPRING) (C-SPRING) 930485* SHEEP SPRING RIDER 930486* HORSE SPRING RIDER (C-SPRING) (C-SPRING) Page 5 of 16...
- Page 6 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse 200149033 PARTS IDENTIFICATION 200149033 STRAP F/C-SPRING MOUNT BLK-PARTS ROOM TITLE: STRAP F/C-SPRING MOUNT DIMENSIONS ARE IN MM UNLESS STATED OTHERWISE MAT'L: THE INFORMATION CONTAINED IN Plain Carbon Steel TOLERANCES UNLESS OTHERWISE STATED THIS DRAWING IS THE SOLE PROPERTY OF PLAYPOWER.
- Page 7 2i. Maintain ground cover and remove any debris. Check hardware periodically for tightness. Make sure the spring rider is still secure in the footing. ® 2j. Recommended for use on Little Tikes Commercial Play Systems, Spring Riders only. We ®...
- Page 8 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse SEE PAGES 8 - 12 FOR INGROUND FOOTING STEPS SEE PAGES 13 - 16 FOR SURFACE MOUNT FOOTING STEPS STEP 3 PREPARE INGROUND FOOTING Refer to customer specific model for determining footing type - surface mount or inground.
- Page 9 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 3 PREPARE INGROUND FOOTING (continued) SEE "HOW MUCH CONCRETE" DIRECTIONS ON NEXT PAGE PN 200183517 SPRING "C" F/SPRING RIDERS BLKW/STKR SEE STEP 4 Page 9 of 16...
- Page 10 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 3 PREPARE INGROUND FOOTING (continued) Page 10 of 16...
- Page 11 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 4 ATTACH C SPRING TO INGROUND TUBE (for inground only) 4a. After the concrete has cured, place C spring onto the top plate of the inground footing and attach the single front bolt as shown below.
- Page 12 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 5 ATTACH SPRING RIDER TO TOP OF C SPRING 5a. Attach the spring rider to the top of the C spring in four places with hardware as shown below.
- Page 13 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 6 PREPARE SURFACE MOUNT FOOTING Refer to customer specific model for determining footing type - surface mount or inground. Some hardware may be left over after assembly, please keep the hardware in case replacements are necessary.
- Page 14 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 6 PREPARE SURFACE MOUNT FOOTING (continued) 6c. Position the J-anchors in the concrete before the footing has cured to a hardened state, using the template shown on previous page to locate them. IMPORTANT NOTE: Use dimensions shown below to position the J anchors at the "A"...
- Page 15 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 7 ATTACH BOTTOM OF C SPRING TO FOOTING 7a. After the concrete has cured and the template has been removed, place C spring on the front J anchor bolt and then install the strap with hardware as shown below. PN 200001945 PN 200001945 NUT LOCK HEX NYLON...
- Page 16 26JUN23 Rev. A Spring Riders w/C Spring (2022) - Truck, Chicken, Sheep, Horse STEP 8 ATTACH SPRING RIDER TO TOP OF C SPRING 8a. Attach the spring rider to the top of the C spring with hardware as shown below. 8b.
