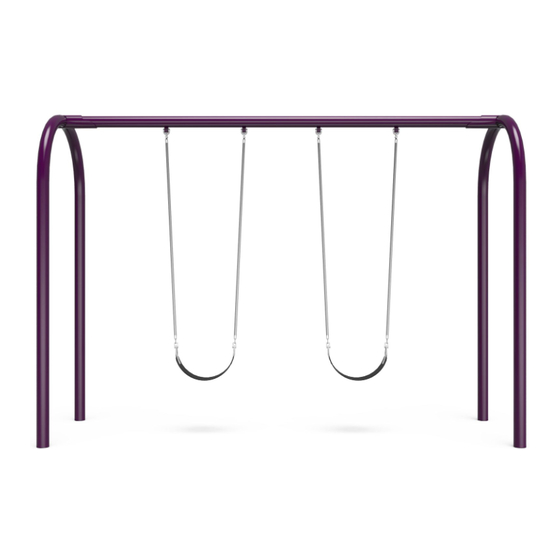

Arch Swing Frames 5" with Anti-Wrap Swing Hangers
(inground and surface mount)
IMPORTANT!
Prior to installation of any components, refer to the "Owner/Operator Manual". This
manual will provide important information pertaining to site preparation, footings, system stabilization and
other necessary information vital to the success of your installation.
NOTE: Inspect equipment on a regularly scheduled basis. Refer to Playground
Inspection/Maintenance and Repair Guidelines located in Installation Manual.
Anti-Wrap Swing Swivel should be inspected monthly to ensure there are no worn,
sharp, vandalized or rusted components. It should also be determined at this time if
more grease is required to keep Swivel moving freely.
MODEL
DESCRIPTION
LT0943
5" 2 Seat Arch Swing W/AW
LT0945
5" 2 Seat Arch Swing Add-A-Bay W/AW
LT0947
5" 1 Seat Arch Swing W/AW
LT0949
5" 1 Seat Arch Swing Add-A-Bay W/AW
Note: An (*) by a part number (Code) indicates: Color Code Required.
1. Concrete for footings, wheelbarrow or mixer, 5 gallon bucket, water supply
2. Digging equipment for footings (spade shovel, post hole digger, auger)
3. Bracing materials (2x4s, wood pieces, concrete blocks, bricks, jackstands, sawhorses, etc.)
4. Tape measure and level
5. Open end wrench set, Allen and 6-lobe wrenches or bits, socket set, screwdrivers
6. Drill, bits, extension cords, power supply
7. Rubber mallet
8. Step ladder
9. Adult installers - 2 minimum
Installation Guide
2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay
TOOLS AND EQUIPMENT REQUIRED
Also see "Installations 101"
I800053
5" Arch Swing Frame
w/Antiwrap (2022)
PAGE
2
3
4
5
Page 1 of 14
11APR22
Rev. A
Advertisement
Related Manuals for Little Tikes LT0943
Summary of Contents for Little Tikes LT0943
- Page 1 Swivel moving freely. I800053 5" Arch Swing Frame w/Antiwrap (2022) MODEL DESCRIPTION PAGE LT0943 5" 2 Seat Arch Swing W/AW LT0945 5" 2 Seat Arch Swing Add-A-Bay W/AW LT0947 5" 1 Seat Arch Swing W/AW LT0949 5"...
- Page 2 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay LT0943 5" 2 Seat Arch Swing w/Anti-Wrap Swing Hangers Protective Area: 24' x 32' Top View - Inground...
- Page 3 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay LT0945 5" 2 Seat Arch Swing Add-A-Bay w/Anti-Wrap Swing Hangers Protective Area: 24' x 32' Top View - Inground DO NOT SCALE Inground Model...
- Page 4 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay LT0947 5" 1 Seat Arch Swing w/Anti-Wrap Swing Hangers Protective Area: 21' x 32' Top View - Inground DO NOT SCALE DO NOT SCALE Inground Model...
- Page 5 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay LT0949 5" 1 Seat Arch Swing Add-A-Bay w/Anti-Wrap Swing Hangers Protective Area: 21' x 32' Top View - Inground DO NOT SCALE Inground Model...
-
Page 6: Parts Identification
11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay PARTS IDENTIFICATION PN 929419* TOP RAIL-3.5"OD X 79.58" (ANTI-WRAP) PN 929418* TOP RAIL- 3.5"OD X 126.58" (ANTI-WRAP) PN 929414* FRAME - 5.00"... -
Page 7: Assembled View
11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay PARTS IDENTIFICATION ASSEMBLED VIEW EXPLODED VIEW PN 102422 ANTI WRAP SWING HANGER 3 1/2" TOP RAIL PN 929426* FRAME-5.00"... - Page 8 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay STEP 1 DIG FOOTINGS (IF APPLICABLE) 1a. Refer to Footing Layout and Construction Drawings for inground and surface mount footing criteria for installation.
- Page 9 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay STEP 3 ASSEMBLE AND ATTACH ANTI-WRAP SWING HANGERS 3a. Locate anti-wrap swing hanger. Remove H-shackle using a wrench with pin hole to remove tamper proof bolt.
- Page 10 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay STEP 4 FASTEN TOP RAIL TO ARCHES 4a. Set arches on ground with stubs facing each other. Firmly seat ends of top rail over each arch stub, aligning mating bolt holes.
-
Page 11: Final Step
11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay STEP 6 POUR CONCRETE (IF APPLICABLE) 6a. Rope off area to prevent access and pour concrete; allow to cure for 72 hours. For surface mount models, see illustration below. - Page 12 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay 5" 2 SEAT ARCH SWING W/AW LT0943 CODE DESCRIPTION 929414* FRAME -5.00" STEEL ARCH SWING ( for inground) 929426* FRAME-5.00"...
- Page 13 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay 5" 1 SEAT ARCH SWING W/AW LT0947 CODE DESCRIPTION 929414* FRAME - 5.00" STEEL ARCH SWING (for inground) 929426* FRAME-5.00"...
- Page 14 11APR22 Rev. A Arch Swing Frames 5" with Anti-Wrap Swing Hangers (inground and surface mount) 2 Seat, 2 Seat Add-A-Bay, 1 Seat, 1 Seat Add-A-Bay PARTS CARTON (2) ANTI-WRAP 3 1/2" 102422 994825 CODE DESCRIPTION 102422 ANTI WRAP SWING HANGER 3 1/2" TOP RAIL 104403 BOLT 1/4-14 X 1 1/4 HEX WASHER TEK 102424...
