Summary of Contents for Westbo Victoria 240

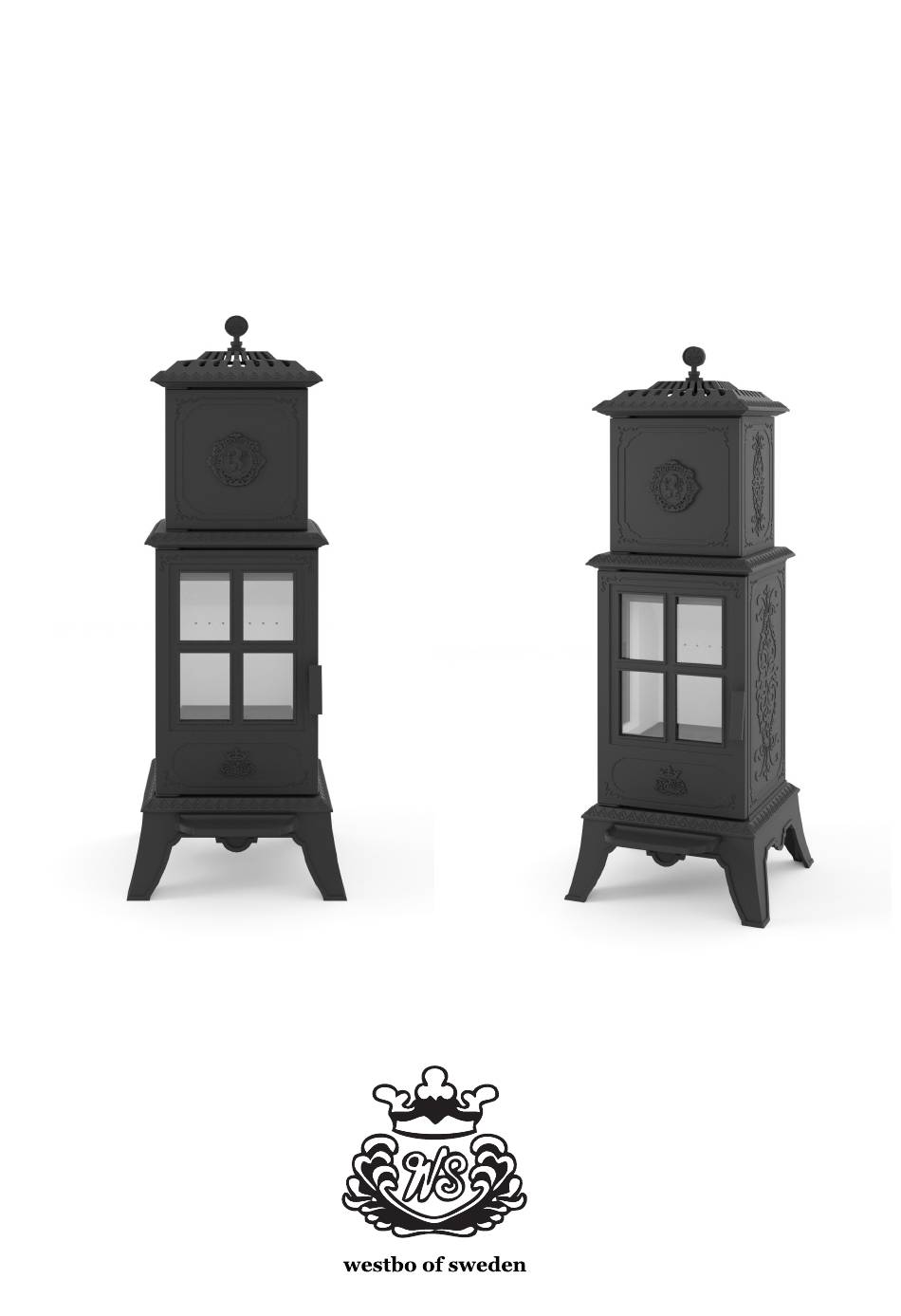

- Page 1 M A N U A L & I N S T R U C T I O N Westbo Victoria 240...
- Page 2 General instructions How to use the stove Air Controls Westbo Victoria is equipped with one air control located under the stove, see picture to the right. Fire up We recommend you to use fire starters or equivalent that you find at your dealer.
- Page 3 Make your connection in the following order: led. Measure out the centre of the hole Westbo Victoria has adjustable feets so you can adjust the Use suitable tools to make the hole stove to the right level, if the floor is not flat.
- Page 4 Victoria Replace the glass/ash handling Replacing the front glass Remove clips that hold the glass in place and then install the new glass Sealing string. Replace if necessary Emptying the ash container Open the tray with the lever (A) and put the ash in the ash container.
- Page 5 Victoria Disassembe/assemble the firebricks When sweeping it is a must to remo- 1. Start with the small side-brick 2. Then remove the big side-brick ve the two smoke shelves from the by first lift the roof brick that lock the stove.
- Page 6 Victoria Fire advise Air supply Continuous firing Westbo Victoria is equipped with one air control. 1. Operate the fire with air control 3 and 1. Emptying the ashes You will mainly control your rate of combustion with air control 3.The conditions for controlling combustion vary depending on...
- Page 7 Victoria Wood handling Preparation Correct amount of wood You will get the best wood if it os cleared, sawn and splitted before How much is one kilo of wood? There are lots of good litterature the month of May. Remeber to adjust the wood to your stove. We to get more educated in wood handling.
- Page 8 Victoria Technical information Tecnical information Weight: 175 kg Material: Cast iron Output: 4,6 kW Efficiency: 82 % CE approved: According to EN 13240/A2: 2004/AC: 2006 Drawn Date 12.Aug.2021 Checked Doc.Nr Sheet V240 Size...
- Page 9 Victoria Measure and technique Flamable wall Flamable wall Fire wall Fire wall Back connection Flamable wall Flamable wall Fire wall Fire wall...
- Page 10 Victoria Warranty...
- Page 11 2021-11...
