Summary of Contents for Westbo Victoria

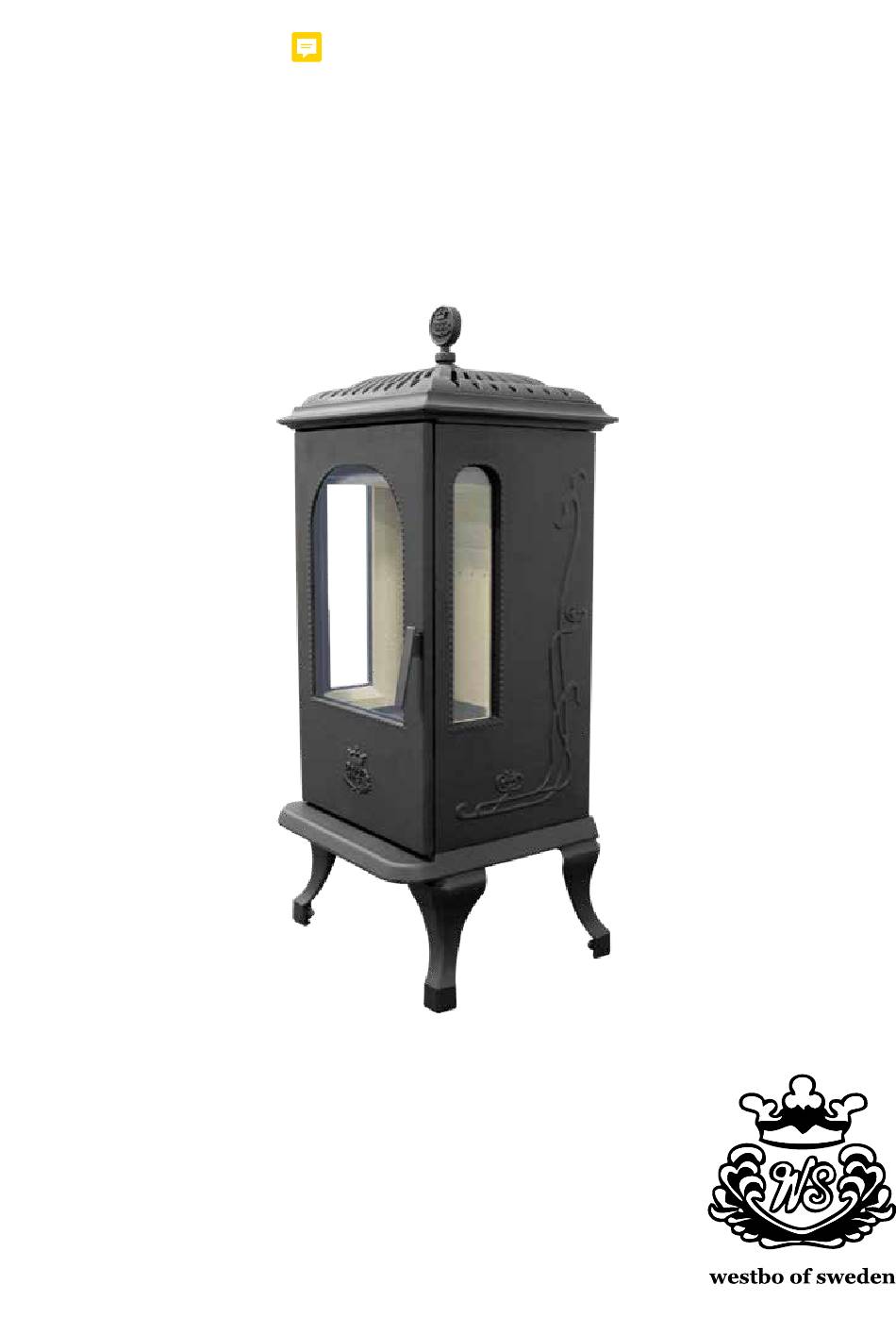

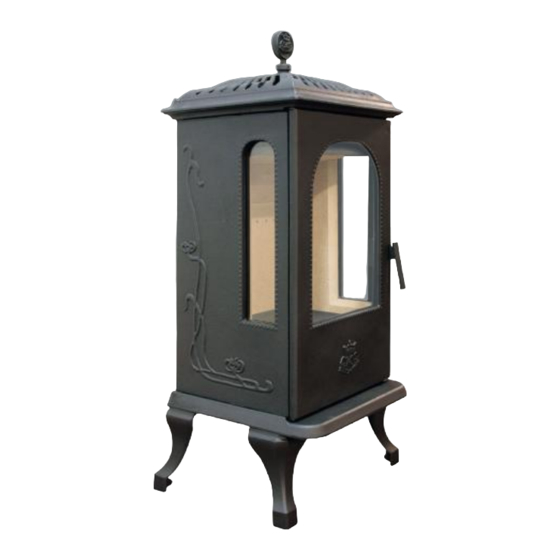

- Page 1 M A N U A L & I N S T R U C T I O N S Westbo Victoria...
- Page 2 General instructions Victoria How to use Air Controls Westbo Victoria is equipped with one air control and it sits under the stove, see picture on right. Fire up We recommend you to use fire starters or equivalent that you find at your dealer.
-
Page 3: Montage
Do not put on the Crown on until the stove have been installed. 4. Insert the flue pipe into the spigot then connect with the stove Victoria has adjustable feet so you can adjust the stove to the seal between the spigot and flue pipe(preferably seal rope) The right level, if the floor is not flat. -
Page 4: Replacing The Front Glass
Replace the glass windows if broken Victoria Replacing side glass 1. Start by taking out firebricks according to the instructions on the next page. 2. Then remove grate bottom. The handle of the rust is assembled with a nut that you access through the opening for the ash tray. - Page 5 Disassembe/assembe the firebricks Victoria 1. Start with the small side-brick 2. Then remove the big side-brick by first lift the roof brick that lock the big-side brick 4. After that take out the angle-brick 3. Take down the roof-brick 5. To assemble again just do it in Now it´s easy to remove the rest of...
-
Page 6: Technical Info
Technical info Victoria Tecnical data Weight: 170 kg Material: Cast-iron Output: 6 kW Efficiency: 78,3 % Distance to cobastable wall behind: 120 mm CE tested: According to EN 13240 *120 Distance to combastible Brännbar vägg/med sidoglas Brännbar vägg/med sidoglas 450/630 golvplåt... - Page 8 Scandinavisk Spismiljö AB Ekslingan 1, Väla Norra 254 67 Helsingborg Tel 042-12 69 50 Fax 042-12 69 40 www.spismiljo.se...
