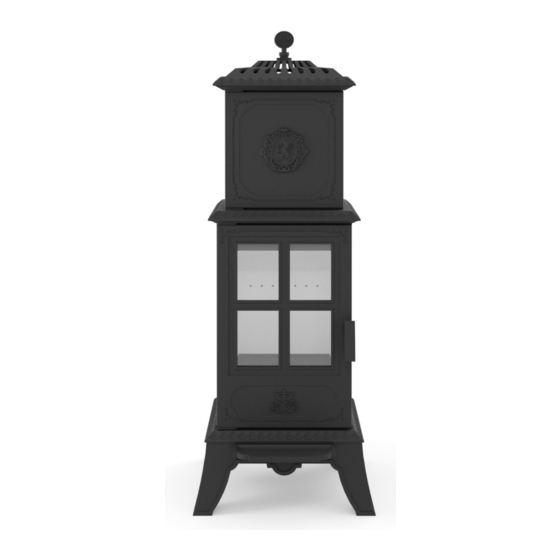

- Page 1 MANUAL AND INSTRUCTION WESTBO VICTORIA 240 Westbo of Sweden...
-
Page 2: General Instruction
General instruction How to use the stove Air Controls Westbo Victoria is equipped with one air control located under the stove, see picture to the right. Fire up We recommend you to use fire starters or equivalent that you find at your dealer. - Page 3 Make your connection in the following order: 1. Measure out the centre of the hole. Westbo Victoria has adjustable feets so you can adjust the stove to the right level, if the floor is not flat. 2. Use suitable tools to make the hole.
- Page 4 Westbo Victoria 240 Replace the glass/ash handling Replace the front glass Remove the clips that hold the glass in place and then install the new glass. Sealing string, replace if necessary. Emptying the ash container Open the tray with the lever (A) and put the ash in the ash container.
- Page 5 Westbo Victoria 240 Disemble/assemble the fire bricks When sweeping it is a must to 1. Start with the small side-brick. 2. Then remove the big side-brick remove the two smoke shelves from by lifting the roof brick that locks the the stove.
- Page 6 Westbo Victoria 240 Fire advise Air supply Continuous firing Westbo Victoria is equipped with one air control. 1. Operate the fire with air control 3 and 1. Emptying the ashes You will mainly control your rate of combustion with the air control.
- Page 7 Westbo Victoria 240 Wood handling Preparation You will get the best wood if it is cleared, sawn and splitted before the month of May. Remeber to adjust the wood to your stove. We recom- mend a diameter of 6-10 cm and that the logs are six cm shorter than the fire place to get the best effect of the wood and stove.
-
Page 8: Technical Information
Westbo Victoria 240 Technical information Drawn Date 12.Aug.2021 Checked Doc.Nr Sheet V240 Size Technical information Weight 175 kg Material Cast iron Medeleffekt 4,6 kW Efficiency 81 % CE-approved EN 13240/A2 2004/AC: 2006 Westbo of Sweden Utgåva 22-10... - Page 9 Westbo Victoria 240 Measure and technique Flamable wall Flamable wall Fire wall Fire wall Back connection Flamable wall Flamable wall Fre wall Fire wall Westbo of Sweden...
-
Page 10: Warranty
Westbo Victoria 240 Guarantee WARRANTY Westbo of Sweden has a 10 year stove casting warranty and a 1 year warranty concerning natural wear and tear of articles of consumption such as firebricks, vermiculite, grates, glass, handles and rope seal. The warranty is only valid if the stove has been used in a proper way... - Page 11 Westbo Victoria 240 Declaration of performance according regulation (EU) 305/2011 No 2022-09-22 Essential characteristics according to Statement by the manufacturer regulation (EU) 305/2011 Unique identification code of the product- Freestanding roomheater „Westbo Victoria type 100/240/Nobel“ Intended use(s) Roomheater without hot water supply...
- Page 12 Westbo Victoria 240 Product fiche according to Regulation (EU) 2015/1186 Roomheater Westbo Victoria 100/240/Nobel Westbo of Sweden AB Supplier's name or trademark Industrigatan 8 S-333 75 Reftele, Sweden Westbo Victoria 100/240/Nobel Supplier's model identifier Energy efficiency class of the model...
- Page 13 Westbo Victoria 240 Technical documentation according to regulation (EU) 2015 / 1185 Supplier's name or trademark: Westbo of Sweden AB, Industrigatan 8, S-333 75 Reftele, Sweden Applied harmonised standard: EN 13240:2001 /A2:2004/AC:2007 Test report number: RRF – 40 19 3772-1 Notified body: Rhein-Ruhr Feuerstätten Prüfstelle GmbH, (NB1625)
- Page 14 Westbo Victoria 240...
- Page 15 Westbo Victoria 240...
