Vision3 Lighting MO1 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while lamp is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap, or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate the luminaire with damaged or missing parts.
7. Do not install luminaire within 10 feet of a pool, spa, or fountain.
8. Have fixture installed in accordance with all applicable installation
codes and standards by a person familiar with the construction and
operation of the fixture and the hazards involved.
Un-assemble & Inspect:
1. Unpack the MO1 Junction Mount with Driver from its shipping
container. Note: The MO1 Junction Mount with Driver may
be packaged partially un-assembled for ease of handling and
shipping.
2. Check that there are no damaged or missing components.
3. Loosen the three Cap Screws using a 3/32" hex tool.
4. Remove the Stake Cap from the Stake Body.
Install Stake Body In-grade:
1. At the desired location, prepare an appropriate size hole for the
Stake Body.
2. Run conduit (not supplied) to the prepared hole. Note: Check all
applicable building codes for requirements regarding landscape
lighting conduit and cable.
3. Place the Stake Body in-grade so that the line on the grade label
is at grade. Note: the MO1 Junction Mount with Driver must not
be installed such that any part of the Stake Cap will be buried or
touching any soil or ground covering. Failure to keep the Stake
Cap from touching the ground will void warranty and may cause
rapid corrosion of metal parts.
4. Keeping the Stake Body at the appropriate level from Step 3,
attach the Supply Conduit to the Conduit Entry fittings on the
Stake Body using PVC cement appropriate for underground
electrical conduit. Cap any unused Conduit Entry with the
appropriate plug and PVC cement to prevent leaking. Seal conduit
entering the Stake Body to prevent any water that may leak in
to the conduit system from entering the Stake Body and causing
catastrophic failures. Note: All conduit must be sealed at the
fixture. Failure to cap unused conduit entry slip fittings or seal
any conduit entering the Stake Body will void the warranty.
5. Secure the Stake Body by filling in the hole. Make sure that the
proper level from Step 3 is maintained.
6. Feed enough supply wiring through the conduit into the Stake
Body to facilitate connection with Luminaire.
Make Electrical Connections:
Note: The MO1 Junction Mount with Driver must be purchased with a
Vision3 COB Luminaire which will be installed and wired to the driver
at the factory.
1. Using appropriate sized wire nuts (not supplied), connect the
supply hot wire (typically black) to the black Driver Input Lead,
the supply neutral wire (typically white) to the white Driver Input
Lead, and the supply ground wire (typically green) to the green
©2002-2021 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
9. Use only cable properly rated for the application. Cable buried more
than 6" must be suitable for direct burial. Direct burial cable may be
ordered from Vision3 Lighting.
10. MO1 housing is intended for use in wet locations only and should
not be used where it may become submersed in water.
11. All conduit must be properly attached to the housing and
sealed at the fixture. Sealing the conduit entering each fixture
prevents any leaks from traveling through the conduit system
and causing catastrophic failures. Failure to cap unused conduit
entry slip fittings or seal any conduit entering the housing will
void the warranty.

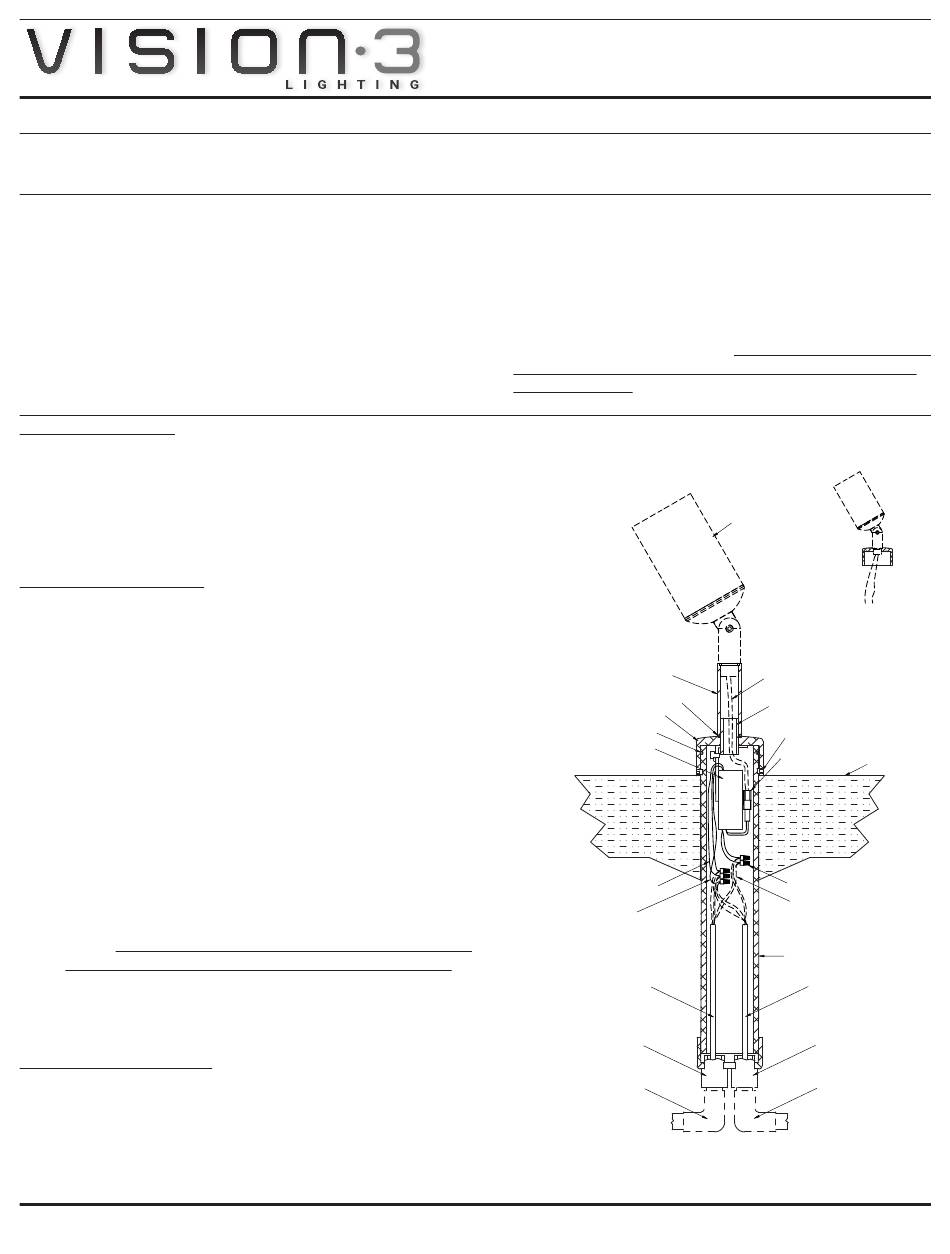

Stake Cap
O-Ring
LED Driver
Driver Input Wires
Ground Lead
Supply Wires
(Power In)
Conduit Entry
Supply Conduit
(559) 834-5749
- Page 1 -
MODEL MO1
Stake Mount
Junction Stake with Driver - Style 5
Vision3 COB
Luminaire
Stem
Leads From Luminaire
O-Ring
Nipple
Cap Screw
Driver Output
Quick-Connect
Wire Nuts
0-10V Dimming Leads
Stake Body
(559) 834-4779 fax www.vision3lighting.com
Flush Mounting
(No Stem)
Grade
Supply Wires
(Power Out)
Conduit Entry
Supply Conduit
revision 8/11/21
