INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fi re, injury, failure of product, and/or voiding of warranty.)
1.
Do not touch while lamp is on. Turn off /unplug and allow to cool
before replacing lamp.
2.
Lamp gets HOT quickly! Contact only switch/plug when turning on.
3.
Keep lamp away from materials that may burn.
4.
Do not install fi xture in contact with combustible materials.
5.
Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6.
Do not operate with damaged or missing parts.
7.
Do not disassemble beyond faceplate removal to facilitate lamp and
accessory installation/replacement, or as otherwise directed in the
installation instructions below.
8.
Remove any debris or build-up accumulated on the faceplate or lens
periodically. Replace lens if necessary. Failure to do so could result
in reduction in performance, fi xture overheating, or fi re.
1 - Notes:
• This fi xture should not be mounted in such a way that the Faceplate is
buried or below grade.
• This fi xture requires a remote transformer.
• Wiring connections must not be exposed to moisture/water. All wiring
must be done in an industry standard water tight manner. Failure to do
so could result in a failure from water being siphoned into the Housing
thru the wire strands in the Power Cable.
• LED models should only be powered and controlled by compatible
transformers and control systems. Contact Vision3 Lighting for
approved transformer / controls list. Using non-approved transformers
/ controls could cause the LED to not operate properly or fail.
• Integral LED options come with a High/Low switch. See 'LED
Switching' instructions on next page. Switch will be set to 'High'
setting at the factory, unless otherwise specifi ed when ordered.
• Use only Vision3 approved Retrofi t MR16 LED options and supplied
Heatsink Mount, otherwise LED may overheat and fail.
• LED ratings subject to change without notice. See website or contact
V3 for most current info.
• Lens temperatures can get hot enough, with some lamps, to cause
injury when touched. See Lens Temperature table and take proper
precautions.
• Caution! Fixture will be hot if lamp is on. Remove power and allow
fi xture to cool before performing any adjustments or maintenance.
©2008-2024 Vision3 Lighting™
Installation Instructions
Lens Temperature
Lamp
T
1
lens
LED
45ºC to 50ºC
20W & 20W IR
90ºC to 110ºC
35W & 37W IR 117ºC to 153ºC
42W
130ºC to 160ºC
1 - varies with lamp and lens options.
Note Lens temperatures can get
hot enough, with some lamps, to
cause injury when touched.
These lamps should not be used
where it is possible for the lens to
be touched.
P.O. Box 607, Fowler, CA 93625
MR16 Remote Sealed Ingrade
9.
Do not install within 10 feet of a pool, spa, or fountain.
10. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved. Consult a qualifi ed electrician to ensure
correct branch circuit conductor.
11. Use only cable rated for low voltage. Cable buried more than 6"
must be suitable for direct burial. Direct burial cable may be ordered
from Vision3 Lighting.
12. Lens temperatures can get hot enough, with some lamps, to cause
injury when touched. See Lens Temperature table below and take
proper precautions.
13. Failure to follow these instructions can cause fi re, injury, and/or
void warranty.

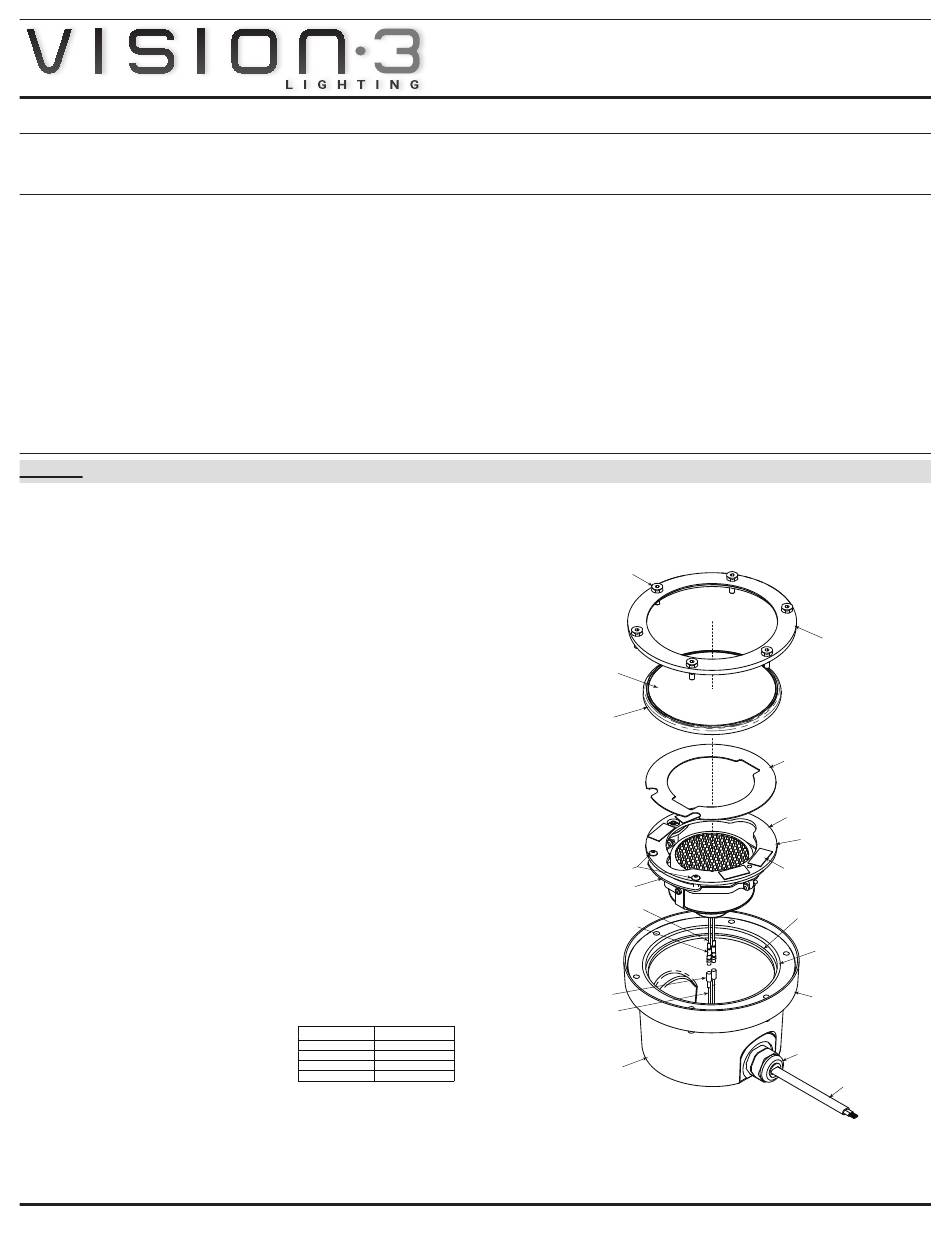

Model IG4 Exploded Assembly
Captive Faceplate Screw (6)
Lens
Lens Seal
Locking Screws (2)
Locking Clamp
Lamp Module Leads (2)
Lamp Module Connectors (2)
Power Connectors (2)
Power Leads (2)
Housing
(559) 834-5749
- Page 1 -
MODEL IG4
12V 42W Max., MR16 Halogen
12V 8W Max., COB LED w/ Driver
(shown with MR16H Lamp Module)
Trim Ring
(not used on all models)
Top Plate
Lamp Module
(MR16H shown)
Label
Retaining Lip
Cable Pass-thru
(559) 834-4779 fax
www.vision3lighting.com
Faceplate
Seal Groove
Pour Collar (optional)
Power Cable
revision 02/05/24
