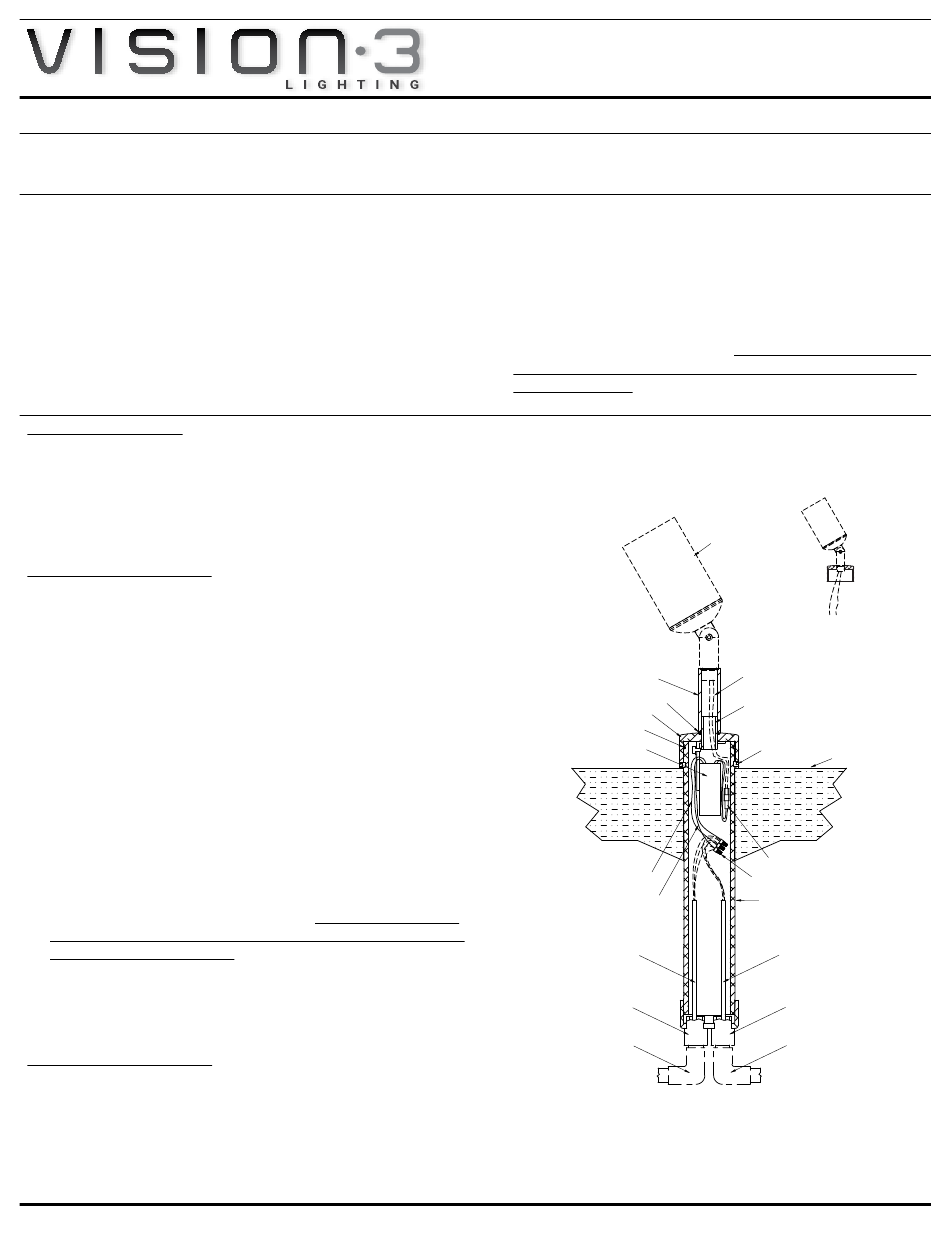

Vision3 Lighting MO1 Installation Instructions

Junction stake with transformer - style 3

Advertisement

Quick Links

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while lamp is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap, or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate the luminaire with damaged or missing parts.
7. Do not install luminaire within 10 feet of a pool, spa, or fountain.
8. Have fixture installed in accordance with all applicable installation
codes and standards by a person familiar with the construction and
operation of the fixture and the hazards involved.
Un-assemble & Inspect:
1. Unpack the MO1 Junction Mount with Transformer from its shipping
container. Note: The MO1 Junction Mount with Transformer may be
packaged partially un-assembled for ease of handling and shipping.
2. Check that there are no damaged or missing components.
3. Loosen the three Cap Screws using a 3/32" hex tool.
4. Remove the Stake Cap from the Stake Body.
Install Stake Body In-grade:
1. At the desired location, prepare an appropriate size hole for the Stake
Body.
2. Run conduit (not supplied) to the prepared hole. Note: Check all
applicable building codes for requirements regarding landscape
lighting conduit and cable.
3. Place the Stake Body in-grade so that the line on the grade label is
at grade. Note: the MO1 Junction Mount with Transformer must
not be installed such that any part of the Stake Cap will be buried or
touching any soil or ground covering. Failure to keep the Stake Cap
from touching the ground will void warranty and may cause rapid
corrosion of metal parts.
4. Keeping the Stake Body at the appropriate level from Step 3, attach
the Supply Conduit to the Conduit Entry fittings on the Stake Body
using PVC cement appropriate for underground electrical conduit.
Cap any unused Conduit Entry with the appropriate plug and PVC
cement to prevent leaking. Seal conduit entering the Stake Body
to prevent any water that may leak in to the conduit system from
entering the Stake Body and causing catastrophic failures. Note:
All conduit must be sealed at the fixture. Failure to cap unused
conduit entry slip fittings or seal any conduit entering the Stake
Body will void the warranty.
5. Secure the Stake Body by filling in the hole. Make sure that the
proper level from Step 3 is maintained.
6. Feed enough supply wiring through the conduit into the Stake Body
to facilitate connection with Luminaire.
Make electrical connections:
Note: Check that voltage being supplied from Transformer matches
requirements on Luminaire label and that power being supplied from the
Supply Wire matches requirements on Transformer label.
1. Connect the Transformer power leads to the Power Supply Wires
(black, white, green to hot, neutral, ground, respectively) using
appropriate connectors (not supplied) per applicable codes.
©2002-2021 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
Junction Stake with Transformer - Style 3
9. Use only cable properly rated for the application. Cable buried more
than 6" must be suitable for direct burial. Direct burial cable may be
ordered from Vision3 Lighting.
10. MO1 housing is intended for use in wet locations only and should
not be used where it may become submersed in water.
11. All conduit must be properly attached to the housing and
sealed at the fixture. Sealing the conduit entering each fixture
prevents any leaks from traveling through the conduit system
and causing catastrophic failures. Failure to cap unused conduit
entry slip fittings or seal any conduit entering the housing will
void the warranty.
Stake Cap
O-Ring
Electronic Transformer
Transformer Input Wires
Ground Lead
Supply Wires
(Power In)
Conduit Entry
Supply Conduit
(559) 834-5749
- Page 1 -
MODEL MO1
Stake Mount
Flush Mounting
(No Stem)
Luminaire
Leads From Luminaire
Stem
O-Ring
Nipple
Cap Screw
Quick Disconnects
Wire Nuts
Stake Body
Supply Wires
(Power Out)
Conduit Entry
Supply Conduit
(559) 834-4779 fax
www.vision3lighting.com
Grade
revision 8/18/21
