Vision3 Lighting IG6 Installation Instructions Manual

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fi re, injury, failure of product, and/or voiding of warranty.)
1. Do not touch fi xture while lamp is on. Turn off /unplug and allow to
cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, faceplate, brackets or housing.
4. Keep lamp away from materials that may burn.
5. Do not install fi xture in contact with combustible materials.
6. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
7. Do not operate with damaged or missing parts.
8. Do not disassemble beyond faceplate removal to facilitate lamp and
accessory installation/replacement, or as otherwise directed in the
installation instructions below.
Unpack:
1. Unpack the fi xture and all fi xture components from their packaging. Note:
Wiring components, Pass-thru, and Cover may be shipped inside of Housing.
2. Check through all packaging material to make sure there aren't any items
hidden in it before discarding.
Inspection:
1. Inspect all parts for shipping damage, such as: broken lenses, broken lamps,
cut or nicked leads, damage to the Pass-thru that could cause leaks, damaged
lens seal, etc. If any damage is found, do not install fi xture. Contact Vision3
lighting so that damaged items can be repaired or replaced.
2. Double check the fi xture with the packing list and order to ensure that all
options and accessories are accounted for. Contact Vision3 lighting imme-
diately if any discrepancies are found. Note: Wiring components, Pass-thru,
and Cover may be shipped inside of Housing.
3. Cover and store all parts in a clean, dry, and safe place until it is time for
installation. Note: Plastic bags are handy for keeping parts organized and
clean during storage.
Housing Installation:
Landscape Installation
(See Landscape Installation sketches, next page).
1. Before beginning Housing installation, examine Housing to ensure that there
is no damage, visible defects, or missing parts. Contact Vision3 lighting if
any issues are found. Note: Use the dust cover shipped on the Housing to
keep dirt out of the Housing during installation.
2. Dig a hole approximately 12" dia. by 10" to 15" below grade and trench for
conduit.
3. Install edging around the hole, as shown in drawing on page 2. Make sure
that the top of the edging is about 1" to 2" above grade to allow for ground
covering (such as bark, rock, low growing ground cover, etc.). The edging
prevents lens overgrowth and creates an edge for trimming, while the eleva-
tion helps prevent submersion in water during rain. Once the ground cover is
in place or grows high enough, the fi xture will appear to be fl ush.
4. Begin fi lling in the hole with soil in 1" to 2" increments, compacting as you
go, until the IG6 Housing can be placed at the bottom of the hole with the
top of the Housing 1/4" above the top of the Edging. Note: If the local soil
conditions prevent proper drainage, such as with clay, then it is recommend-
ed that sand or a loose soil/peat gravel mixture be used to backfi ll the hole.
It may also be required to dig a deeper hole to allow for thorough drainage
around fi xture.
5. Place the IG6 Housing in the bottom of the hole in the desired orientation
and to the proper height (top of the Housing 1/4" above the top of the Edg-
ing). If you are using the Optional Mount Stand, adjust it per the instructions
below. You may also pack fi ll soil around the base to keep it in the desired
position.
6. Run Conduit (not supplied) to the IG6 Housing. Note: use conduit and con-
duit installation methods that adhere to all applicable standards.
7. Attach the Conduit to the IG6 Housing using an appropriate connector. Make
©2008 - 2023 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
9. Remove any debris or build-up accumulated on the faceplate or lens
periodically. Replace lens if necessary. Failure to do so could result
in reduction in performance, fi xture overheating, or fi re.
10. Do not install within 10 feet of a pool, spa, or fountain.
11. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved.
12. Consult a qualifi ed electrician to ensure correct branch circuit
conductor.
13. Use only cable properly rated for the application.
14. Failure to follow these instructions can cause fi re, injury, and/or
void warranty.

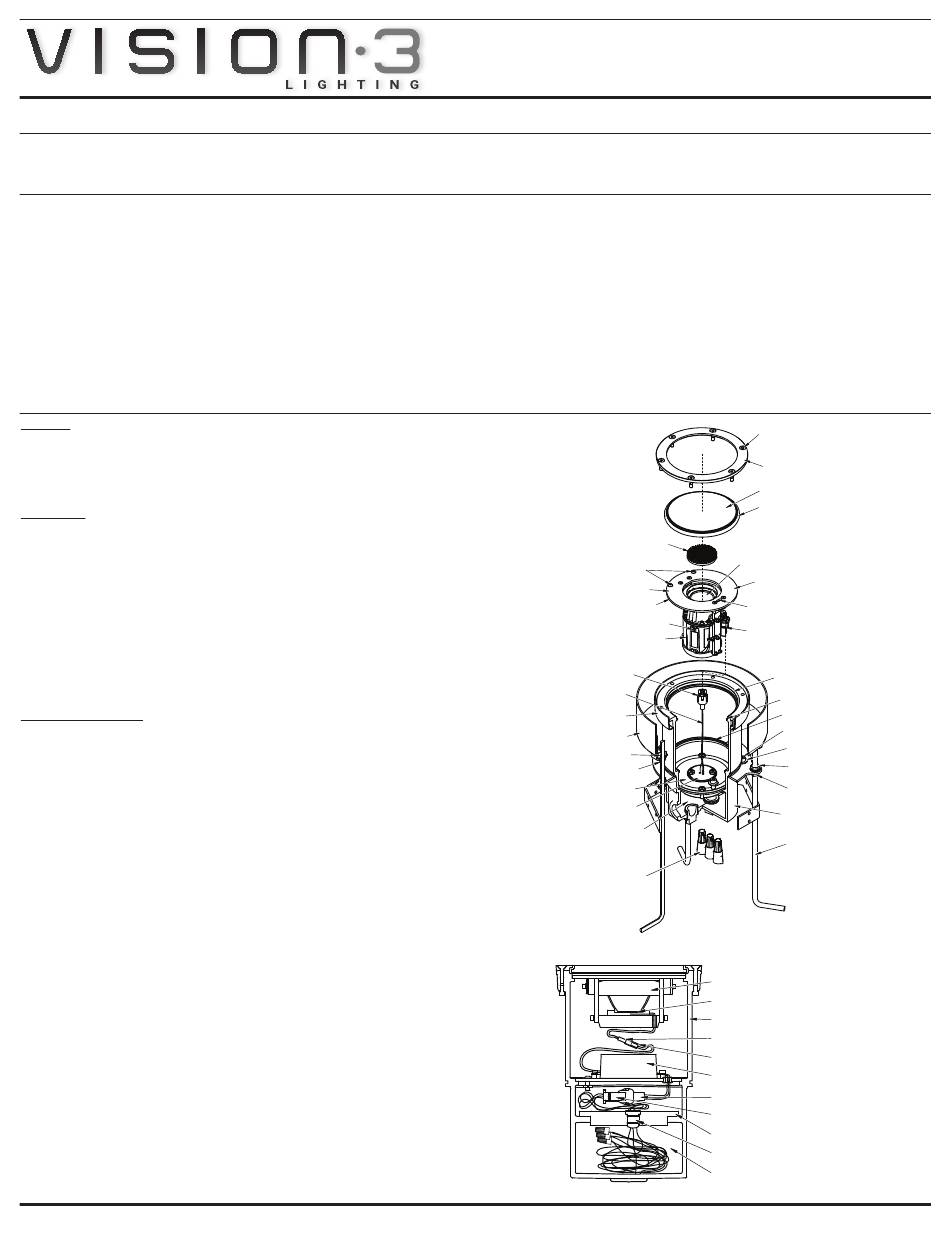

Accessories
Lamp Module Locking Screws (2)
Top Plate
Lamp Module Locking Clamp
Output Button
LED w/ Integral Driver
Power Supply Connector
Power Leads (3)
Pour Collar (optional)
Grout Mask (optional)
Grout Mask Locking Nut (3)
Grout Mask Adjusting Nut (3)
Wiring Compartment Cover
Water Tight Pass-thru
Wiring Compartment
Silicone Filled Wire Nuts (3)
(Integral Driver LED Version Shown)
COB w/ Driver Version
(559) 834-5749
- Page 1 -
MODEL IG6
LED Sealed Ingrade
21W Max. COB LED w/ Driver
Captive Faceplate Screws (6)
Faceplate
Lens
Lens Seal
Accessory Holder
Lamp Module
Aiming Port
Lamp Module Connector
Seal Groove
Upper Retaining Lip
Lower Retaining Lip
Mount Stand Clamp Screw (3)
Mount Stand Clamp Washer (3)
Mount Stand Locking Nut (3)
Mount Stand Adjusting Nut (3)
Housing
Mount Stand (optional)
Integral Accessory Holder
LED Module
Housing
LED Module Connector
Driver Output Connector
Driver Module
Driver Input Connector
Power Supply Connector
Gasketed Wiring Cover
Water Tight Pass-thru
Wiring Compartment
(559) 834-4779 fax www.vision3lighting.com
revision 10/18/23
