Vision3 Lighting FL12 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while fixture is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate with damaged or missing parts.
Installation:
Notes:
• This fixture should not be mounted in such a way that it is buried or in
direct contact with the ground or soil.
• Integral Driver LED models come with push button manual selection of
4 different outputs. See 'Changing Integral Driver LED Output Level'
instructions on next page. Output will be set at factory to highest setting,
unless otherwise specified when ordered.
• Integral Driver LED models also allow for 100-277V 0-10V dimming
(at three highest push button light level settings only) and 120V phase
dimming (at highest push button light level setting only). Integral Driver
LED models should only be used with compatible dimming systems.
Contact Vision3 Lighting for further information.
• COB LED's must be powered by a Vision3 Lighting approved LED driver
with the proper rating. Check specification sheet and fixture label for
proper ratings.
• When removing the cap from a COB model, take care to pull the cap
straight off. "Cocking" or pulling off to the side could break the Reflector.
• All ratings subject to change without notice. See website or contact V3 for
most current info.
Caution! Fixture will be hot when on. Remove power and allow fixture to cool
before performing any adjustments or maintenance.
1. For COB LED models: Install Accessory Lenses as explained in
Accessory Maintenance steps 1 thru 7 below and the Reflector as
explained in Changing COB LED Optics steps 3 & 4 below.
2. Install fixture by threading the knuckle into the mount hole of an
appropriate mounting option. Use supplied O-ring (when used with
appropriate mount) to create a water tight seal. Use supplied Lock Nut to
secure fixture to mount option. See mount option installation instructions
for further installation procedures.
3. Connect the fixtures power leads to the power supply wires using
appropriate connectors (not supplied) per applicable codes. Note: Be sure
power/amperage being supplied matches requirements on Label.
a. Halogen/Integral Driver LED: black, white, green connect to hot
(typically black), neutral (typically white), ground (typically green
or bare copper), respectively.
b. COB LED: red and black connect to positive(+) lead (typically
red) and negative(-) lead (typically black) from Vision3 Lighting
approved LED driver, respectively.
4. For Integral Driver LED models: Connect the fixtures dimming leads to
the dimming control wires using appropriate connectors (not supplied)
per applicable codes. The 0-10V(-) control wire (typically gray) should
attach to the gray fixture lead, and the 0-10V(+) control wire (typically
purple) should attach to the fixtures purple lead. If 0-10V dimming is not
being used, each of the fixtures dimming leads should be cut and capped
separately (connectors not supplied). Note: capping the dimming leads
together or allowing them to touch ground may prevent the LED from
operating normally. Make sure they are capped separately if not being used.
Fixture Aiming:
1. Loosen the Vertical Adjustment Screw using a 5/32" hex tool – do not
remove screw!
©2005-2019 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
Side Mount LED Flood
100-277V 20W Max. LED w/ Integral Driver
21W Max. COB LED (Remote Driver Req'd)
7. Do not disassemble beyond cap removal to facilitate lamp and/or
accessory installation or replacement.
8. Remove any debris accumulated in the cap periodically.
9. Do not install within 10 feet of a pool, spa, or fountain.
10. This is a line voltage fixture, use properly rated cable.
11. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved.
2. Grab fixture Body and push/pull to break grip of tapered knuckle lock.
3. Slightly tighten Vertical Adjustment Screw, using the 5/32" hex tool, so
that fixture holds position when released, but still moves when adjusted.
4. Slightly loosen the Horizontal Adjustment Screw (Available on K2
knuckle option only), using the 5/32" hex tool - do not remove screw!
5. Slightly tighten the Horizontal Adjustment Screw (Available on K2
knuckle option only) so that the fixture can be rotated, but still holds
position.
6. Adjust fixture to the desired angle. Do not force the fixture past the
natural stops built in to the knuckle. Note: Rotate fixture fully in opposite
direction if a stop is hit before reaching the desired position.
7. Tighten the adjustment screws using the 5/32" hex tool. Do not over
tighten! Tapered knuckle lock requires very little tightening to ensure
fixture is locked in position.
8. Adjust cap so that Drain Hole, if any, is oriented at the lowest point
allowable.
PAR20 Halogen Lamp Maintenance (for certain models):
1. Remove power from fixture and let cool before touching. Caution!
Luminaire may still be hot!
2. Loosen the Cap Set Screw using a 3/32" hex tool – do not remove screw!
3. Remove the Cap. Holding the Body and twisting the Cap while removing
reduces the risk of damaging the O-Ring.
4. Inspect O-Ring for damage. Replace if necessary.
5. Unthread lamp from Socket and remove. Caution! Lamp may still be
hot! Be sure lamp has cooled before touching.
6. Inspect Socket for any damage.
7. Clean inside of fixture and Cap with a clean dry cloth.
8. Thread new lamp in to Socket. Note: Replacement lamp must not exceed
ratings of the luminaire. Read the Label inside of the luminaire body for
appropriate lamp type and ratings.
9. Install Cap on fixture by pushing and twisting slowly. If O-Ring is
Drain Hole
Stop Pin
Vertical Adjustment Screw
Horizontal Adjustment Screw
(K2 Knuckle Option Only)
(559) 834-5749
- Page 1 -

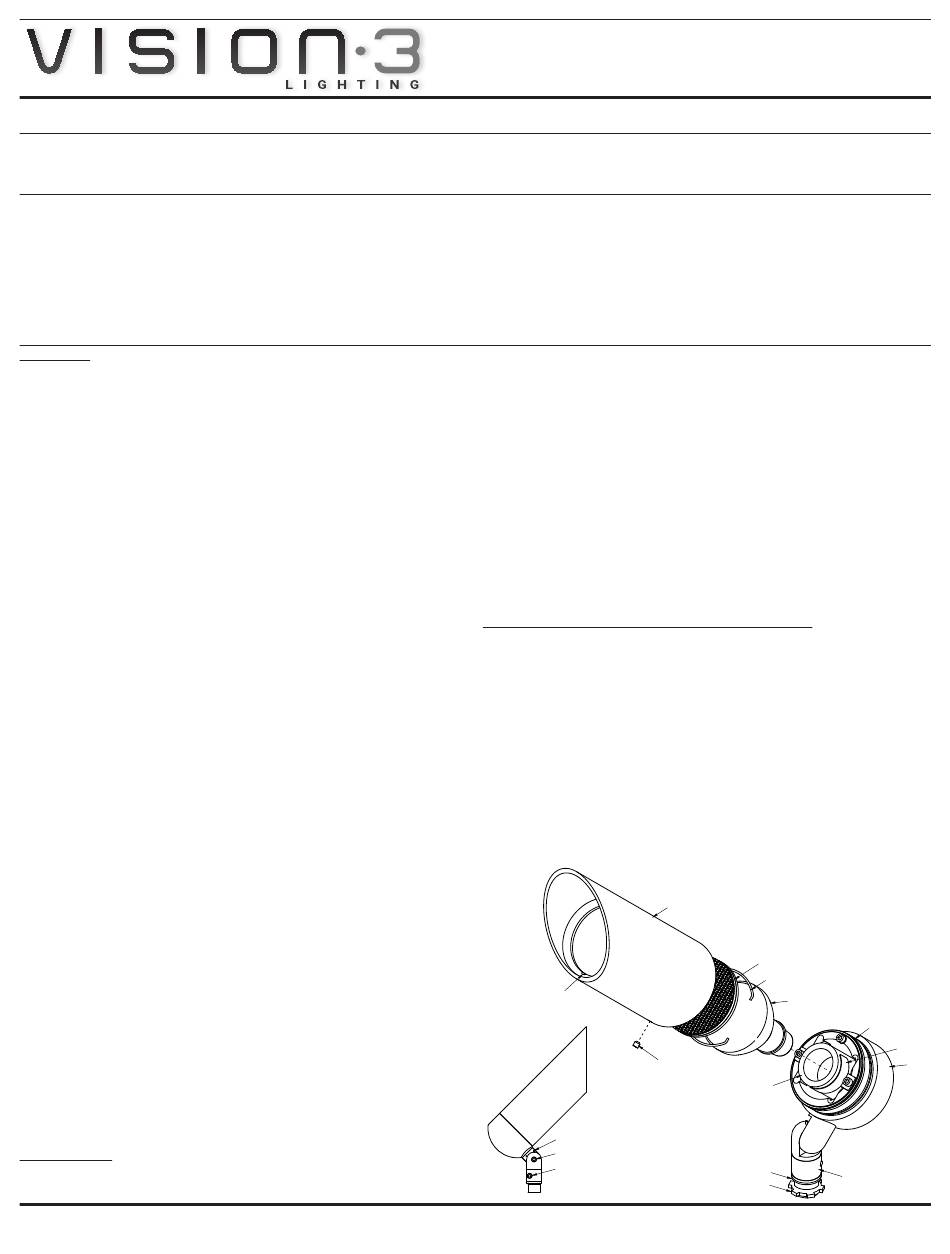

MODEL FL12
Cap
(C4 Option Shown)
Accessory Lenses
(Up to three may be used)
Accessory Clip
PAR20 Halogen Lamp
Cap Set Screw
O-ring
O-ring
Lock Nut
(559) 834-4779 fax www.vision3lighting.com
O-ring
Label
Body
Knuckle
(K2 Option Shown)
revision 12/30/19
