Instructions for Use
Color LCD monitor
Important
Please read this "Instructions for Use", and "Installation Manual"
(separate volume) carefully to familiarize yourself with safe and
effective usage.
Please retain this manual for future reference.
• For monitor adjustment and settings, refer to the "Installation
Manual".
• For the latest product information including the "Instructions for
Use", refer to our web site :
http://www.eizoglobal.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX250 and is the answer not in the manual?

Questions and answers

Related Manuals for Radiforce RX250

Summary of Contents for Radiforce RX250

  • Page 1 Instructions for Use Color LCD monitor Important Please read this “Instructions for Use”, and “Installation Manual” (separate volume) carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. • For monitor adjustment and settings, refer to the “Installation Manual”.
  • Page 2 SAFETY SYMBOLS This manual and this product use the safety symbols below. They denote critical information. Please read them carefully. WARNING CAUTION Failure to abide by the information in a Failure to abide by the information in a WARNING may result in serious injury CAUTION may result in moderate injury and/or and can be life threatening.
  • Page 3 PRECAUTIONS IMPORTANT • This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. • To personal safety and proper maintenance, please read carefully this section and the caution statements on the monitor.
  • Page 4 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, discon- nect all power connections immediately and contact your EIZO representative for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage. Do not open the cabinet or modify the unit.
  • Page 5 WARNING Handle the power cord with care. • Do not place the cord underneath the unit or other heavy objects. • Do not pull on or tie the cord. If the power cord becomes damaged, stop using it. Using of a damaged cord may result in fire or electric shock.
  • Page 6 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the power cord or cables attached is dangerous and may result in injury. Carry or place the unit according to the correct specified methods. •...
  • Page 7 Notice for this monitor Intended use This product is intended to be used in displaying and viewing digital images for review, analysis and diagnosis by trained medical practitioners. It does not support the display of mammography images for diagnosis. Caution: Federal law (USA) restricts this device to sale by or on the order of a physician. Attention •...
  • Page 8 • The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. • The screen may have defective pixels or a small number of light dots on the screen. This is due to the characteristics of the panel itself, and is not a malfunction of the product.
  • Page 9 CONTENTS PRECAUTIONS ............3 IMPORTANT .............. 3 Notice for this monitor ......... 7 CONTENTS ............. 9 Chapter 1 Introduction ........10 1-1. Features ............10 1-2. Package Contents ........11 1-3. EIZO LCD Utility Disk........11 ● Disk contents and software overview ....11 ●...

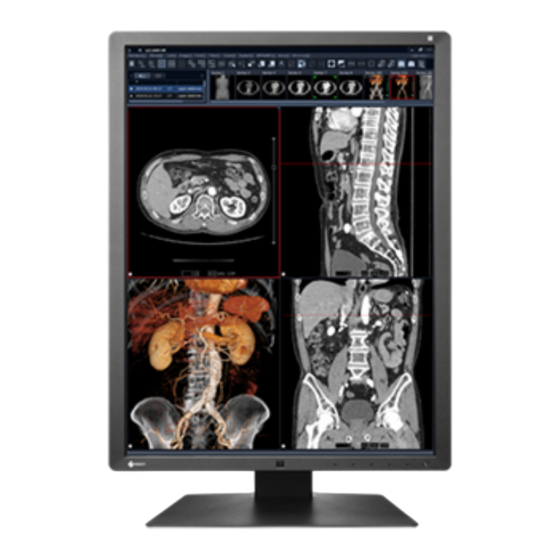

  • Page 10 Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 21.3 inches • Supports a resolution of 2M pixels (Portrait: 1200 × 1600 dots (H × V)) • Uses high-contrast panel (1400 : 1). Enables the display of sharp images.
  • Page 11 1-2. Package Contents Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local EIZO representative. Note • Please keep the packaging box and materials for future movement or transport of the monitor. •...
  • Page 12 1-4. Controls and Functions Approx. 30˚ Adjustment menu*1 1. Integrated Front Sensor Detects the movement of a person in front of the monitor. (Mobile) 2. Ambient Light Sensor Measures the environmental illumination. 3. Presence Sensor Detects the movement of a person in front of the monitor. 4.
  • Page 13 1-5. Compatible Resolutions The monitor supports the following resolutions. √ : Supported DisplayPort vertical scan Resolution frequency Portrait Landscape Portrait Landscape 720 × 400 70 Hz √ √ √ √ 640 × 480 60 Hz √ √ √ √ 800 × 600 60 Hz √...
  • Page 14 Chapter 2 Connection 2-1. Connecting Cables Attention • Check that the monitor and the PC are powered off. • When replacing the current monitor with this monitor, refer to “1-5. Compatible Resolutions” (page 13) to change the PC settings for resolution and vertical scan frequency to those that are available for this monitor, before connecting the PC.
  • Page 15 Connecting to multiple PCs For information on how to switch the input signals, refer to the Setup manual (on the CD-ROM). Signal cable : DD300 Signal cable : PP300 Daisy-chaining multiple monitors Attention • Visit the EIZO website for information about monitors and graphic boards that can be used for the daisy-chain connection: http://www.eizoglobal.com •...
  • Page 16 Plug the power cord into a power outlet and the power connector on the monitor. Connect the USB cable when using RadiCS LE. For information about the connection to the USB upstream port, refer to “2-2. Making Use of USB (Universal Serial Bus)”...
  • Page 17 ● Connection procedure (Setup of USB function) 1. Connect the monitor first to a PC using the signal cable, and run the PC. 2. Connect the supplied USB cable between the USB downstream port of a USB compatible PC (or another USB hub) and the monitor’s USB upstream port.
  • Page 18 Chapter 3 Setting Up 3-1. Adjusting the Screen Height and Angle Hold left and right edge of the monitor with both hands, and adjust the screen height, tilt and swivel of the screen to the best condition for working. Attention •...
  • Page 19 3-2. Attaching Arm An optional arm (or an optional stand) can be attached by removing the stand section. For supported optional arms (or optional stands), refer to the EIZO website: http://www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of their User’s Manual. •...
  • Page 20 Chapter 4 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local EIZO representative. Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light. •...
  • Page 21 Chapter 5 Specifications 5-1. Specifications List LCD Panel Type RX250 IPS (Anti-Glare) RX250-AR IPS (Anti-reflection) Backlight Size 54.0 cm (21.3 inch) Resolution 2M pixels (Portrait orientation: 1200 dots × 1600 lines (H × V)) Display Size (H x V) 324.0 mm × 432.0 mm (Portrait orientation) Pixel Pitch 0.270 mm...
  • Page 22 Transportation/ Temperature -20˚C to 60˚C (32˚F to 95˚F) Storage Humidity 10% to 90% R.H. (no condensation) Environmental Air pressure 200 hPa to 1060 hPa Requirements 5-2. Main Default Settings CAL Switch Mode: The factory default display setting is DICOM mode. Mode Brightness Temperature...
  • Page 23 5-3. Dimensions Unit: mm (267) (17.7) (17.7) 325.6 (130.5) (130.5) 4xM4 32.5 5-4. Accessories Calibration Kit EIZO “RadiCS UX1” Ver. 4.4.2 or later EIZO “RadiCS Version Up Kit” Ver. 4.4.2 or later Network QC Management Software EIZO “RadiNET Pro” Ver. 4.4.2 or later EIZO “RadiNET Pro Lite”...
  • Page 24 Chapter 6 Glossary Daisy-chain connection A method of connecting two or more monitors to a PC in a daisy-chain. DDC (Display Data Channel) VESA provides the standardization for the interactive communication of the setting information, etc. between a PC and the monitor. DICOM (Digital Imaging and Communication in Medicine) The DICOM standard was developed by the American College of Radiology and the National Electrical Manufacturer’s Association of the USA.
  • Page 25 sRGB (Standard RGB) International standard for color reproduction and color space among peripheral devices (such as monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet, colors can be displayed using tones close to those of the transmission and reception devices. Temperature Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin.
  • Page 26 Firefox is a registered trademark of the Mozilla Foundation. Kensington and MicroSaver are registered trademarks of ACCO Brands Corporation. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.
  • Page 27 License / Copyright A round gothic bold bit map font designed by Ricoh is used for the characters displayed on this product. Medical Standard • It shall be assured that the final system is in compliance to IEC60601-1-1 requirement. • Power supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor.
  • Page 28 The RadiForce series should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the equipment or system should be observed to verify normal opera- tion in the configuration in which it will be used.
  • Page 29 Technical Descriptions Electromagnetic emissions The RadiForce series is intended for use in the electromagnetic environment specified below. The customer or the user of the RadiForce series should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment - Guidance...
  • Page 30 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the RadiForce series is used exceeds the applicable RF compliance level above, the RadiForce series should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the RadiForce series.
  • Page 31 The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series.
  • Page 32 The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. For other portable and mobile RF communication equipments (transmitters), minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series as recommended below, according to the maximum output power of the communications equipment.
  • Page 33 Trade name: EIZO Model: RadiForce RX250 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 Declaration of compliance with India RoHS We, EIZO Corporation, hereby declare and guarantee that this product has been designed and manufactured in compliance with the E-Waste management rule 2016 which prohibit the inclusion of the following substances except for the exemptions listed in schedule II. - Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls or Polybrominated Diphenyl Ethers exceeding a concentration of 0.1% by weight in homogeneous materials - Cadmium exceeding a concentration of 0.01% by weight in homogeneous materials...
  • Page 35 Recycling Information/Informationen zum Thema Recycling/ Informations sur le recyclage/Сведения по утилизации Recycling Information This product, when disposed of, is supposed to be collected and recycled according to your country’s legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an affi liate in your country.
  • Page 36 Πληροφορίες ανακύκλωσης Το προϊόν αυτό, όταν απορρίπτεται, πρέπει να συλλέγεται και να ανακυκλώνεται σύμφωνα με τη νομοθεσία της χώρας σας έτσι ώστε να μην επιβαρύνει το περιβάλλον. Για να απορρίψετε το προϊόν, επικοινωνήστε με έναν αντιπρόσωπο ή μια θυγατρική εταιρεία στη χώρα σας. Οι...
  • Page 37 Informace o recyklaci Při likvidaci produktu musí být produkt vyzvednut a recyklován podle zákonů příslušné země, aby nedocházelo k zatěžování životního prostředí. Zbavujete-li se produktu, kontaktujte distributora nebo pobočku ve své zemi. Kontaktní adresy jsou uvedeny na následující webové stránce společnosti EIZO. http://www.eizoglobal.com Ringlussevõtu alane teave Keskkonnakoormuse vähendamiseks tuleks kasutatud tooted kokku koguda ja võtta ringlusse vastavalt teie...
  • Page 38 Информация относно рециклиране При изхвърлянето на този продукт се предлага събирането и рециклирането му съобразно законите на вашата страна за да се намали замърсяването на околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за...
  • Page 39 1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire, SL5 9FE, UK Moosacherstrasse 6, Au, CH-8820 Wädenswil, Switzerland 00N0L952H1 www.eizoglobal.com IFU-RX250-5 Copyright © 2017 - 2022 EIZO Corporation. All rights reserved. 8th Edition - March 10th, 2022 Printed in Japan.
