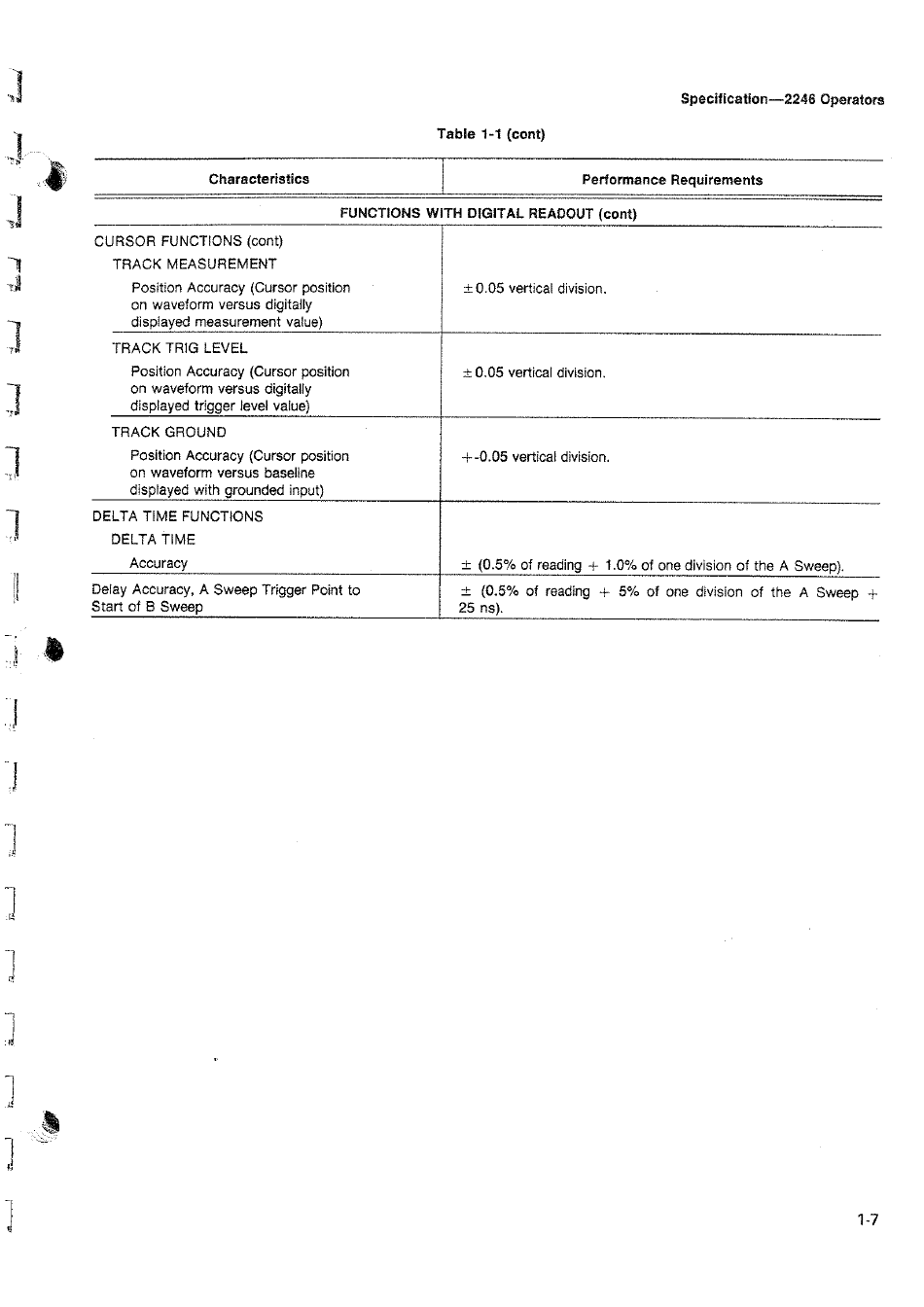

Tabie 1-1 (cont)
Performance Requirements
FUNCTIONS WITH DIGITAL READOUT (cont)
CURSOR FUNCTIONS (cont)
TRACK MEASUREMENT
Position Accuracy (Cursor position
on waveform versus digitally
displayed measurement value)
+ 0.05 vertical division.
TRACK TRIG LEVEL
Position Accuracy (Cursor position
on waveform versus digitally
displayed trigger level value}
+£0.05 vertical division.
TRACK GROUND
Position Accuracy (Cursor position
on waveform versus baseline
displayed with grounded input)
DELTA TIME FUNCTIONS
Accuracy
Delay Accuracy, A Sweep Trigger Point to
Start of B Sweep
25 ns).
