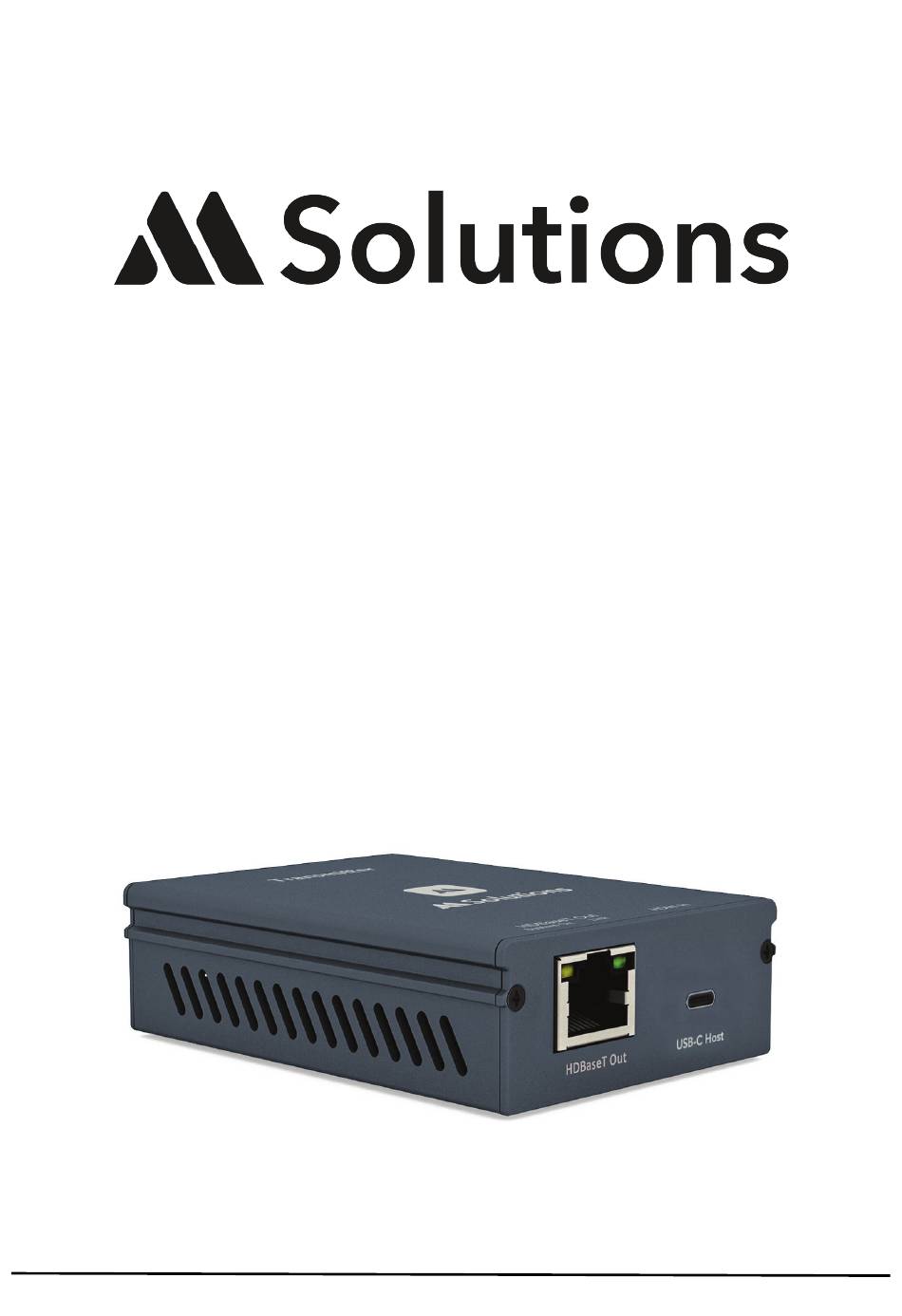

- Page 1 User Guide MS-63U1C-XR USB-C Extender Set - up to 100m. for extending USB 3.2 Gen 1 Revision: 1.0 - July 2024...
- Page 2 Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty. • MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this, physical representations or graphical elements contained within this user guide may not be accurate.
- Page 3 MS-63U1C-XR USER GUIDE Introduction The MSolutions MS-63U1C-XR is a USB 3.2 Gen 1 USB-C extender allowing for a single USB-C data channel to be extended to distances of up to 100m over a single CATx cable infrastructure. The extender features RS-232 serial pass-through, which expands the capabilities of this extender kit for a variety of commercial uses.
- Page 4 MS-63U1C-XR USER GUIDE Connectivity Overview - Device Front panel: • CATx Link - connect to Cat cable from receiver • USB-C - connect USB-C peripheral Back panel: • Control - Micro USB for firmware and control (reserved for future use) •...
- Page 5 MS-63U1C-XR USER GUIDE Understanding the LED’s This MSolutions extender set includes status LED indicators on both the Host and Device products to show active connections and to further help integrators diagnose potential problems with the associated cabling. The RJ45 Link connections on both the host and device units have orange and green LED’s.
- Page 6 RS-232 Control The MS-63U1C-XR can distribute bi-directional serial commands between the transmitter and receiver to allow for control commands to be sent alongside USB. Each unit is fitted with a 3-pin phoenix connector block that will need the serial TX, RX and Ground pins terminating into for serial pass-through.
- Page 7 MS-63U1C-XR USER GUIDE Specifications Device Host • USB-C connectivity: 1 x USB-C (female • USB-C connectivity: peripheral 1 x USB-C (female) - host • USB control: 1 x Micro USB (female) • USB control: 1 x Micro USB (female) •...
- Page 8 MS-63U1C-XR USER GUIDE Schematic...
- Page 9 www.m4sol.com...
