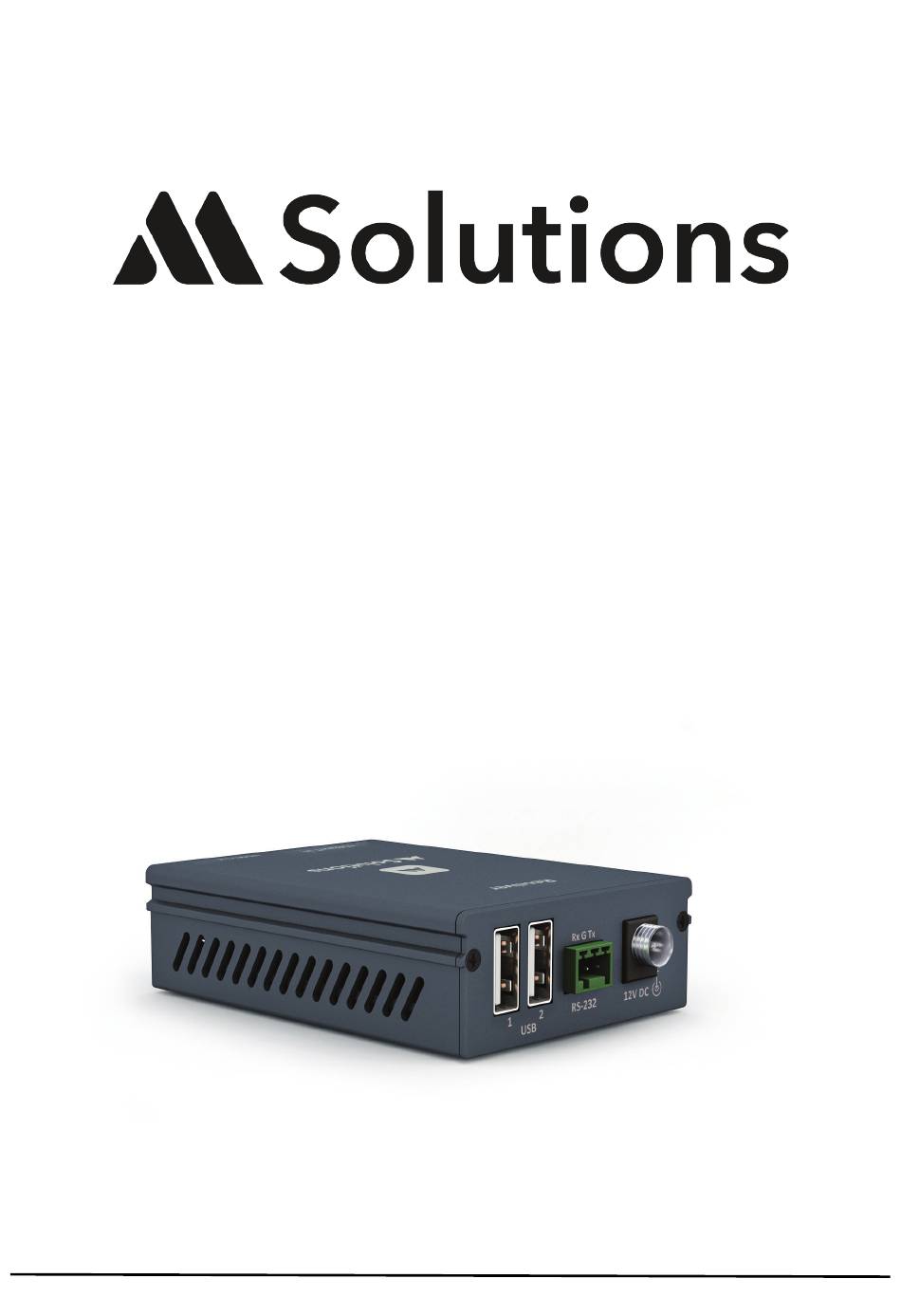

- Page 1 User Guide MS-210U2R HDBaseT™ Extender Set - 4K to 40m (10G), 70m @ 1080p. USB 2.0 (x2) & RS-232 pass through. HDCP2.2 compliant Revision: 1.2 - Feb 2021...
-
Page 2: Table Of Contents
Dolby is a trademark of Dolby Laboratories. • MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this, physical representations or graphical elements contained within this user guide may not be accurate. -
Page 3: Introduction 03
MS-210U2R USER GUIDE Introduction The MSolutions MS-210U2R is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. A 2 port USB2.0 channel allows for bi-directional USB client to host connectivity for a variety of applications. -
Page 4: Connectivity Overview (Tx And Rx) 04
MS-210U2R USER GUIDE Connectivity Overview - TX Front panel: • Power - connect to supplied 12V/2A power supply • RS-232 - use supplied 3-pin phoenix connector to connect to serial device • USB Host - connect to USB host device Rear panel: •... -
Page 5: Understanding The Led's
When installing Cat cables it is advised that the best possible Cat cable quality possible is used. HDMI distribution products will only work if used with Cat5e standard cable or above. MSolutions recommends using a Cat6 (or higher) cable for installations, especially when running over longer distances, in areas of high EMI, or with 4K signal distribution. -
Page 6: Usb 06
USB2.0 cameras to pass higher video resolutions. RS-232 Control The MS-210U2R can distribute bi-directional serial commands between the transmitter and receiver to allow for control commands to be sent alongside the video and audio distribution. Each HDBaseT unit is fitted with a 3-pin phoenix connector block that will need the serial TX, RX and Ground pins terminating into for serial pass-through. - Page 7 MS-210U2R USER GUIDE Specifications Transmitter Receiver • Video connectivity: 1 x HDMI input (female), • Video connectivity: 1 x HDBaseT input (RJ45 1 x HDBaseT output (RJ45 keystone) keystone), 1 x HDMI output (female) • USB connectivity: 1 x USB type B (female) •...
-
Page 8: Schematic 08
MS-210U2R USER GUIDE Schematic... - Page 9 www.m4sol.com...
