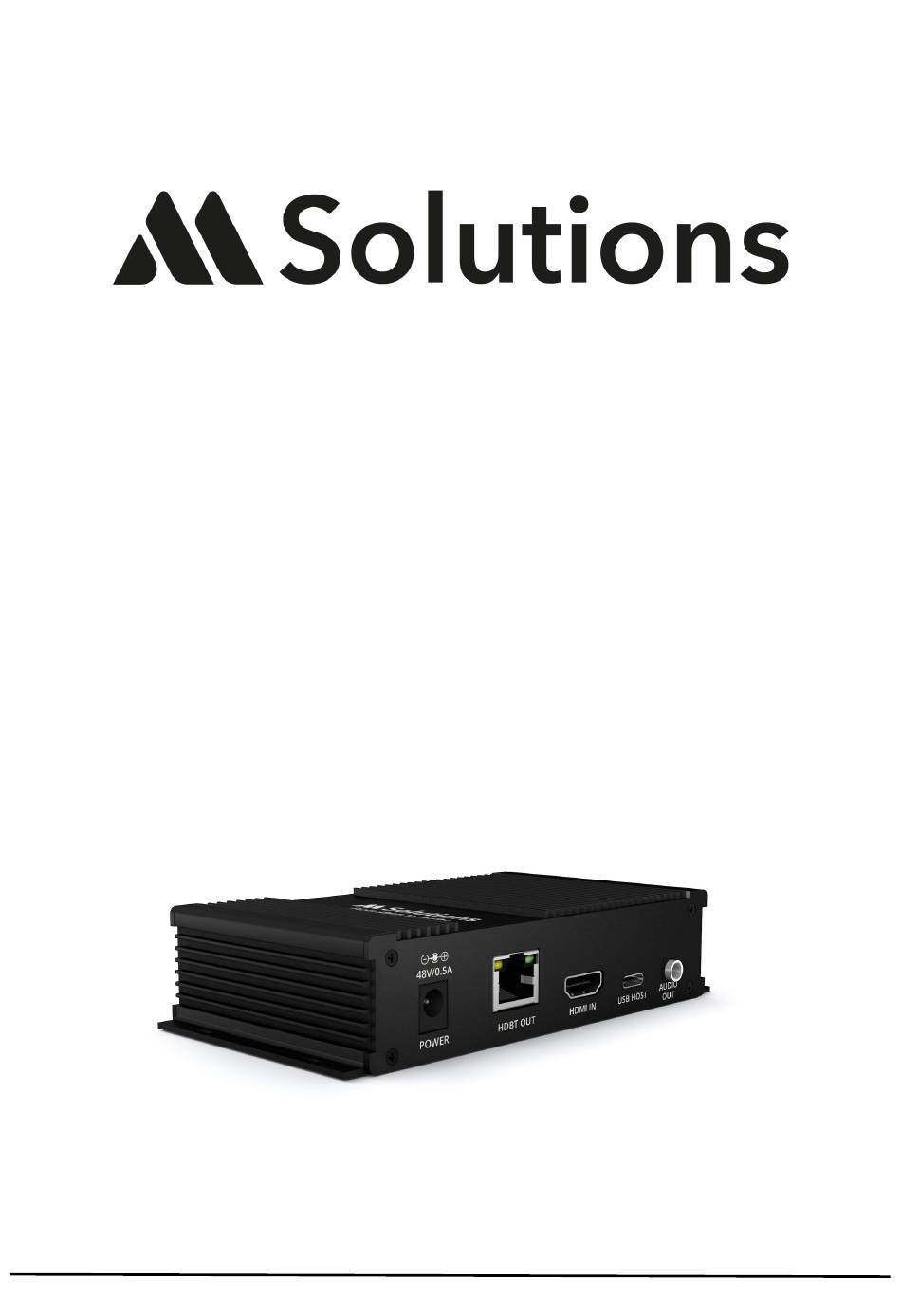

- Page 1 User Guide MS-210U4P HDBaseT™ Extender Set - 4K to 40m (10G), 70m @ 1080p. PoE / PoH, USB 2.0 (x4), one-way analogue audio pass-through, RS-232 pass through, with single channel bi-directional IR. HDCP2.2 com- pliant Revision: 1.1 - Nov 2020...
-
Page 2: Table Of Contents
Dolby is a trademark of Dolby Laboratories. • MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this, physical representations or graphical elements contained within this user guide may not be accurate. -
Page 3: Introduction 03
MS-210U4P USER GUIDE Introduction The MSolutions MS-210U4P is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. 4 x independent USB2.0 channels allow for bi-directional USB client to host connectivity for connectivity of various peripherals in a variety of commercial applications. -
Page 4: Connectivity Overview (Tx And Rx) 04
MS-210U4P USER GUIDE Connectivity Overview - TX Front panel: • Power - connect to supplied 48V/0.5A power supply • HDBaseT Out - connect to Cat cable to receiver • HDMI In - connect to HDMI source • USB Host - connect to USB host device •... -
Page 5: Understanding The Led's
Cat and HDMI cables can be used for video signal distribution. Audio The MS-210U4P allows for an independent analogue audio signal to be run from RX to TX using the 3.5mm jack connections. These connections do not embed or de-embed audio from the HDMI... -
Page 6: Usb 06
The MS-210U4P is supplied with a single 5V IR transmitter that can be connected to either of the 3.5mm jack sockets on the transmitter or receiver to the labelled ‘IR’ port. The 5V IR Receiver is then connected to the 3.5mm jack socket labelled ‘IR’... - Page 7 MS-210U4P USER GUIDE Specifications Transmitter Receiver • Video connectivity: 1x HDMI input (female), • Video connectivity: 1x HDBaseT input (RJ45 1x HDBaseT output (RJ45 keystone) keystone), 1x HDMI output (female) • Analogue audio connectivity: 1x analogue • Analogue audio connectivity: 1x analogue audio output - 3.5mm jack (female)
-
Page 8: Schematic 08
MS-210U4P USER GUIDE Schematic... - Page 9 www.m4sol.com...
