Summary of Contents for Philips AC4006

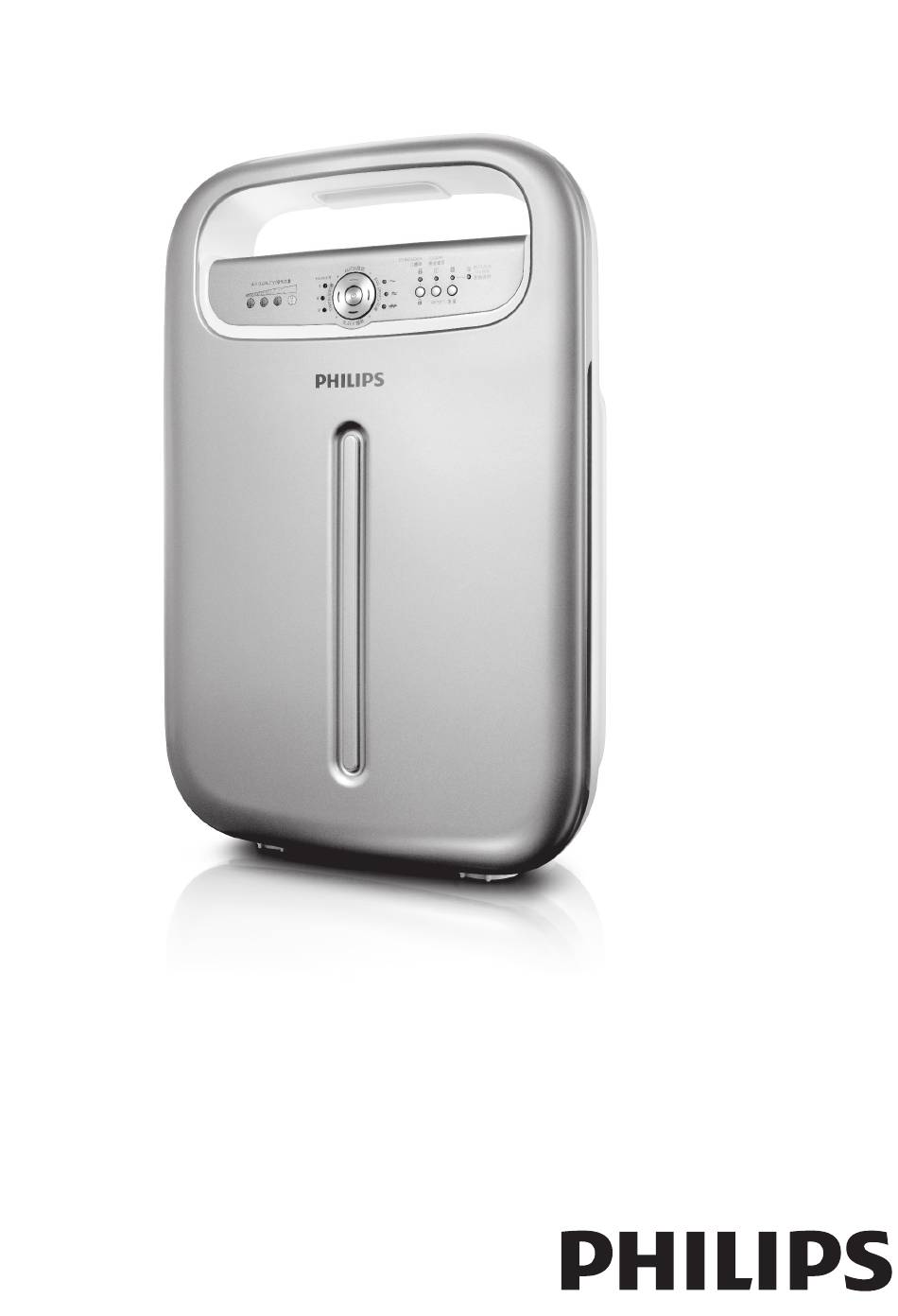

- Page 1 Register your product and get support at www.philips.com/welcome AC4006 User manual...
- Page 3 EnGLISH...
- Page 4 English Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. With this New home air purifier, you breathe cleaner air in your new or newly decorated home. For the best result, place the New home air purifier in a room where you spend most of your time, e.g.
- Page 5 - If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
- Page 6 - Make sure all filters are properly installed before you switch on the appliance. - Only use the original Philips filters specially intended for this appliance. Do not use any other filters. - Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.
- Page 7 (CO) or radon (Rn). It cannot be used as a safety device in case of accidents with combustion processes and hazardous chemicals. Electromagnetic fields (EMF) This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields. Before first use Placing the filters The appliance comes with all filters fitted inside, but you have to remove the packaging of the filters before you can use the appliance.
- Page 8 English Place your fingers in the recesses of the side panels and gently pull the bottom of the front panel towards you. Then lift the hooks at the top of the panel out of the top of the appliance. To remove the pre-filter, grab the two projections and pull the filter towards you. Remove the filter from the appliance. Take out the new filter from the packaging material. Put filter 2 (New home filter) back into the appliance. Note: Make sure that the side with the tag points towards you.
- Page 9 EnGLISH Place filter 1 (pre-filter) in the appliance. Note: Make sure that the side with the two projections points towards you. Note: Make sure that all hooks are properly attached to the appliance. To reattach the front panel, insert the two hooks into the top of the appliance first (1). Then push the panel against the body of the appliance (2). Using the appliance Put the plug in the wall socket All lights go on and off twice and you hear a beep. Press the on/off button to switch on the appliance. The power-on light and one of the AIR QUALITY lights on the control panel goes on. Colour Air quality Blue...
- Page 10 English The appliance automatically starts operating in the auto mode. To switch off the appliance, press the on/off button again and unplug the appliance. Note: When the humidity level in the room is very high, it is possible that condensation develops on the air quality sensor. As a result, the AIR QUALITY lights on the control panel may indicate that the air quality is bad even though the air quality is good.
- Page 11 EnGLISH Press the on/off button to switch on the appliance. Press the FAN SPEED button one or more times to select the desired fan speed. The corresponding FAN SPEED light shows the set fan speed. Timer function With the timer function, you can let the appliance operate for a set number of hours. When the set time has elapsed, the appliance automatically switches off. You can use the timer function in a number of situations: In combination with the AUTO mode (see section ‘Auto mode’...
- Page 12 English Sleep mode When you use the appliance in sleep mode, it operates very quietly and all the lights that are on are dimmed, to allow you to sleep undisturbed. Note: When you use the sleep mode, you can also use the timer function (see section ‘Timer function in this chapter).
- Page 13 EnGLISH Press the TIMER button to adjust the sensitivity level of the air quality sensor. One of the HOUR lights flashes to show the set sensitivity level of the air quality sensor. Press the on/off button to switch off the appliance. Note: When you change the sensitivity level, the appliance automatically starts operating at the set sensitivity level whenever you switch on the appliance. Child lock To prevent small children from operating the air operating air purifier, you can set the child lock function.
- Page 14 English Pre-filter The pre-filter is washable. Clean the pre-filter when the filter cleaning light flashes to ensure optimal functioning of the appliance. Unplug the appliance. Place your fingers in the recesses of the side panels and gently pull the bottom of the front panel towards you. Then lift the hooks at the top of the panel out of the top of the appliance. To remove the pre-filter, grab the two projections and pull the filter towards you. Wash the pre-filter under a running tap. If the pre-filter is very dirty, use a soft brush to brush away the dirt. Tip: Alternatively, you can clean the pre-filter by removing the dust with a vacuum cleaner.
- Page 15 EnGLISH Press and hold the reset button for filter 1 (the button below the filter cleaning light) for 2 seconds to reset the appliance. Air quality sensor Clean the air quality sensor every 2 months for optimal functioning of the appliance. Clean it more frequently if you use the appliance in a dusty environment. Note: When the humidity level in the room is very high, it is possible that condensation develops on the air quality sensor.
- Page 16 English Filter replacement Filter maintenance When one of the filters is almost full and has to be cleaned or replaced, the corresponding light or lights (the pre-filter cleaning light or one of the filter replacement lights together with the ‘REPLACE FILTER’ light) start to flash.
- Page 17 EnGLISH Check which filter needs to be replaced (see section ‘Filter cleaning light and filter replacement lights’ above). Switch off the appliance and unplug it. Replace the appropriate filter (see section ‘Replacing the filters and resetting the appliance’ below). Replacing the filters and resetting the appliance Tip: Place the appliance against a wall for more stability when you remove or insert filters. Switch off the appliance and unplug it. Place your fingers in the recesses of the side panels and gently pull the bottom part of the front panel towards you. Then lift the hooks at the top of the panel out of the top of the appliance. To remove filter 1 (pre-filter), grab the two projections and pull the filter towards you. To remove filter 2 (New home filter), grab its tag and pull it towards you. Discard the filter that has to be replaced and unpack the new filter. Put filter 2 (New home filter) back into the appliance. Note: Make sure that the side with the tag points towards you.
- Page 18 English Put filter 1 (pre-filter) back into the appliance. Note: Make sure that the side with the two projections points towards you. Note: Make sure that all hooks are properly attached to the appliance. To reattach the front panel, insert the two hooks into the top of the appliance first (1). Then push the panel against the body of the appliance (2). Put the plug in the wall socket and switch on the appliance again. Press and hold the reset button below the filter replacement light of the filter you have replaced to reset the appliance. Press and hold the reset button for filter 2 for 2 seconds if you have replaced filter 2 (New home filter).
- Page 19 EnGLISH Guarantee and service If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet).
- Page 20 If there is no Consumer lights are out. Care Centre in your country, go to your local Philips dealer. All function buttons are Perhaps you activated the child lock function. Press the child lock button to not responding.
- Page 21 请妥善保管本用户手册...
- Page 22 © 2013 Koninklijke Philips N.V. All rights reserved. 3140 035 26564...
