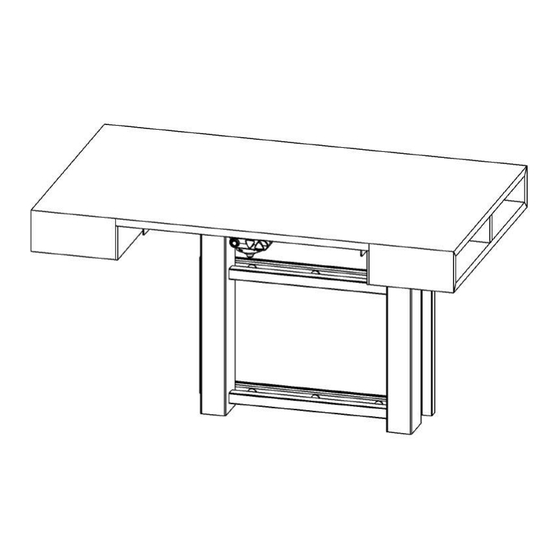

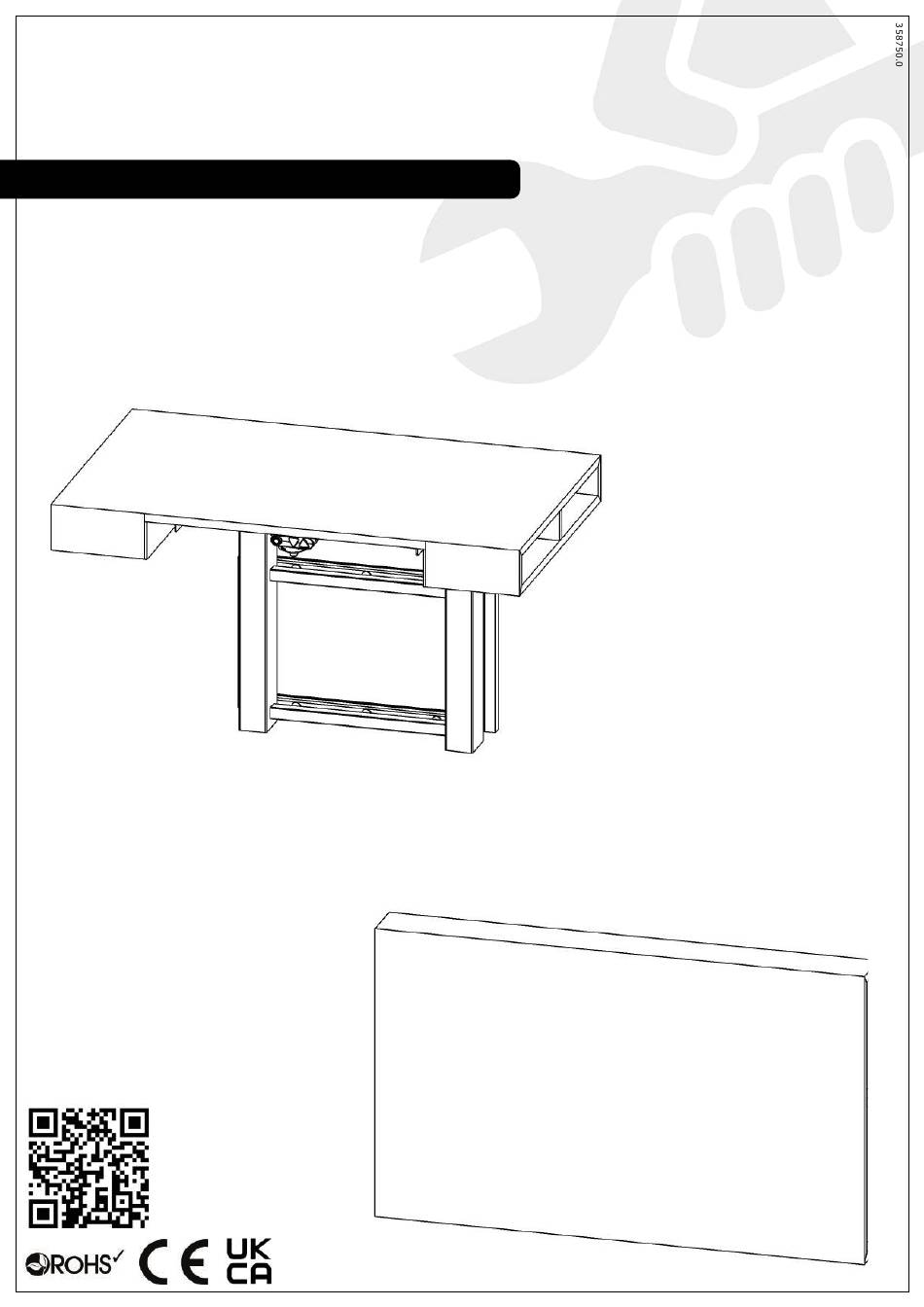

- Page 1 Original Wall EN - Assembly Instruction and User Manual (Page 2) Video...
- Page 2 TABLE OF CONTENTS 1. Safety and warnings 2. Usage IMPORTANT NOTES! 3. Set up and installation Prior to installment, use and 4. Operation maintenance of the table frame, any 5. Maintenance and defects installer and any user of the table must study this assembly and operation 6.
- Page 3 With reference to the above please be aware that: the sit and stand table is considered a machine and the sit and stand table may not be used until it has been assembled and installed according to the instructions. Manufacturer ConSet A/S | Industrivej 23 | 6900 Skjern | Denmark | www.conset.com | Tlf.: +45 96800080 | conset@conset.com...
- Page 4 1. Parts Wall mounting bracket Control panel Desk Frame Wirenail Screw 5x16mm Power cord Power supply Power supply bracket DC extender wire Zip tie Cable tie Screw 3x16mm...
- Page 5 2. Assembly Instruction and User Manual Fold desk up Fold desk Just fold the frame up by hand and it will automatically stay up once it is perpendicular to the tabletop. Once the automatic trigger is activated there will be a click sound.
- Page 6 Wiring (1/3) Make sure the wires are not in the way of folding movement - Test the wiring by folding desk down and up before adding wire nails. See page 5 step 1 for folding instructions. Wiring(2/3) Connect the black plug to the motor then fold the desk down.
- Page 7 When the bracket is placed 89mm from the floor, the top of the desk is 720mm in the lowest position. The person mounting the bracket must choose screws etc. that suit the condition of the wall! Screws etc. are not included.
- Page 8 Mount desk frame on wall bracket MIND THE WIRES! Press down on the desk and make sure it is completely down into the bracket! Some force is necessary! Wiring(3/3) Use the extender wire (I) to connect the red wire and power supply. When the two are connected elevate the desk to maximum height.
- Page 9 If the desk is not perfectly level after mounting it can be adjusted with the highlighted 4 screws. Just loosen the screws and lift the tabletop untill it is level - then tighten the screws again. Fixing the desk frame to wall bracket. Fix the desk frame to the wall bracket using 2 zipties.
