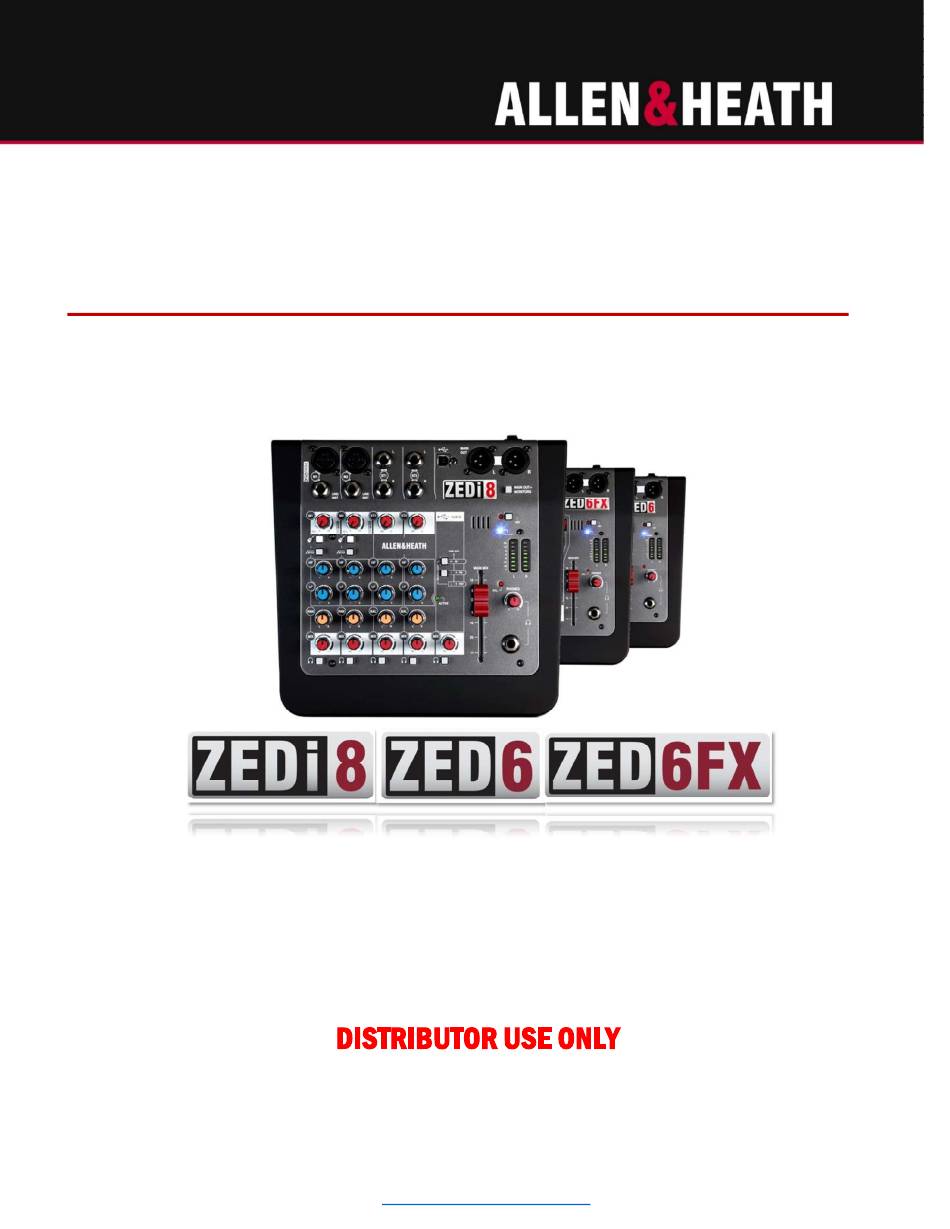

- Page 1 ZEDi-8 ZED-6/6FX SERVICE MANUAL ISSUE 1.1 Copyright © 2022 Allen & Heath. All rights reserved . ALLEN&HEATH Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK https://www.allen-heath.com...
- Page 2 Hot Melt Glue ................................. 12 Jumper Assignments ..............................12 PSU Circuit Diagram ..............................12 Other Technical Information ............................13 Block Diagram ................................. 14 Specifications ................................14 Weights & Dimensions ............................14 Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 3 Heed the important mains plug wiring instructions in the Safety Instructions sheet. Always replace the equipment mains fuse with the correct type and rating as marked on the equipment panel. Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 4 Never reverse the battery polarity when installing. Do not short the batteries. Do not attempt to recharge batteries. Do not disassemble the batteries. Never heat batteries or throw them into fire. Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 5 Part Number Description AN10072 BOX+FIT ZEDI 8 AN10001 BOX+FIT ZED 6FX AN9999 BOX+FIT ZED 6 AL8923 SW.MAINS ROCK.H8600VBAAA AN10089 LABEL ZED-6FX AN10088 LABEL ZED-6 AN10090 LABEL ZEDI-8 AK12035 FEET RUBBER 16DIA.X0.5MM Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 6 PUSH BTN SQ WHT 5.5MM Cables Part Number Description AL10009 WFM IDC ZED 6FX/I8 MAIN AL10209 WFMA ZEDI 8 USB INTERFACE AL10008 WFM IDC ZED 6 MAIN AH8752 CABLE USB A-B 2M FERR Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 7 Parts Identification Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 8 Parts Identification Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 9 Parts Identification Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 10 Circuit Board Layout Circuit Board Layout Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 11 Circuit Board Identification Circuit Board Identification 004-653 PCBA ZED 6/I8 MONO INPUT 004-654 PCBA ZED 6/I8 STEREO INPU 004-657 PCBA ZED 6FX MONO INPUT 004-658 PCBA ZED 6FX STEREO INPUT Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 12 Circuit Board Identification 004-659 PCBA ZED 6FX EFFECTS 004-679 PCBA ZEDI 8 USB INTERFACE 004-655 PCBA ZED 6 MASTER 004-660 PCBA ZEDI 8 MASTER 004-662 PCBA ZED METER Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 13 M1-M2 USB routing - pre/post EQ options Pre EQ - R50 with 33R (0805) fitted, R51 not fitted (defualt) Post EQ - R51 with 33R (0805) fitted, R50 not fitted PSU Circuit Diagram Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 14 For the full PDF of this circuit including overlay, please download a copy from the A&H resource space. You will need your distributor/partner login to access the link below. Click here Other Technical Information Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
- Page 15 All of this information is available to end users and can be found at the following location. https://www.allen-heath.com/hardware/zed-series/zed-compact/zed-6/resources/ https://www.allen-heath.com/hardware/zed-series/zed-compact/zed-6fx/resources/ https://www.allen-heath.com/hardware/zed-series/zedi-compact/zedi-8/resources/ For further information please contact Allen&Heath Product Support https://support.allen-heath.com support@allen-heath.com Allen & Heath Ltd ZEDi-8 ZED-6/6FX - Service Manual v1.1...
