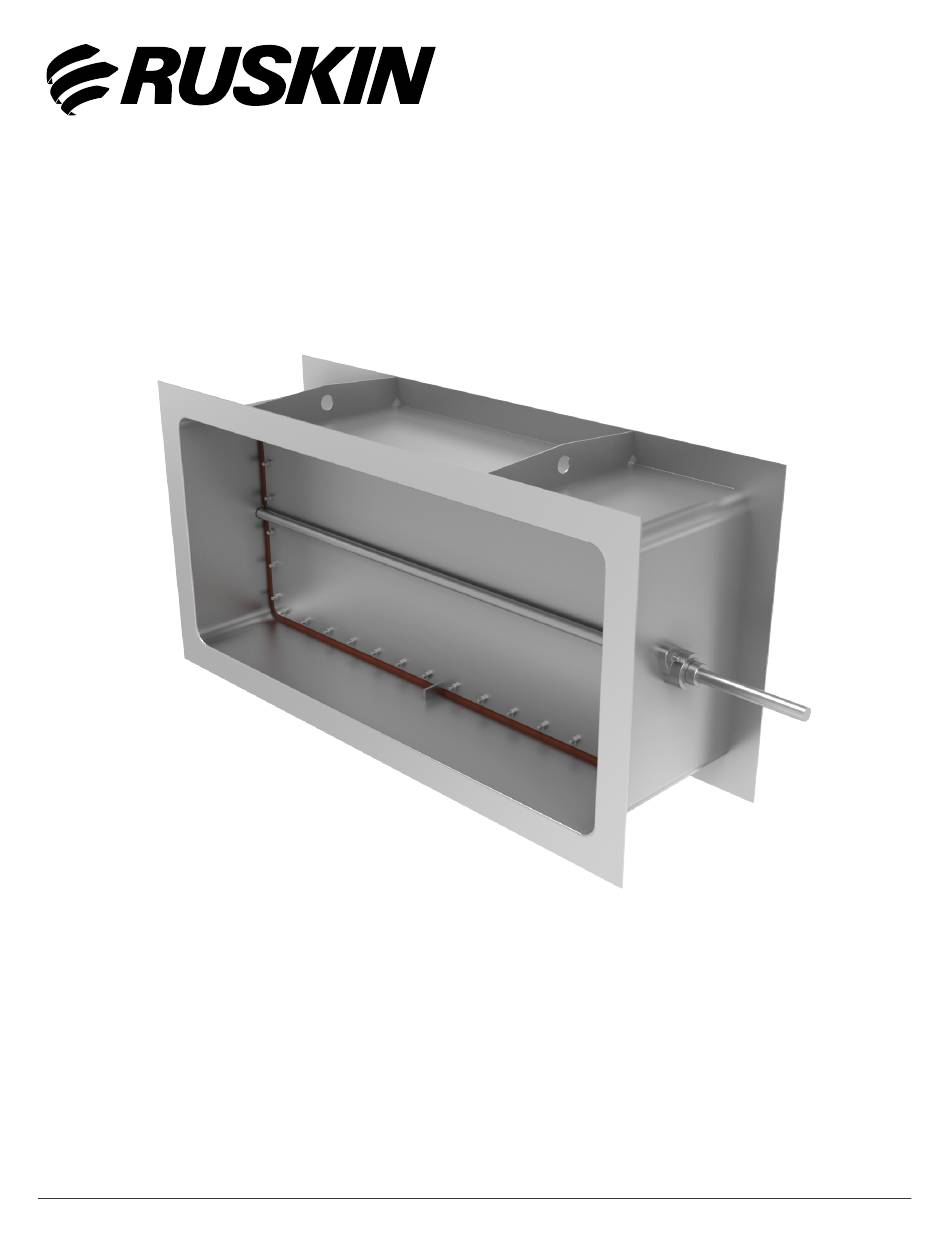

- Page 1 Maintenance Manual Model: BTD830 Bubble Tight Isolation Damper Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 1...
- Page 2 Part 2, Section 1 of this instruction will provide guidance for bearing and seal maintenance. Part 2, Section 2 of this instruction will provide guidance for the replacement of the blade seal. Parts may be purchased from your Ruskin Representative or by calling Ruskin @ 1(816)761-7476 and following the appropriate prompts. PART 1...
- Page 3 Using a drive punch and hammer, remove drive pin from coupling completely and remove coupler from axle. (See figure 2.1.1.D). Actuator Coupler Coupler drive pin Figure 2.1.1.D Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 3...
- Page 4 Clean surface with Isopropyl Alcohol afterward and allow to air dry. Damper Figure 2.4.1.A Figure 2.4.1.B Actuator not shown for clarity. Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 4...
- Page 5 Align bearing to the inner most race of the bearing housing. b. Using a press with appropriately sized arbor, slowly press bearing into housing until fully seated. Bearing Housing Bearing Figure 2.7.1.A Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 5...
- Page 6 Emory cloth. b. Apply a thin continuous bead of RTV sealant to the back side of the bearing housing. Apply RTV Figure 2.10.1.A Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 6...
- Page 7 Cycle blade by hand to ensure smooth operation. Set Collar Thrust Washer Figure 2.11.1.A Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 7...
- Page 8 Install a NEW stainless steel shoulder bolt thru the coupler and axle. Install bolt, flat washers, Lock-nut, and tighten. Flat Washer Coupler Lock nut Figure 2.13.1.A Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 8...
- Page 9 Fail in place actuator, drive actuator to fully closed position to ensure damper blade is closed. Figure 2.13.1.A Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 9...
- Page 10 Repeat spraying with WD-40 to clean any extra sealant. iv. Clean surface with Isopropyl Alcohol afterward and allow to air dry. Seal Retainer Figure 2.2.1.1.B Manual-BTD830-0324/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin March 2024 Page 10...
- Page 11 © 2023 Ruskin Company The information provided in this manual is believed to be complete and accurate. Ruskin Manufacturing is a manufacturer and supplier of equipment and, as such, is not responsible for the manner in which its equipment is used nor for infringement of rights of third parties resulting from such use. System design is the prerogative and responsibility of the system designer.
